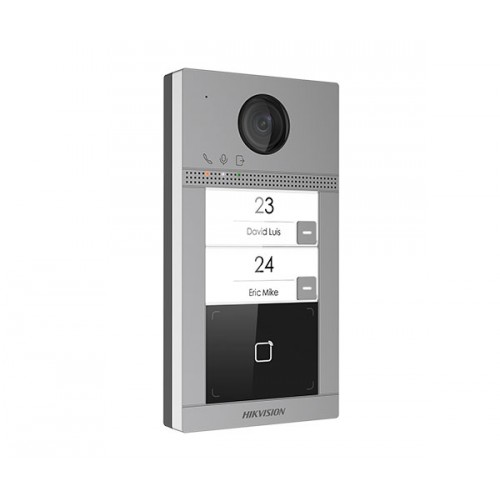

Hikvision DS-KV8213-WME1 Gen2 Intercom 2 Button ‘Villa’ Door Station (LAN / WiFi)

HikvisionĀ DS-KV8213-WME1Ā Two Button Villa Door Station.

The HIK-KV8213-WME1 is a double button, aluminium, apartment door entry solution that incorporates the sleek and modern Gen2 look. The cutting-edge feature of this door station is onboard Wi-Fi. Simply supply power to the unit and add a Wi-Fi connection to the router – then you will have a professionally installed solution.

Includes, Two Button Villa Door Station, Aluminum alloy, 2MP (1080P) extreme wide angle Camera, 10M/100M Self-adaptive Ethernet, LAN and/or WiFi, 12 VDC / 48V PoE, 1-ch Indoor station access with Mifare Card Reader.

DS-KV8113-WME1_SPECSHEET

$353.00 inc GST +3 Year Warranty & Support

HikvisionĀ DS-KV8213-WME1Ā Two Button Villa Door Station.

Includes, Two Button Villa Door Station, Aluminum alloy, 2MP (1080P) extreme wide angle Camera, 10M/100M Self-adaptive Ethernet, LAN and/or WiFi, 12 VDC / 48V PoE, 1-ch Indoor station access with Mifare Card Reader.

Key Feature

ā— Two Button to call two seperate Room Stations
ā— Standard PoE
ā— 2 MP HD camera
ā— Noise suppression and echo cancellation
ā— Low illumination
ā— Access control functions (built in Mifare Card Reader)
ā— Tamper-proof
ā— Configuration remotely via Web
ā— 2.4 GHz Wi-Fi
ā— Protection level: IP65 / IK08

Works with any Gen2 Room Stations.

WIRING REQUIREMENTS;
> ethernet cable from Door Station to Poe Switch
> ethernet cable from the indoor Monitor to Poe Switch
> ethernet cable Poe Switch to the modem (if you wish to set up remote communication)

ImageNamePriceBuy
Hikvision DS-3E1105P-EI 4 Port Smart POE Switch
Hikvision DS-3E1105P-EI 4 Port Smart POE Switch$80.00 inc GST +3 Year Warranty & Support
Hikvision DS-KH6320-TE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station
Hikvision DS-KH6320-TE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station$246.00 inc GST +3 Year Warranty & Support
Hikvision Gen2 DS-KH8520-WTE1 Video Intercom 10-Inch Touch Screen Indoor Room Station
Hikvision Gen2 DS-KH8520-WTE1 Video Intercom 10-Inch Touch Screen Indoor Room Station$541.00 inc GST +3 Year Warranty & Support

Hikvision DS-3E0310HP-E 8 Port Fast Ethernet Unmanaged POE Switch
Hikvision DS-3E0310HP-E 8 Port Fast Ethernet Unmanaged POE Switch$204.00 $260.00 inc GST +3 Year Warranty & Support
Hikvision DS-KABV8113-RS 2nd Gen Shroud to suit DS-KV8x13-WME1 Series (for Surface mount)
Hikvision DS-KABV8113-RS 2nd Gen Shroud to suit DS-KV8x13-WME1 Series (for Surface mount)$27.00 inc GST +3 Year Warranty & Support
Hikvision DS-KH8350-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station (with WiFi)
Hikvision DS-KH8350-WTE1 Gen2 Video Intercom 7-Inch Touch Screen Indoor Room Station (with WiFi)$457.00 inc GST +3 Year Warranty & Support

Hikvision DS-KABV8113-RS 2nd Gen Shroud to suit DS-KV8x13-WME1 Series (for Flush mount)
Hikvision DS-KABV8113-RS 2nd Gen Shroud to suit DS-KV8x13-WME1 Series (for Flush mount)$27.00 inc GST +3 Year Warranty & Support
System Parameters
Processor: | High-PerformanceĀ EmbeddedĀ SOCĀ Processor
Operation System: | EmbeddedĀ LinuxĀ OperationĀ System
Video Parameters
Camera: | 2Ā MPĀ HDĀ ColorfulĀ Camera
Video Compression Standard: | H.264
Resolution: | 1080P
Video frame rate: | 30 fps
Audio Parameters
Audio Input: | Built-inĀ OmnidirectionalĀ Microphone
Audio Output: | Built-inĀ Loudspeaker
Audio Compression Standard: | G.711Ā U
Audio Compression Rate: | 64Ā Kbps
Audio Quality: | NoiseĀ SuppressionĀ andĀ EchoĀ Cancellation
Network Parameters
Ethernet: | 10/100Ā MbpsĀ Self-AdaptiveĀ Ethernet
Network Protocol: | TCP/IP,Ā RTSP
Access Control Parameters
Internal Card Reader: | Built-in CardĀ Reader (Mifare)
Light Supplement
Light Supplement Mode: | IRĀ Supplement
Device Interfaces
Network Interface: | 1Ā RJ-45Ā 10/100Ā MbpsĀ Self-AdaptiveĀ EthernetĀ Interface
RS-485: | 1Ā RS-485Ā Half-DuplexĀ Port
General
Indoor Station Access Amount: | 2
Material: | AluminumĀ Alloy
Power Supply: | IEEE802.3af, standard PoE, 12VDC
Power Consumption: | ā‰¤10 W
Working Temperature: | -40Ā°Ā CĀ toĀ +53Ā°Ā C
Working Humidity: | 10%Ā toĀ 95%
IP Protection Level: | IP65, IK08
Dimensions(L Ɨ W Ɨ H): | 175 mmĀ Ć— 90Ā mmĀ Ć—Ā 30 mm
Certification: | FCC,Ā IC,Ā CE,Ā C-TICK,Ā ROHS,Ā REACH,Ā WEEE
SKU: DS-KV8213-WME1 Categories: , ,
