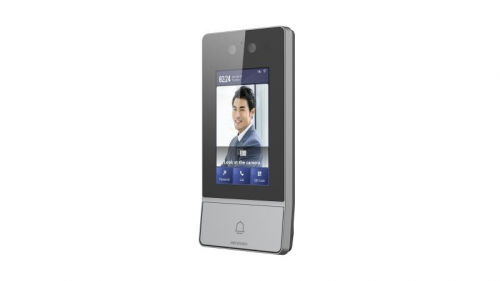

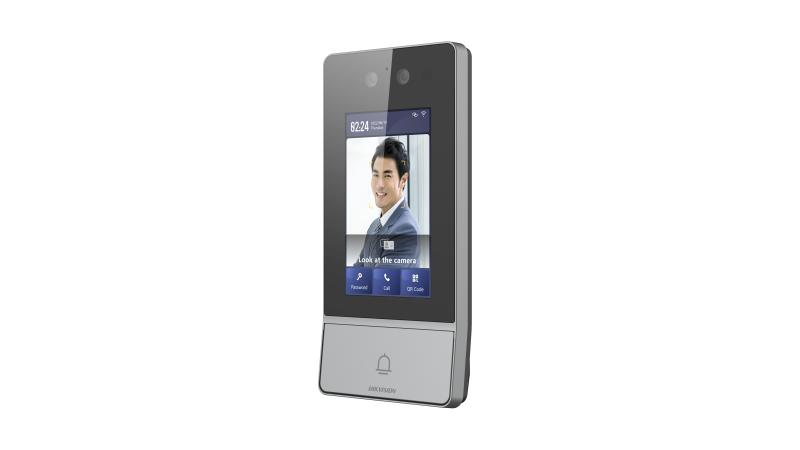

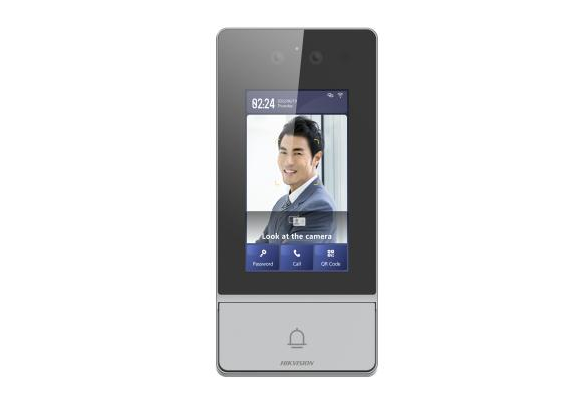

The KV9 series IP facial recognition villa door station, with a 4.3-inch high resolution touch screen, brings you a more fluent and fit operation. It supports multiple authentication modes, such as face, QR code, card, and buttons, satisfying different environments and helping to use access permissions. The villa door station is powered by the standard PoE, and is no need to wire extra power supply, which is easy for installation and deployment. With high protective level, it is suitable for high-end villa, office, high-end apartment, etc
IN FRENCH
IN POLISH
System Parameters
- Operation SystemLinux
- ROM4 GB
- RAM1 GB
- ProcessorEmbeded high performance processor
Display Parameters
- Screen Size4.3-inch
- Operation MethodCapacitive touch screen
- TypeIPS
- Resolution800 × 480
- Brightness425 cd/m²
Video Parameters
- Lens 2
- Resolution2 × 2 MP
- FOVHorizontal: 88°, Vertical: 44°
- Wide Dynamic Range (WDR)Support 120 dB
- Supplement LightIR light, up to 3 m
- Video Compression Standard
Main stream and sub stream: H.264
Third stream: H.265
Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711 U, G.711 A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
Capacity
- User Capacity20000
- Face Capacity10000
- Fingerprint Capacity/
- Card Capacity100000
- Message Capacity/
- Linked Indoor Station Capacity500
- Sub Door Station Capacity16
Network Parameters
- Network ProtocolTCP/IP, RTSP
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- BluetoothReserved
- 3G/4G/
Authentication
- Card Reading Frequency13.56 MHz
- Face Recognition Distance0.3 to 2 m
- Face Recognition Accuracy Rate≥ 99%
- Face Recognition Duration< 0.2 s per person
Device Interfaces
- Alarm Input 4 (2 exit butttons and 2 door contacts by default)
- Network Interface 1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit Button2
- RS-4851
- USB/
- Wiegand/
- TF CardReserved
- Lock Control
2 relays, Max. 30 VDC 2 A,
lock 2 needs secure module
- Door Contact Input 2
General
- Button1 physical button
- InstallationSurface mounting
- Indicator/
- Weight
Net weight: 0.405 kg
Gross weight: 0.752 kg
- Protective Level IP65, IK08
- Working Temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working Humidity10% to 90% (no-condensing)
- Dimension (W × H × D)182 mm × 85 mm × 26 mm (7.16″ × 3.34″ × 1.01″)
- Battery/
- Power Supply12 VDC, 1.5 A,IEEE802.3af, Standard PoE
- Application EnvironmentOutdoor
- Power Consumption≤ 6 W
- LanguageEnglish,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek
