Hikvision DS-PDC10DM-VG3 Outdoor Directional Dual-Tech Anti-Mask Curtain Detector with EOLR, Slim, IP65

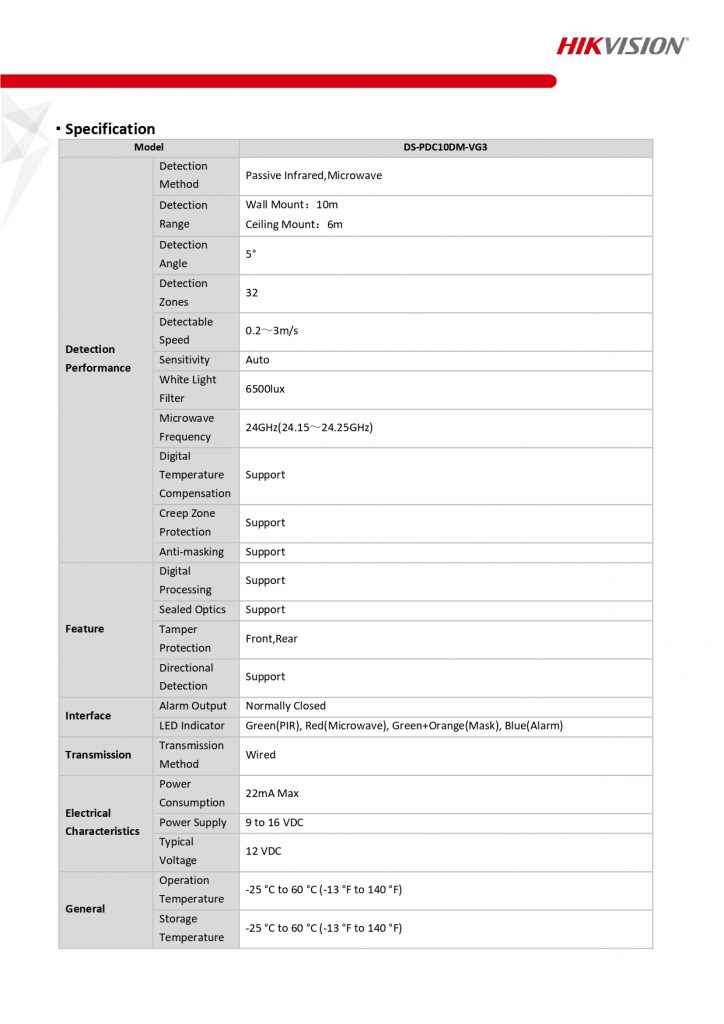

Detection Performance

• Detection Method Passive Infrared;Microwave
• Detection Range

  Wall Mount：10m

  Ceiling Mount：6m

• Detection Angle 5°
• Detection Zones 32
• Detectable Speed0.2～3m/s
• Sensitivity Auto
• White Light Filter6500lux
• Microwave Frequency 24GHz(24.15～24.25GHz)
• Digital Temperature Compensation Support
• Creep Zone ProtectionSupport
• Anti-masking Support

Feature

• Digital Processing Support
• Sealed Optics Support
• Tamper Protection Front;Rear
• Directional DetectionSupport

• Interface
• Alarm OutputNormally Closed
• LED IndicatorGreen(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm)

• Transmission
• Transmission MethodWired

Electrical Characteristics

• Power Supply 9 to 16 VDC
• Typical Voltage 12 VDC
• Power Consumption

  Maximum current：25mA@12VDC

  Quiescent current：16mA@12VDC

General

• Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
• Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
• Operation Humidity10% to 90%
• IP Rate IP65
• Dimension(WxHxD)29.2mm × 134.4mm × 39.5mm
• Weight79g
• Mounting Height2 to 4m
• Mounting MethodWall;Ceiling
• Application ScenarioIndoor,Outdoor
• Bracket L-shaped adapter included
