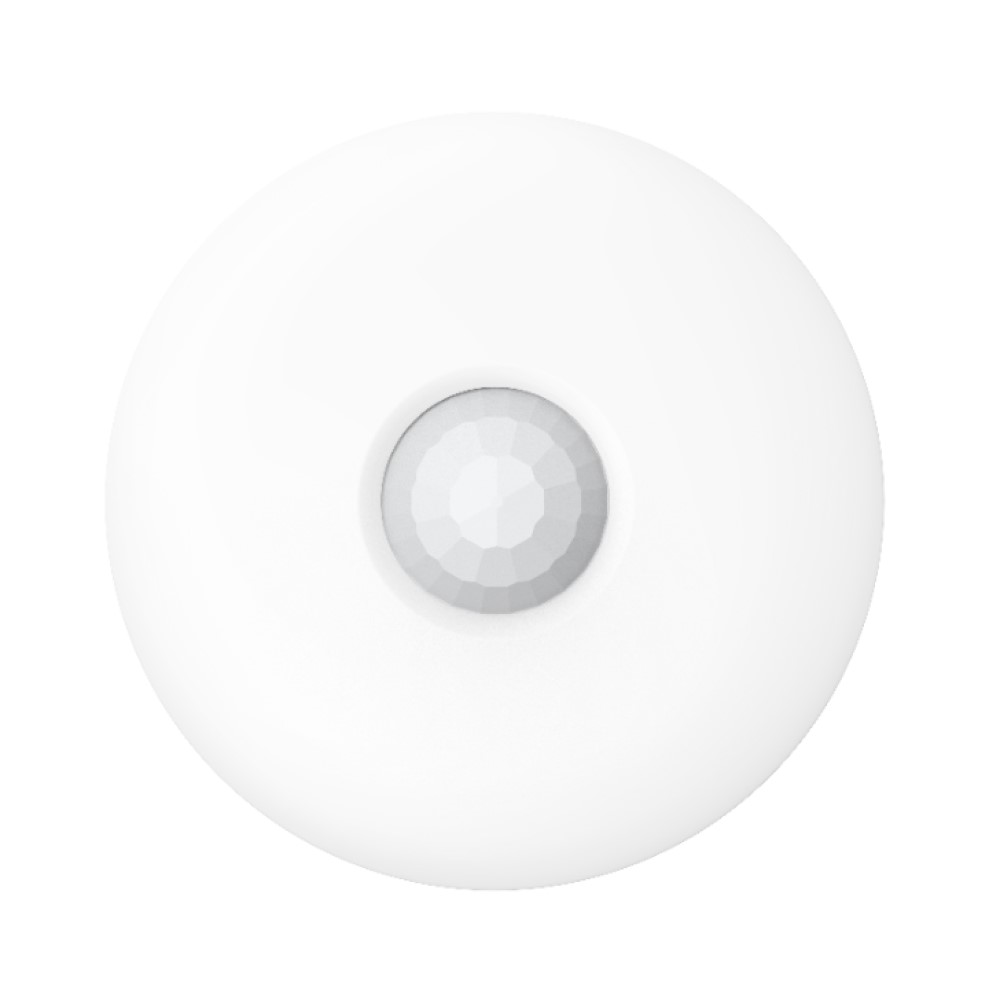

Hikvision DS-PDCL12DT-EG2 Wired Dual-Tech 360 Degree Ceiling Detector with EOLR

The Hikvision HIK-PDCL12DT-HW indoor ceiling dual-tech detector features motion and microwave detection, and tamper protection. It has a 360-degree coverage up to 12m.

  • Digital quad pyro sensor + 24GHz microwave
  • Automatic sensitivity
  • Wide voltage adaptation and on-board EoL resistor

$77.00 inc GST +3 Year Warranty & Support

  • Detection Performance
  • Detection MethodPassive Infrared;Microwave
  • Detection Range12m
  • Detection Angle360Ā°
  • Detection Zones172
  • Detectable Speed0.3ļ½ž2m/s
  • SensitivityAuto;Low
  • White Light Filter6500lux
  • Microwave Frequency24GHz(24.15ļ½ž24.25GHz)
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Feature
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront
  • Interface
  • LED IndicatorGreen(PIR), Red(Microwave), Blue(Alarm)
  • Electrical characteristics
  • Power consumption100mA Max
  • Electrical Characteristics
  • Power Supply9 to 16 VDC
  • Typical Voltage12 VDC
  • General
  • Operation Temperature -10 Ā°C to 55 Ā°C (14 Ā°F to 131 Ā°F)
  • Storage Temperature -20 Ā°C to 60 Ā°C (-4 Ā°F to 140 Ā°F)
  • Operation Humidity 10% to 90%
  • Dimension(WxHxD) Ļ†120 mm x 33.2 mm
  • Weight 138g
  • Mounting Height2.4 to 4m
  • Mounting MethodCeiling
  • Application ScenarioIndoor
SKU: DS-PDCL12DT-EG2 Category:
