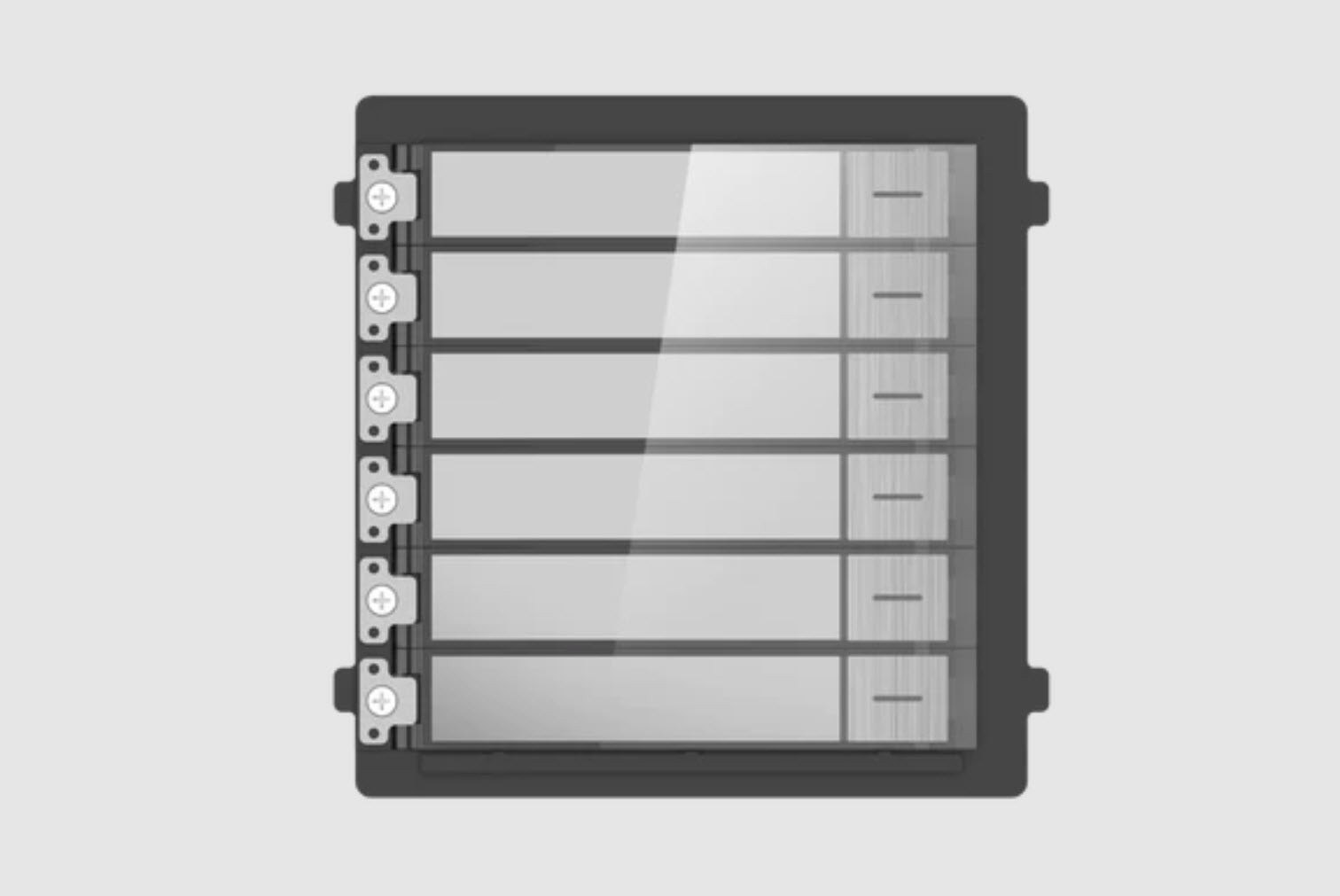

Hikvision DS-KD-KK/S Video Intercom Nametag Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides simple Dial up of appartments with the push of the associated nametag button. Up to 8 modules can be connected to a single DS-KD8003-IME1 Door Station unit.
System Parameters | ||
---|---|---|
Operation method: | Physical Button | |
Processor: | Embedded MCU Processor |
Device Interfaces | ||
---|---|---|
Debug: | 1 | |
Module-connecting: | 2(1 Input, 1 Output) |
General | ||
---|---|---|
DIP switch: | 8 | |
Installation: | Flush Mounting, Surface Mounting | |
Power Supply: | Powered by DS-KD8003-IME1 | |
Power Consumption: | ≤2W | |
Physical button: | 6 | |
Working Humidity: | 10% to 95% | |
Working Temperature: | -40° C to +60° C (-40° F to 140° F) | |
IP Protection Level: | IP65 | |
Dimensions(L × W × H): | 98.21mm×100.21mm×33.7mm(3.87″×3.95“×1.33”) |
