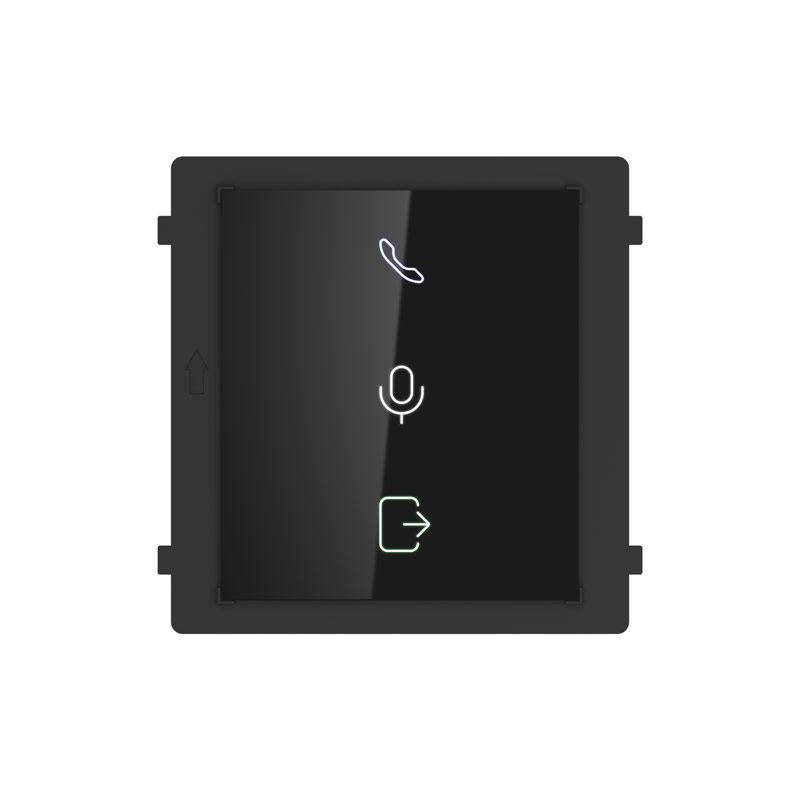

Hikvision DS-KD-IN Video Intercom Indicator Modular Video connects to the DS-KD8003-IME1 Door Station units via the supplied RS485 leads and provides visual indication to the ‘visitor’ at the Door Station of the Door Station Status; including Calling, Opening Door and Two Way Audio in progress.
System Parameters | ||
---|---|---|
Processor: | Embedded MCU Processor |
Device Interfaces |
||
---|---|---|
Debug: | 1 | |
Module-connecting: | 2(1 Input, 1 Output) |
General |
||
---|---|---|
Power output: | 12VDC(Powered for the other module) | |
Power input: | 12VDC(Powered by the other module) | |
DIP switch: | 8 | |
Installation: | Flush Mounting, Surface Mounting | |
Power Consumption: | ≤2W | |
Working Humidity: | 10% to 95% | |
Working Temperature: | -40° C to +60° C (-40° F to 140° F) | |
Dimensions(L × W × H): | 98.5mm×100mm×33.7mm(3.87″×3.95″×1.33″) | |
IP Protection Level: | IP65 |
