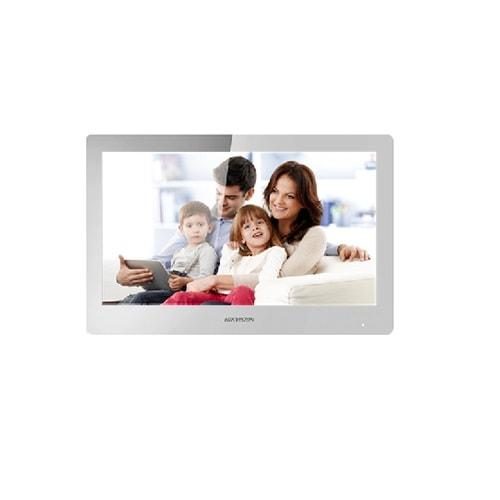

Hikvision Gen2 DS-KH8520-WTE1 Video Intercom 10-Inch Touch Screen Indoor Room Station
Hikvision DS-KH8520-WTE1 Gen2 10 Inch Video Intercom Room Station with WiFi.
10-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE / 12 VDC.TF card, max 32G.
Key Feature
• New UI V2.0: User friendly design
• 10-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card (Sold seperately)
• Remote unlocking via the client Software or the mobile client App.
• Views live videos of door station and linked cameras
• Supports wireless network
$541.00 inc GST +3 Year Warranty & Support
Hikvision DS-KH8520-WTE1 Gen2 10 Inch Video Intercom Room Station with WiFi.
10-inch Colorful TFT LCD, display resolution: 1024 * 600;10/100Mbps Ethernet, Wi-Fi 802.11b/g/n;standard PoE / 12 VDC.TF card, max 32G.
Key Feature
• New UI V2.0: User friendly design
• 10-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card (Sold seperately)
• Remote unlocking via the client Software or the mobile client App.
• Views live videos of door station and linked cameras
• Supports wireless network
| System Parameters | ||
|---|---|---|
| Operation System: | Embedded Linux Operation System | |
| Flash: | 32MB | |
| Memory: | 128MB | |
|
Display Parameters |
||
|---|---|---|
| Display Screen: | 10.1-inch colorful TFT LCD | |
| Display Resolution: | 1024 × 600 | |
| Operation Method: | Capacitive touch screen | |
|
Audio Parameters |
||
|---|---|---|
| Audio Input: | Built-in Omnidirectional Microphone | |
| Audio Output: | Built-in Loudspeaker | |
| Audio Compression Standard: | G.711 U | |
| Audio Compression Rate: | 64 Kbps | |
| Audio Quality: | Noise Suppression and Echo Cancellation | |
|
Network Parameters |
||
|---|---|---|
| Wired network: | 10/100 Mbps self-adaptive network | |
| Wireless network: | Wi-Fi 802.11b/g/n | |
| Network Protocol: | TCP/IP, SIP, RTSP | |
| Network interface: | 1 RJ-45 10/100 Mbps self-adaptive | |
|
Device Interfaces |
||
|---|---|---|
| Relay Output: | 2 | |
| Alarm Input: | 8-ch alarm inputs | |
| RS-485: | 1 | |
| TF Card (micro SD card): | Max to 32 G, SD 2.0 or lower version | |
|
General |
||
|---|---|---|
| Power Supply: | IEEE802.3af standard PoE, 12 VDC/1A | |
| Power Consumption: | ≤6W | |
| Working Humidity: | 10% to 90% | |
| Working Temperature: | -10° C to + 55° C (14° F to 131° F) | |
| Dimensions(L × W × H): | 254 mm × 166 mm × 14.7 mm (10.0″ ×6.5″ × 0.58″) | |
