Hikvision Cameras - World's Leading CCTV Manufacturer
4MP Hikvision Dome Cameras, CCTV Surveillance, Hikvision, Hikvision Dome Cameras

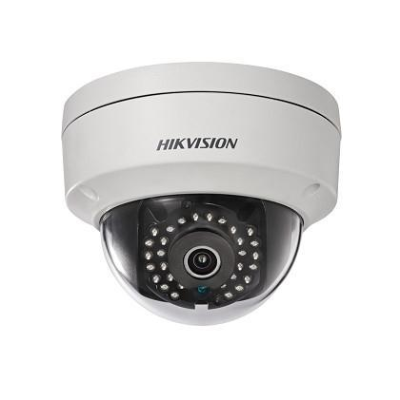

Hikvision DS-2CD2142FWD 4MP Outdoor Dome, H.264+, 30m IR, 3DDNR, 120dB WDR, IP67, IK10, PoE, 2.8mm
Availability:
Out of stock
Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2142FWDI2 is a vandal proof outdoor IR network dome camera that produces exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 30m visibility at night and a 4mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.
Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
NOTE – THIS CAMERA IS NO LONGER BEING PRODUCED.
IT HAS BEEN REPLACED BY:
Hikvision DS-2CD2165G0-I 6MP Outdoor Dome CCTV Camera, H.265+, 30m IR with Darkfighter
- Quick Start Guide of DS-2CD2142FWD-I(W)(S)
- Datasheet of DS-2CD2142FWD-I(W)(S)
- User Manual of DS-2CD2142FWD-I (W)(S)
$269.00 inc GST +3 Year Warranty & Support
Out of stock
Download Specification Sheet for HIK-2CD2142FWDI2
Download User Manual for HIK-2CD2142FWDI2
Part of Hikvision’s 2-Line range of cameras, the HIK-2CD2142FWDI2 is a vandal proof outdoor IR network dome camera that produces exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 30m visibility at night and a 2.8mm fixed lens, this camera is great for covering a wide area so you can focus on the detail you really want.
Rigorously tested, Hikvision’s 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
| Image Sensor: | 1/3″ Progressive Scan CMOS | |
| Min. Illumination: | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Lens: | 2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm) | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG/H.264+ | |
| H.264 code profile: | Main Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Dual Stream: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 2688 × 1520 | |
| Frame Rate: | 50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720) |
|
| Sub Stream: | 50Hz: 25fps(352×288),25fps(640×360) 60Hz: 30fps(352×240),30fps(640×360) |
|
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| BLC: | Yes, zone configurable | |
| ROI: | Support | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1x alarm I/O *only for –S models | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Wi-Fi Specification (-W) | ||
|---|---|---|
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n | |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth: | 20/40MHz Support | |
| Modulation Mode: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
|
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS | |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
|
| Wireless Range: | 50m(depend on environment) | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | Max. 5W | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Φ111 × 82 (4.4” × 3.2”) | |
| Weight: | 500g (1.1lbs) | |
