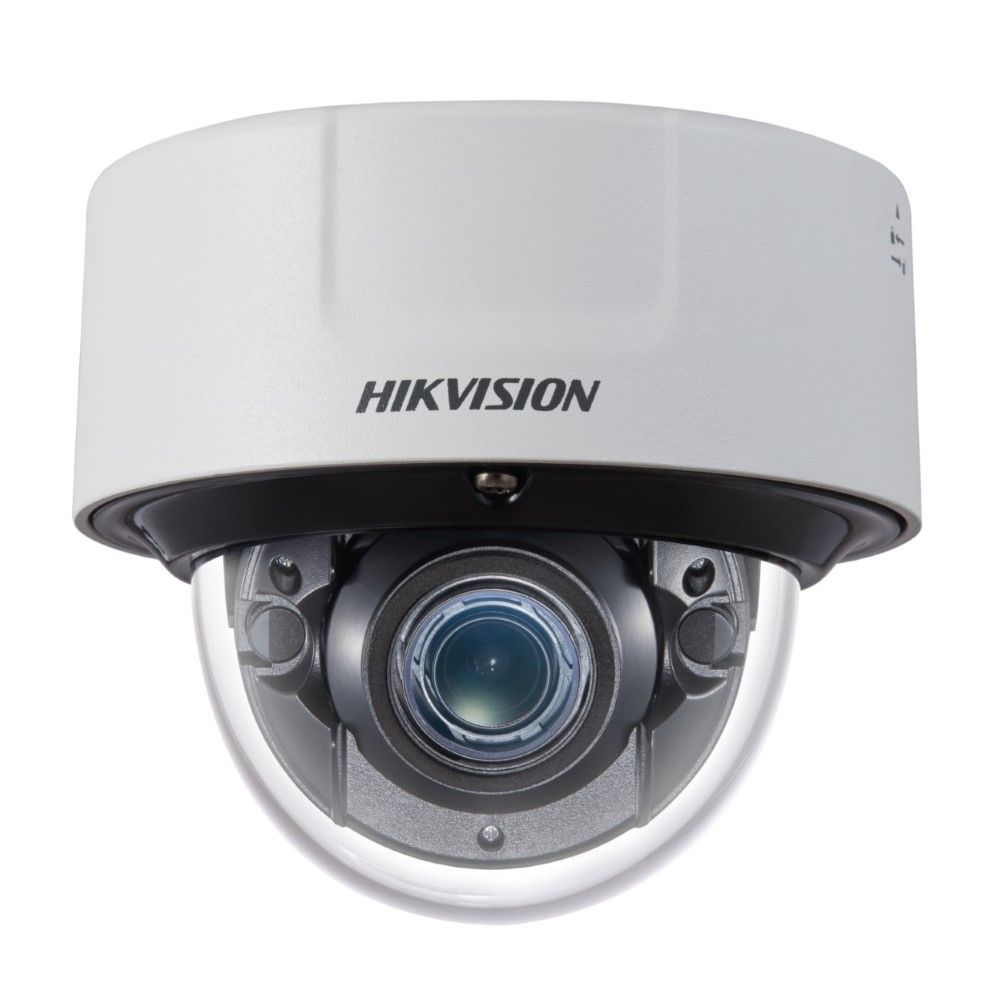

Hikvision DS-2CD5126G0-IZS 2MP Indoor Darkfighter Dome Camera, 140dB ,WDR, IR, VCA, 60fps, 2.8-12mm
- Hikvision Security Guidance of DS-2CD5126G0-IZS
- User Manual of DS-2CD5126G0-IZS
- Datasheet of DS-2CD5126G0-IZS
- Quick Start Guide of DS-2CD5126G0-IZS
This item may not be in stock – please check with us before ordering
$867.00 inc GST +3 Year Warranty & Support
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.01 Lux @ (F1.2, AGC ON), 0 lux with IR 0.014 Lux @ (F1.4, AGC ON), 0 lux with IR |
|
| Shutter time: | 1 s to 1/100,000 s | |
| Lens: | 2.8-12mm @ F1.4, angle of view: 113-33.8° -Z: 2.8-12mm @ F1.4, angle of view: 113-33.8° |
|
| Lens Mount: | φ14 | |
| Auto Iris: | DC drive | |
| Adjustment Range: | Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Motorized VF lens(-Z model) | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264+/H.264/MPEG4/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 25fps(1920 × 1080) 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps (1920 × 1080) 30fps (1280 × 960), 30fps (1280 × 720) |
|
| Third Stream: | Independent with Main Stream and Sub Stream, up to 50Hz: 25fps(1920 × 1080) 60Hz: 30fps (1920 × 1080) |
|
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| BLC: | Support | |
| HLC: | Support | |
| Smart Defog: | Support | |
| EIS: | Support | |
| ROI: | Support | |
| Picture Overlay: | 128 × 128, BMP 24bit, zone configurable | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Alarm Trigger: | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
|
| General Function: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask | |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | |
| Interface | ||
|---|---|---|
| Audio Input: | 1-ch 3.5 mm audio interface, MIC IN/LINE IN | |
| Audio Output: | 1-ch 3.5mm audio interface (line level, 600 Ω) | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface and 1 RS-485 interface | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 6 W Max. 9 W(IR: 2W, motorized VF lens: 1W) |
|
| Impact Protection: | IK10 | |
| IR Range: | Approx. 10 to 30 meters | |
| Dimensions: | Φ 140 × 121.8 mm (Φ 5.51” × 4.80”) | |
| Weight: | 1400 g (3.09 lbs) | |
