Hikvision Cameras - World's Leading CCTV Manufacturer
CCTV Surveillance, Hikvision, Hikvision Dome Cameras

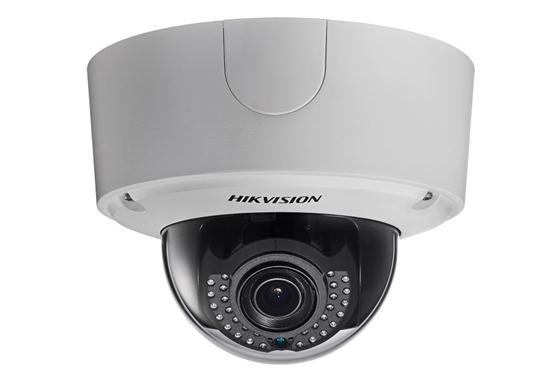

Hikvision HIK-2CD4565FIZ 6MP Outdoor Dome Camera
$1,279.00 inc GST +3 Year Warranty & Support
Hikvision’s 6MP Ultra HD Network Camera range offers advanced high definition technology, with more pixels and detail than ever before, resulting in crystal clear surveillance footage. With its immense field of view, one 6MP Ultra HD covers the area of several conventional cameras. It is capable of real-time images at 25fps, delivering razor sharp images in each frame for a smooth viewing experience.
Features
- Outdoor Dome Camera
- 6mp Resolution 3072×2048
- 2.8-12mm Motorised Zoom Lens
- 3D DNR
- 40m IR Range
- DC12V, AC24V, or POE
- Vandal Proof
Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination: | | | 0.01 Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR |
| Shutter time: | | | 1s ~ 1/100,000s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8-12mm @ F1.4, 94.5°~30.5° |
| Auto Iris: | | | DC drive |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Compression Standard | ||
| Video Compression: | | | H.264+/H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | ||
| Max. Image Resolution: | | | 3072 x 2048 |
| Frame Rate: | | | 50Hz: 24fps (3072 × 2048), 25fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720) 60Hz: 24fps (3072 × 2048), 30fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720 ) |
| Third Stream: | | | Independent with Main Stream and Sub Stream, up to 50/60Hz: 10fps@4CIF |
| Image Enhancement: | | | BLC/3D DNR/ROI/Defog |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Distortion Correction: | | | Support |
| Regional Cropping: | | | Support |
| Picture Overlay: | | | LOGO picture can be overlaid on video with 128×128 24bit bmp format |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | | | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | | | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | 1-ch audio in, Mic in/Line in; 1-ch audio out |
| Communication Interface: | | | 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface |
| Alarm: | | | 1 input, 1 output (up to DC24V 1A or AC110V 500mA ) |
| Video Output: | | | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | | | Yes |
| Audio | ||
| Environment Noise Filtering: | | | Support |
| Audio I/O: | | | Support dual audio track, stereo |
| Audio Sampling Rate: | | | 16kHz / 32kHz / 44.1kHz / 48kHz |
| Smart Feature-set | ||
| Behavior Analysis: | | | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Region Entrance: | | | Enter a pre-defined virtual region from the outside place |
| Region Exiting: | | | Exit from a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: | | | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection |
| Recognition: | | | Face detection recognition |
| Statistics: | | | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | DC12V/AC24V/PoE(802.3af) , -H: DC12V/AC24V/PoE(802.3at) |
| Power Consumption: | | | Max. 12 W; -H (Smart Heater): 17W |
| Impact Protection: | | | IK10 |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 40m |
| Dimensions: | | | Φ164.9 × 127 mm (Φ6.49” ×5”) |
| Weight: | | | 2100g (4.62lbs) |
