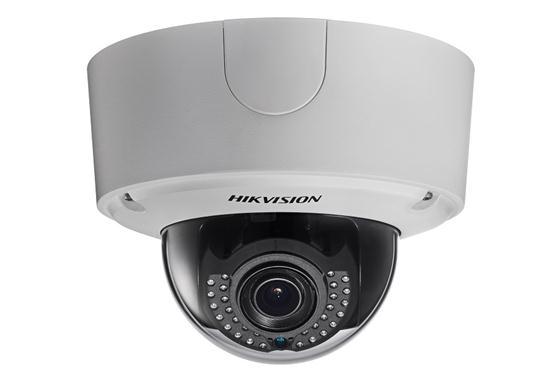

Hikvision HIK-2CD4585F-IZ2 8MP Outdoor Dome Camera, 4K, H.264+, 40m IR, DWDR, 22fps, IP66, 2.8-12mm
Part of Hikvision’s 4-Line range of ‘smart’ cameras, the HIK-2CD4585F-IZ2 is an outdoor dome camera that produces an exceptional 8MP (4K Ultra HD) image at 22 frames per second. Utilising an intelligent compression algorithm, H.264+, the bandwidth and storage requirement is reduced by an astonishing 50% and with built-in smart IR and advanced 3D digital noise reduction (3D DNR) technology, it can produce a crisp and clear image at night. Coupled with digital wide dynamic range (DWDR) and a motorised 2.8-12mm lens, the HIK-2CD4585F-IZ22 is truly versatile piece of technology.
$1,335.00 inc GST +3 Year Warranty & Support
Download Specification Sheet for HIK-2CD4585F-IZ2
Download User Manual for HIK-2CD4585F-IZ2
Part of Hikvision’s 4-Line range of ‘smart’ cameras, the HIK-2CD4585F-IZ2 is an outdoor dome camera that produces an exceptional 8MP (4K Ultra HD) image at 22 frames per second. Utilising an intelligent compression algorithm, H.264+, the bandwidth and storage requirement is reduced by an astonishing 50% and with built-in smart IR and advanced 3D digital noise reduction (3D DNR) technology, it can produce a crisp and clear image at night. Coupled with digital wide dynamic range (DWDR) and a motorised 2.8-12mm lens, the HIK-2CD4585F-IZ22 is truly versatile piece of technology.
| Image Sensor: | 1/1.7″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.009 Lux @ (F1.2, AGC ON), 0.012Lux @ (F1.4, AGC ON), 0 Lux with IR |
|
| Shutter time: | 1s ~ 1/100,000s | |
| Slow shutter: | Support | |
| Lens: | 2.8~12mm @ F1.4, 96.0°~32.6° | |
| Lens Mount: | φ14 | |
| Auto Iris: | DC drive | |
| Adjustment Range: | Pan: 0°~355°, tilt: 0°~75°,rotation: 0°~355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | Digital WDR |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264+/H.264/MJPEG | |
| H.264 code profile: | Baseline Profile / Main Profile / High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 4096 × 2160 | |
| Frame Rate: | 50Hz: 22fps (4096 × 2160), 25fps (3840 × 2160, 1920 × 1080, 1280 × 720) 60Hz: 22fps (4096 × 2160), 24fps (3840 × 2160), 30fps(1920 × 1080, 1280 × 720) |
|
| Third Stream: | Independent with Main Stream and Sub Stream, up to 50/60Hz: 10fps(1280 × 720) |
|
| Image Enhancement: | BLC/3D DNR/ROI/Defog | |
| Image Settings: | Saturation, brightness, contrast adjustable through client software or web browser | |
| Target Cropping: | Support | |
| Picture Overlay: | LOGO picture can be overlaid on video with 128×128 24bit bmp format | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | User Authentication, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | 1-ch audio in, Mic in/Line in; 1-ch audio out |
|
| Communication Interface: | 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface | |
| Alarm: | 1 input, 1 output (up to DC24V 1A or AC110V 500mA ) | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| Video Input: | 1 RJ12 interface | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio I/O: | Support dual audio track, stereo | |
| Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection | |
| Recognition: | Face detection recognition | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C | |
| Power Supply: | DC12V/AC24V/PoE(802.3af) , -H: DC12V/AC24V/PoE(802.3at) | |
| Power Consumption: | Max. 12 W; -H: 17W | |
| Impact Protection: | IK10 | |
| Weather Proof: | IP66 | |
| Dimensions: | 348.38 × 114.18 ×111.73 mm (13.72″ × 4.5″ × 4.4″) | |
| Weight: | Camera: approx. 1900 g (4.19 lb.) With package: approx. 2100 g (4.63 lb.) |
|
