Hikvision Cameras - World's Leading CCTV Manufacturer
2 Megapixel PTZ Cameras, CCTV Surveillance, Hikvision, Hikvision PTZ Cameras, Lightfighter PTZ Cameras

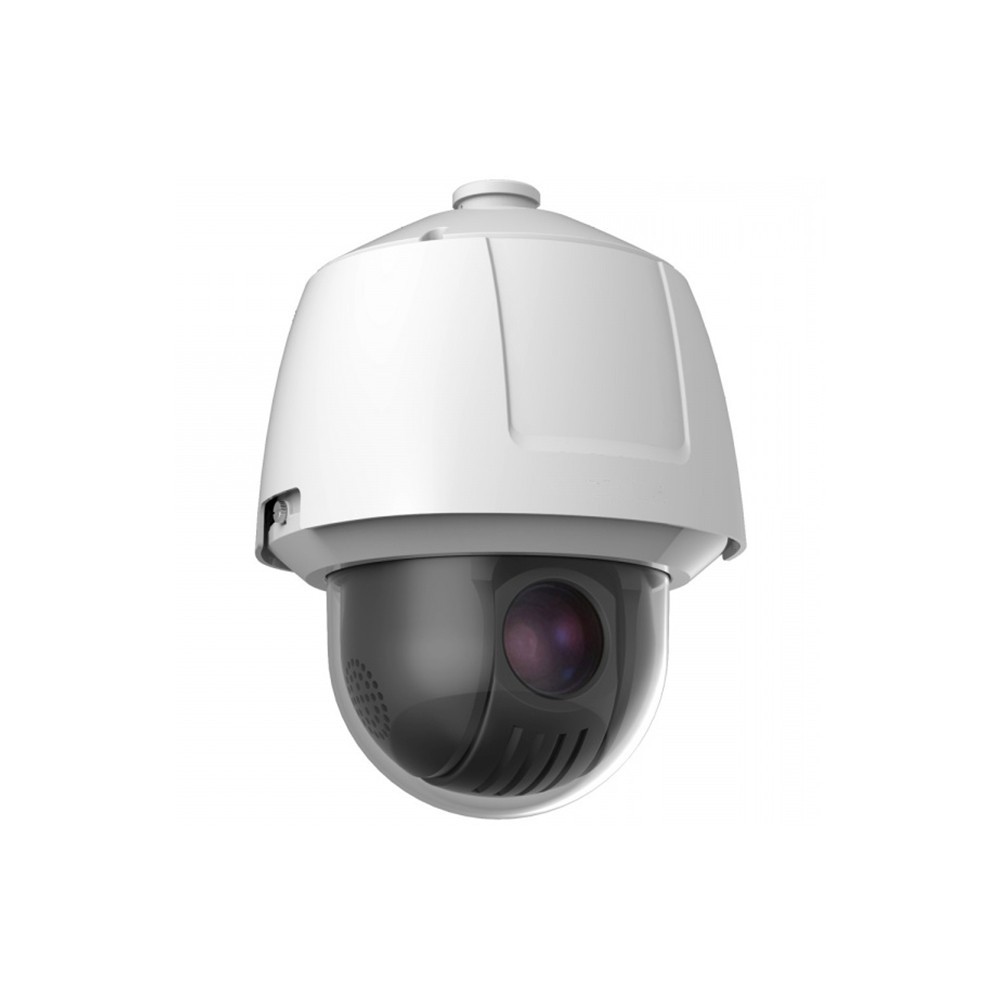

Hikvision HIK-2DF6236V-AEL 2MP Lightfighter PTZ Camera, Wiper, 36x Zoom
Availability:
Out of stock
Part of Hikvision’s Lighterfighter PTZ series, the HIK-2DF6236V-AEL is a smart PTZ dome cameras that is able to capture high quality images in environments with intense light sources. Embedded with a 1/2.8″ progressive scan CMOS chip that makes ultra WDR (140dB) and 2MP real-time resolution possible and with the 36x optical zoom day/night lens, this camera offers more details over expansive areas.
$3,211.00 inc GST +3 Year Warranty & Support
Out of stock
Features:
- 1/2.8″ progressive scan CMOS
- 2MP 1920 x 1080 full HD
- High frame rate, up to 60fps @ 2mp
- 36x optical zoom
- 140db true wide dynamic range
- Smart tracking
- Smart detection
- Defog
- Hi – PoE / 24V AC power supply
- IP66 and IK10 rating
| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.8″ Progressive Scan CMOS | |
| Effective Pixels: | 1920(H)x1080(V) | |
| Signal System: | PAL/NTSC | |
| Minimum Illumination: | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux | |
| White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| AGC: | Auto/Manual | |
| BLC: | ON/OFF | |
| HLC: | Support | |
| Smart defog: | Support | |
| WDR: | 140dB | |
| Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s | |
| Day& Night: | ICR | |
| Digital Zoom: | 16X | |
| Privacy Mask: | 24 programmable privacy masks | |
| Auto Focus: | Auto / Semi-automatic / Manual | |
| Lens | ||
|---|---|---|
| Focal Length: | 5.7-205mm, 36x | |
| Zoom Speed: | Approx.3.3s(Optical Wide-Tele) | |
| Field of View: | 60.6-3.68 degree (Wide-Tele) | |
| Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
| Aperture Range: | F1.6~F4.4 | |
| Pan & Tilt | ||
|---|---|---|
| Pan Range: | 360°endless | |
| Pan Speed: | Pan Manual Speed: 0.1°~300°/s, Pan Preset Speed: 540°/s |
|
| Tilt Range: | -15°-90° (Auto Flip ) | |
| Tilt Speed: | Tilt Manual Speed: 0.1°~240°/s, Tilt Preset Speed: 400°/s |
|
| Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
| Number of Preset: | 300 | |
| Patrol: | 8 patrols, up to 32 presets per patrol | |
| Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
| Power-off Memory: | Support | |
| Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
| PTZ Position Display: | ON/OFF | |
| Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios |
|
| Alarm | ||
|---|---|---|
| Alarm Input: | 7 Inputs | |
| Alarm Output: | 2 | |
| Alarm Linkage: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client | |
| Input & Output | ||
|---|---|---|
| Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC | |
| Audio Input: | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
|
| Audio Output: | 1 Audio output interface Line level, impedance: 600Ω |
|
| Network | ||
|---|---|---|
| Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
| Max.Image Resolution: | 1920×1080 | |
| Main Stream: | 50Hz: 25fps(1920×1080), 25fps (1280×960) / 50fps(1920×1080), 50fps(1280×960), 50fps(1280×720) 60Hz: 30fps(1920×1080), 30fps (1280×960) / 60fps(1920×1080), 60fps(1280×960), 60fps(1280×720) |
|
| Sub Stream: | 50Hz: 25fps(704×576, 352×288, 176×144) 60Hz: 30fps(704×480, 352×240, 176×120) |
|
| Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120) |
|
| ROI encoding: | Support 6 areas with adjustable levels | |
| Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 | |
| Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE | |
| Simultaneous Live View: | Up to 20 channels | |
| Three-Stream: | Support | |
| Storage: | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording | |
| User/Host: | Up to 32 users,3 Levels: Administrator, Operator and User | |
| Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
|
| Client GUI | ||
|---|---|---|
| Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
| Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
| Client: | Support iVMS-4200 | |
| Web Browser: | IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language | |
| General | ||
|---|---|---|
| RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
| Language: | English / Chinese | |
| Power Supply: | High-PoE&24 VAC | |
| Power Consumption: | Max.60W | |
| Working Temperature/Humidity: | -40°C ~ 65°C (-40°F ~ 149°F) | |
| Protection Level: | IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Mounting: | Various mounting modes optional | |
| Dimensions: | Φ178.3(mm)×331.0(mm) (Φ7.02”×13.03”) | |
| Weight (approx.): | 8kg (approx.) | |
| Mount Option: | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
|
