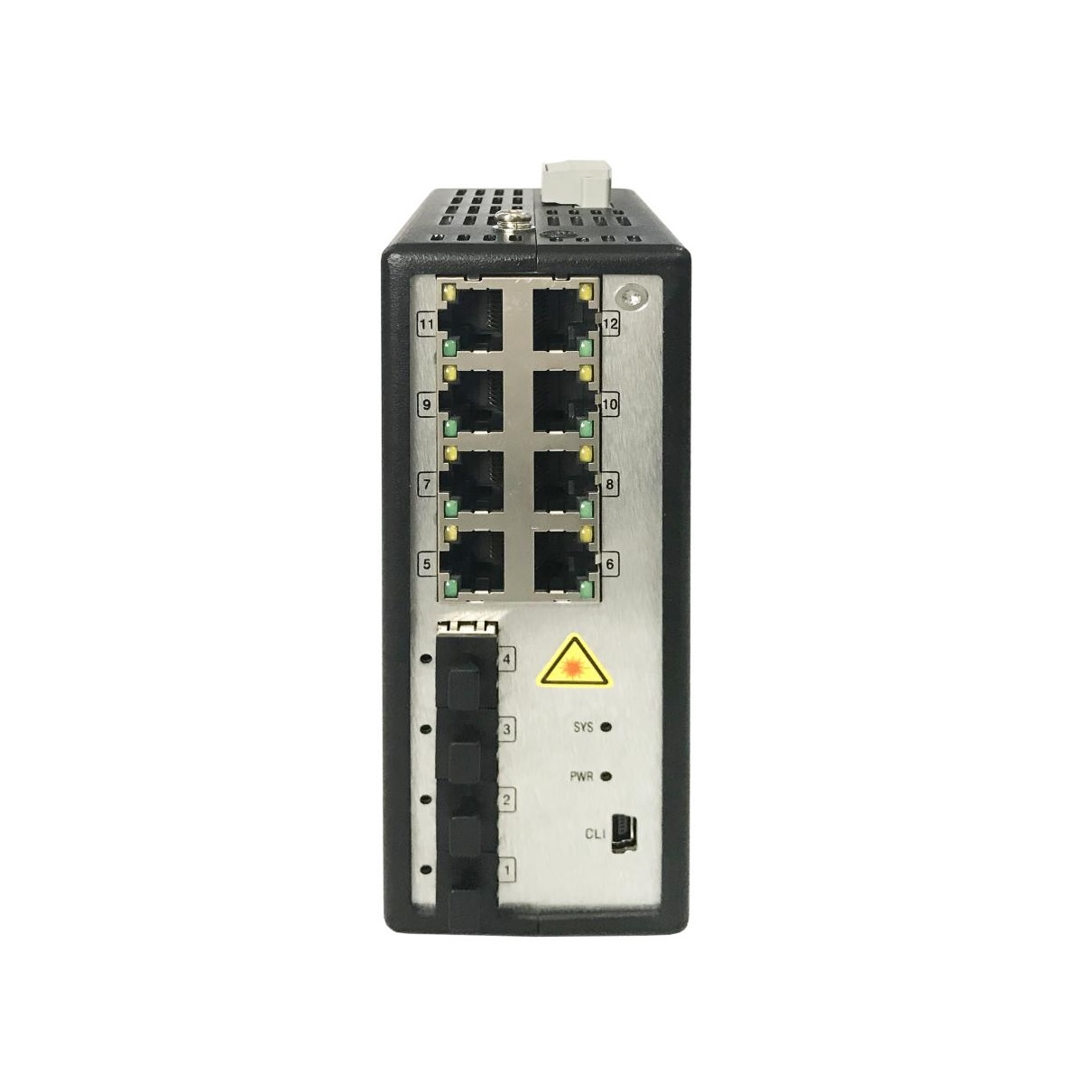

The Hikvision DS-3T3512P is a fully managed industrial PoE switch designed to meet the demanding requirements of industrial networks. It features 4 × 1000BaseX SFP ports and 8 × 802.3af/at PoE/PoE+ 10/100/1000BaseT ports, along with a management serial CLI port. This switch supports advanced Layer 3 routing protocols, including static routing, policy routing, RIP, and OSPF, ensuring efficient data transmission across complex network infrastructures. Network management is facilitated through various interfaces such as web browsers, CLI, Telnet, and serial console, providing flexibility for network administrators.
Designed for reliability in harsh environments, the DS-3T3512P operates within a wide temperature range of -40°C to 75°C and features a fanless design housed in a die-cast aluminum alloy casing. Each PoE port delivers up to 30W of power, supporting IEEE 802.3af/at standards, with comprehensive PoE management capabilities like device detection and power management. The switch also offers robust security features, including 802.1X authentication, MAC address filtering, and protection against various network attacks. Its dual redundant power inputs and support for multiple VLAN configurations make it a versatile and secure solution for industrial networking needs.
Technical Specifications:
General | |
---|---|
Net Weight | 0.67 kg (1.48 lb) |
Gross Weight | 0.75 kg (1.65 lb) |
Dimension (W × H × D) | 140 mm × 52 mm × 110 mm (5.50″ × 2.04″ × 4.33″) |
Working Temperature | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Working Humidity | 5% to 95% (no condensation) |
Storage Humidity | 5% to 95% (no condensation) |
Power Supply | 48-57VDC, Redundant dual inputs (Power supply unit is not included) |
Max. Power Consumption | 250 W |
Network Parameters | |
MAC Address Table | 8 K |
Ports | 8 × Gigabit PoE port, 4 × Gigabit fiber optical port |
Switching Capacity | Whole-Device Performance: 24 Gbps Port Performance: 24 Gbps |
Packet Forwarding Rate | Whole-Device Performance: 17.85 Mpps Port Performance: 17.85 Mpps |
PoE Power Supply | PoE Power Pin: 8-pin power: 1/2(+), 3/6(-), 4/5(-), 7/8(+) |
Software Function | |
QoS | Support Diff-Serv QoS Support 802.1p/DSCP priority mapping Support Queue scheduling including SP, WRR, WFQ, SP+WRR, SP+WFQ Support Priority marking and remarking Support Traffic shaping Support Congestion avoidance, Tail-Drop and WRED Support 802.1p, TOS, DSCP, and EXP priority mapping Support Port/Flow-based Rate Limiting |
VLAN | Support IEEE 802.1Q (VLAN), Up to 256 VLAN groups, 4096 VLAN IDs Support GVRP Support QinQ Support VLAN based on MAC/protocol/IP subnet/policy/port Support Private VLAN Support 1:1 and N:1 VLAN Mapping functions |
Management Method | |
Management Methods | Support CLI, Telnet, Console, mini usb console, SSH Support web, http, https Support FTP, TFTP, Xmodem, SFTP Support SNMP V1/V2c/V3 Support RMON Support NTP |
Reliability | |
Reliability Features | Support STP/RSTP/MSTP Support EAPS/MEAPS Support MRD-Ring Support ERPS Support VRRP Support BFD for OSPF |
Security | |
Security Features | Support AAA, TACACS+ Radius Authentication Support 802.1X authentication, MAC authentication, MAC bypass authentication Support to prevent DOS, ARP attack function, ICMP anti-attack Support binding of IP, MAC, port, and VLAN Support MAC authentication Support MAC address filtering Support Broadcast/Multicast/Unknown-unicast Storm Control |
Multicast | |
Multicast Features | Support IGMP v1/v2/v3 Snooping Support IGMP V1/V2/V3 Support MLD Snooping v1/v2 Support MLD v1/v2 |
Approval | |
EMC | FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 28) |
Safety | UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2038) |
Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2027) |
