Name: Hikvision Intercom DS-KIS602 2mp Kit, KD8003-IME1, KH6320, SURFACE Mount
Brand: Hikvision
SKU: DS-KIS602
Price: 645.71 AUD
Availability: InStock

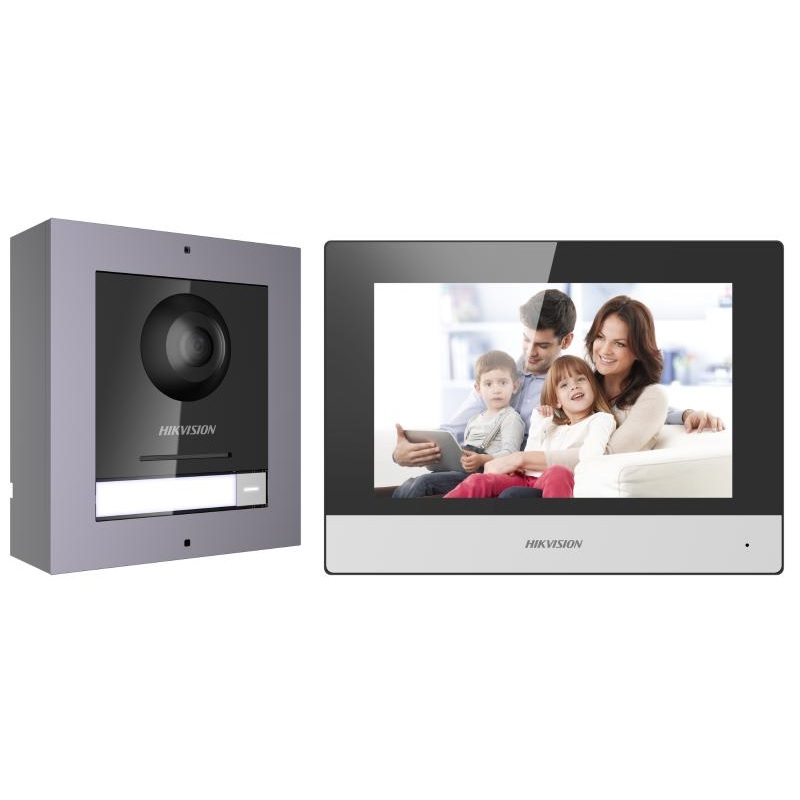

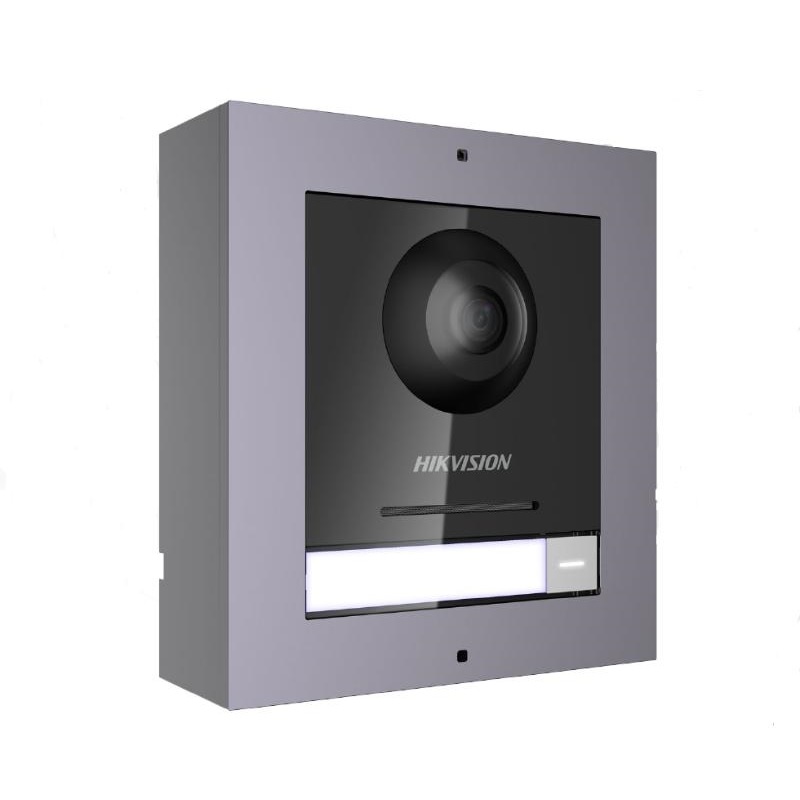

The Hikvision DS-KIS602 is an IP video intercom kit designed for villas or houses, featuring a user-friendly 7-inch touch screen indoor station (DS-KH6320-WTE1) with a 1024 × 600 resolution, standard PoE support, and the ability to store messages and images on a 16GB TF card. The kit also includes a surface-mounted door station (DS-KD8003-IME1) equipped with a 2 MP HD camera, access control functionality, noise suppression, echo cancellation, and IR illumination for low-light conditions.

Technical Specifications:

System Parameters
Processor	Embedded MCU Processor
Operation System	Embedded Linux Operation System
Display Resolution	1024 × 600
Display Screen	7-inch colorful TFT screen
Audio Compression Rate	64 Kbps
Audio Compression Standard	G.711 U
Audio Input	Built-in omnidirectional microphone
Audio Output	Built-in loudspeaker
Audio Quality	Noise suppression and echo cancellation
Ethernet	10/100 Mbps Self-Adaptive Ethernet
Network Protocol	TCP/IP, RTSP
I/O Input	4
I/O Output	2
Power Supply	12 VDC/PoE (IEEE 802.3af)
Power Consumption	≤10 W
Working Temperature	-40° C to +60° C (-40° F to 140° F)
Working Humidity	10% to 95%
Dimension (L x W x D)	200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
Weight	683 g (with packaging), 355 g (without packaging)
IP Protection Level	IP65
Memory	128 MB
Dimensions (L × W × H)	98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)

SKU: DS-KIS602 Categories: Hikvision Gen2 Video Intercoms, Hikvision Video Intercoms, Hikvision Villa / House Intercoms, Intercoms
