Name: Hikvision Intercom DS-KV6133-WME1-FLUSH METAL G2 2mp Villa Door Stn, Wi-fi, Metal, Mifare, Flush
Brand: Hikvision
SKU: DS-KV6133-WME1-FLUSH
Price: 235.9300 AUD
Availability: InStock

Hikvision Intercom DS-KV6133-WME1-FLUSH METAL G2 2mp Villa Door Stn, Wi-fi, Metal, Mifare, Flush

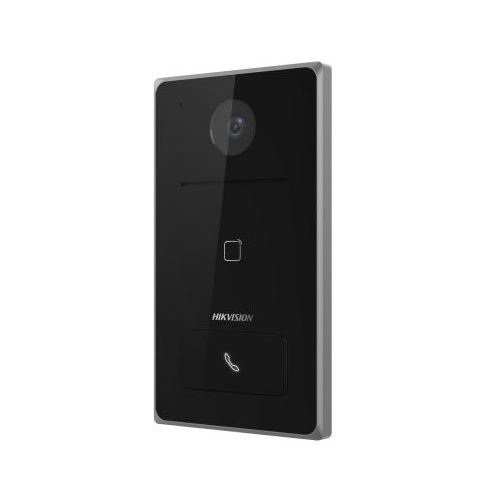

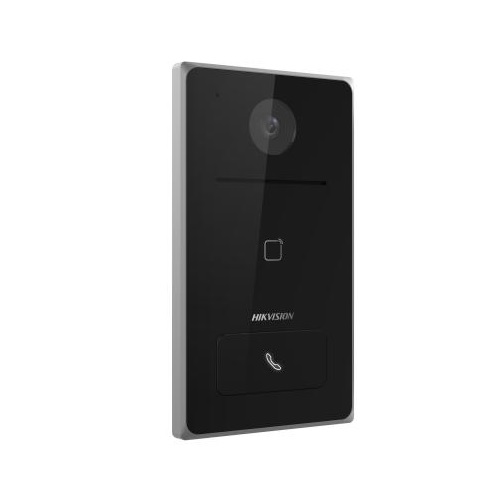

The Hikvision DS-KV6133-WME1/Flush is a robust IP video intercom designed for outdoor use, featuring a 2 MP camera with a wide 129° horizontal field of view and IR illumination up to 2.5 meters for clear night vision. Its durable aluminum alloy casing boasts an IP65 protection rating, ensuring resistance to dust and water. Equipped with a built-in Mifare card reader, it supports up to 10,000 cards and 2,000 users, making it ideal for secure access control. The device offers flexible connectivity options, including Wi-Fi, PoE, and a 10/100 Mbps RJ-45 interface, and can directly call the Hik-Connect app without needing an indoor station.

Key Features:

2 MP camera with IR supplement
One button calling design for easier calls
Built-in card reader module
Standard PoE power supply
IP65 protection level with aluminum alloy casing
Call directly to Hik-Connect APP without indoor station

DS-KV6133-WME1_Datasheet

$235.93 inc GST +3 Year Warranty & Support

The Hikvision DS-KV6133-WME1/Flush is a robust IP video intercom door station designed for secure and efficient access control in residential and commercial settings. Equipped with a 2 MP camera offering a 129° horizontal and 75° vertical field of view, it ensures clear video capture, even in low-light conditions, thanks to its IR supplement light with a range of up to 2.5 meters. The device supports H.264 video compression and features a built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation for clear two-way audio communication. Its durable aluminum alloy casing is rated IP65, making it suitable for outdoor use across a wide temperature range (-40 °C to 53 °C). The unit supports both surface and flush mounting, integrates seamlessly with the Hik-Connect app for remote access without the need for an indoor station, and offers flexible connectivity options, including Wi-Fi and standard PoE power supply. With a user capacity of 2,000 and card capacity of 10,000, it is well-suited for various access control applications.

Name	Price	Buy
Hikvision DS-3E1105P-EI 4 Port Smart POE Switch	$80.00 inc GST +3 Year Warranty & Support	Hikvision DS-3E1105P-EI 4 Port Smart POE Switch quantity
Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi	$266.00 inc GST +3 Year Warranty & Support	COLOUR OF FRAME BLACK (default) WHITE Hikvision DS-KH6350-WTE1 Gen2 IP-Based 7 inch Indoor Intercom Station Wifi quantity
Hikvision Intercom DS-KV6133-WME1-SURFACE G2 2mp Villa Door Stn, Wi-fi, Metal, Mifare, SURFACE	$235.93 inc GST +3 Year Warranty & Support	Hikvision Intercom DS-KV6133-WME1-SURFACE G2 2mp Villa Door Stn, Wi-fi, Metal, Mifare, SURFACE quantity

Technical Specifications:

System Parameters
Operation System	Linux
ROM	32 MB
RAM	256 MB
Processor	Embedded high performance processor
Display Parameters
Screen Size	/
Operation Method	/
Type	/
Resolution	/
Video Parameters
Lens	1
Resolution	Main stream: 1920 × 1080p, 1280 × 720p Sub stream: 1280 × 720p, 640 × 480p
FOV	Horizontal: 129°, Vertical: 75°
Wide Dynamic Range (WDR)	Support 120 dB
Supplement Light	IR light, up to 2.5 m
Video Compression Standard	H.264
Audio Parameters
Audio Input	1 built-in omnidirectional microphone
Audio Compression Standard	G.711 U, G.711 A, Opus, AAC-LD, AAC-LC, G.726, G.722.1
Audio Output	1 built-in loudspeaker
Audio Compression Bitrate	16/32/64 Kps
Audio Quality	Noise suppression and echo cancellation
Volume Adjustment	Adjustable
Capacity
User Capacity	2000
Face Capacity	/
Card Capacity	10000
Network Parameters
Network Protocol	TCP/IP, RSTP
Wi-Fi	2.4GHz, IEEE802.11b/g/n
Bluetooth	/
3G/4G	/
Device Interfaces
Alarm Input	4
Network Interface	1 RJ-45, 10/100 Mbps self-adaptive
TAMPER	1
Exit Button	1
RS-485	1
USB	/
Wiegand	/
TF Card	1 (Reserved)
Alarm Output	/
Lock Control	1 relay, Max. 30 VDC 2 A
Door Contact Input	1
Audio Output	1 external loudspeaker (Reversed)
General
Button	1 physical button
Installation	Surface mounting, Flush mounting
Indicator	2
Weight	Net weight: 0.190 kg, Gross weight: 0.414 kg
Protective Level	IP65
Working Temperature	-40 °C to 53 °C (-40 °F to 127.4 °F)
Working Humidity	10% to 95% (non-condensing)
Dimension (W × H × D)	181.6 mm × 103.6 mm × 29.5 mm (7.1″ × 4.0″ × 1.1″)
Battery	/
Application Environment	Outdoor
Power Consumption	< 10 W
Language	English, Arabic, French (Europe), Russian, Spanish (Europe), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
Power Supply	12 VDC, 1.5 A, IEEE802.3af, Standard PoE

Non english video, but shows you how the products looks and feels

SKU: DS-KV6133-WME1-FLUSH Categories: Hikvision Apartment Intercoms, Hikvision Gen2 Video Intercoms, Hikvision Video Intercoms, Hikvision Villa / House Intercoms
