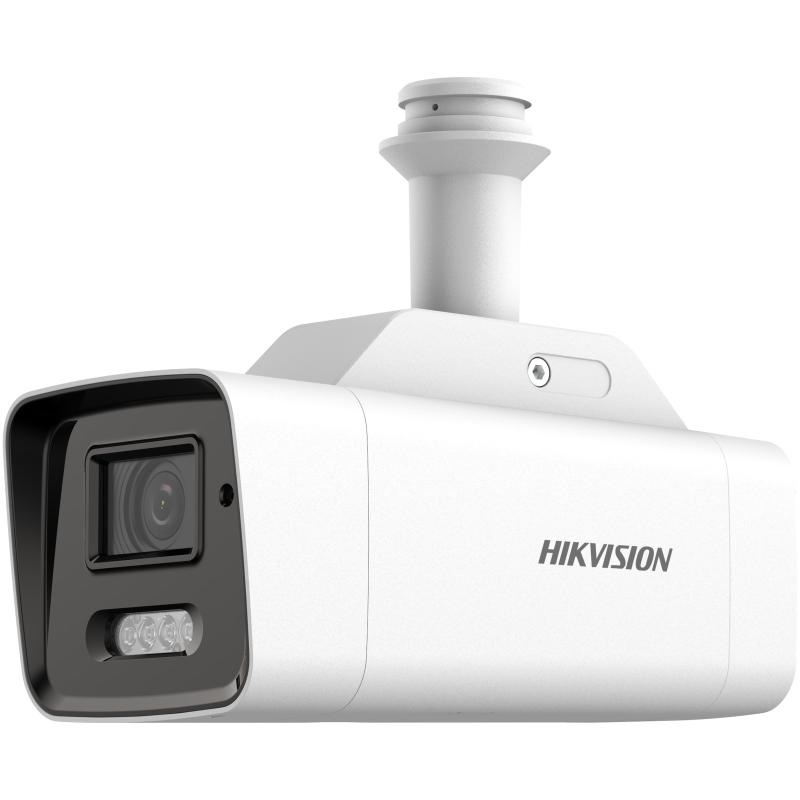

The Hikvision DS-2XS6A46G1/P-IZS/4G is a 4-megapixel Automatic Number Plate Recognition (ANPR) bullet camera designed for high-performance vehicle identification and surveillance. Equipped with a 1/1.8″ Progressive Scan CMOS sensor, it delivers a maximum resolution of 2560 × 1440 pixels. The camera offers two varifocal lens options: a 2.8 to 12 mm lens with a horizontal field of view (FOV) ranging from 107.4° to 39.8°, and an 8 to 32 mm lens with a horizontal FOV between 40.3° and 14.5°. Its 120 dB true Wide Dynamic Range (WDR) technology ensures clear imaging even under challenging lighting conditions, effectively handling strong backlight scenarios.
This camera supports LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission and accommodates a Micro SIM card, facilitating flexible and remote deployment without the need for wired network infrastructure. Leveraging deep learning algorithms, it focuses on human and vehicle target classification, enhancing the accuracy of its ANPR capabilities. The device is built to withstand harsh environmental conditions, boasting an IP66-rated water and dust-resistant housing, making it suitable for outdoor applications.
Technical Specifications:
Camera | |
---|---|
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Max. Resolution | 2560 × 1440 |
Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light |
Shutter Time | 1 s to 1/100,000 s |
Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5° |
Lens Type | Varifocal, motorized, 2.8–12 mm and 8–32 mm optional |
Focus | Auto, Semi-auto, Manual |
Iris Type | Auto-iris |
Aperture | 2.8–12 mm: F1.2, 8–32 mm: F1.6 |
Lens Mount | All In One Lens |
DORI (2.8–12 mm) | Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m |
DORI (8–32 mm) | Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m |
Supplement Light Type | IR |
Supplement Light Range | 2.8–12 mm: Up to 30 m 8–32 mm: Up to 50 m |
Smart Supplement Light | Yes |
Main Stream | Performance mode: 50 Hz: 25 fps (2560×1440, 1920×1080, 1280×720) 60 Hz: 30 fps (2560×1440, 1920×1080, 1280×720) Proactive mode: 50 Hz: 12.5 fps 60 Hz: 15 fps |
Sub-Stream | Performance mode: 50 Hz: 25 fps (640×480, 640×360) 60 Hz: 30 fps (640×480, 640×360) Proactive mode: 50 Hz: 12.5 fps 60 Hz: 15 fps |
Third Stream | 50 Hz: 1 fps (1280×720, 640×480) 60 Hz: 1 fps (1280×720, 640×480) |
Video Compression | Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third stream: H.265/H.264 *Performance mode supports H.264+/H.265+ |
Video Bit Rate | 32 Kbps to 8 Mbps |
H.264 Type | Baseline, Main, High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR/VBR |
SVC | H.264 and H.265 |
ROI | 4 fixed regions for main stream |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
Audio Bit Rate | Various from 8 to 320 Kbps based on codec |
Audio Sampling Rate | 8 / 16 / 32 / 44.1 / 48 kHz |
Environment Noise Filtering | Yes |
Simultaneous Live View | Up to 6 channels |
API | ONVIF (Profile S, G, T), ISAPI, SDK, ISUP, OTAP |
Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, RTP, RTSP, SNMP, SSL/TLS, WebSocket, etc. |
User/Host | Up to 32 users; 3 levels: admin, operator, user |
Security | Multiple encryption, authentication, TLS 1.2/1.3, IP filtering, etc. |
Network Storage | NAS (NFS, SMB/CIFS), ANR, Hik memory card support |
Client | Hik-Connect, Hik-Central Pro |
Web Browser | Plug-in: IE10+ Plug-in free: Chrome 57+, Firefox 52+ |
SIM Card Type | MicroSIM |
Frequency | LTE/WCDMA/GSM – multiple bands supported |
Standard | LTE-TDD/FDD, WCDMA, GSM |
WDR | 120 dB |
Day/Night Switch | Day, Night, Auto, Schedule, Trigger |
Image Enhancement | BLC, HLC, 3D DNR, Defog |
Image Settings | Saturation, brightness, contrast, etc. via client/web |
SNR | ≥ 52 dB |
Privacy Mask | 4 programmable polygon masks |
Audio Interface | 1 input, 1 output (non-equilibrium, 3.3 Vpp) |
Alarm Interface | 1 input, 1 output (max. 12VDC, 1A) |
On-Board Storage | microSD up to 256GB, 8 GB eMMC built-in |
Reset Key | Yes |
Ethernet | 1 RJ45 10/100M self-adaptive port |
Wiegand | Supports multiple formats including 26/34/72-bit |
Basic Events | Motion, tampering, network issues |
Smart Events | Line crossing, intrusion, face detection, etc. |
Linkage Methods | FTP, NAS, email, alarm output, capture |
Deep Learning | License plate recognition, blocklist/allowlist (10,000 records) |
Power | 12 VDC ± 20%, Max: 7W, Avg: 3.5W, Standby: 45 mW |
Material | Metal (front cover, body, bracket) |
Dimensions | 816.2 × 735.9 × 760 mm (Max Assembled) |
Package Dimension | 862 × 352 × 762 mm |
Weight | Approx. 31.885 kg (device), 25.650 kg (with package) |
Operating/Storage Conditions | -20 °C to 60 °C, 95% RH (non-condensing) |
Languages Supported | 33 languages including English, Russian, Korean, Japanese |
General Functions | Anti-banding, heartbeat, mirror, email reset, pixel counter |
EMC | CE, RCM, IC certified |
RF | CE-RED, ICASA, MIC compliance |
Safety | CB, CE-LVD, LOA certified |
Environmental | RoHS, WEEE, REACH compliant |
Protection | IP66, wind resistance up to 40 m/s |
