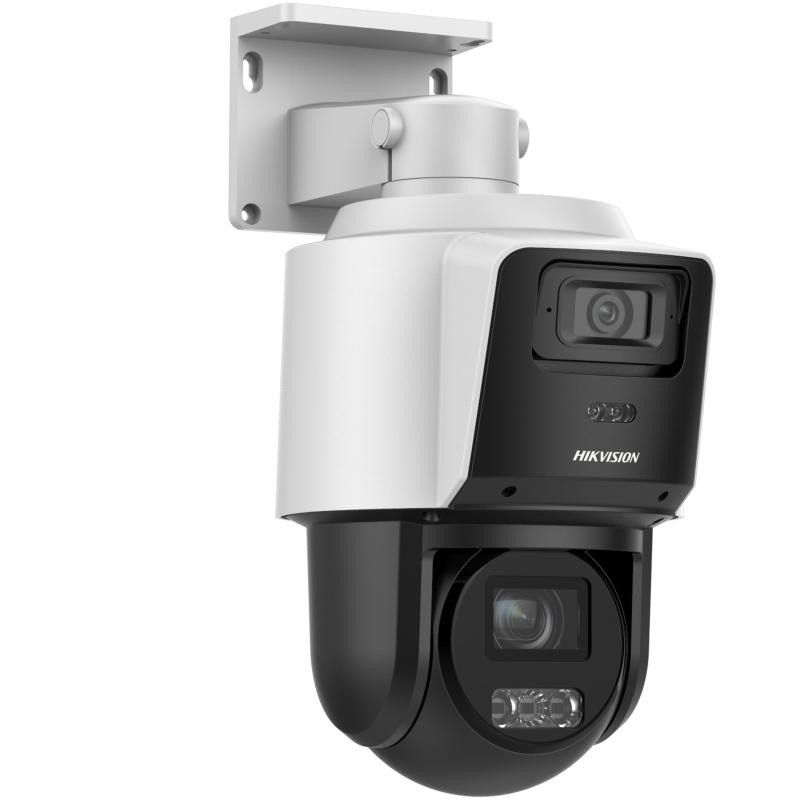

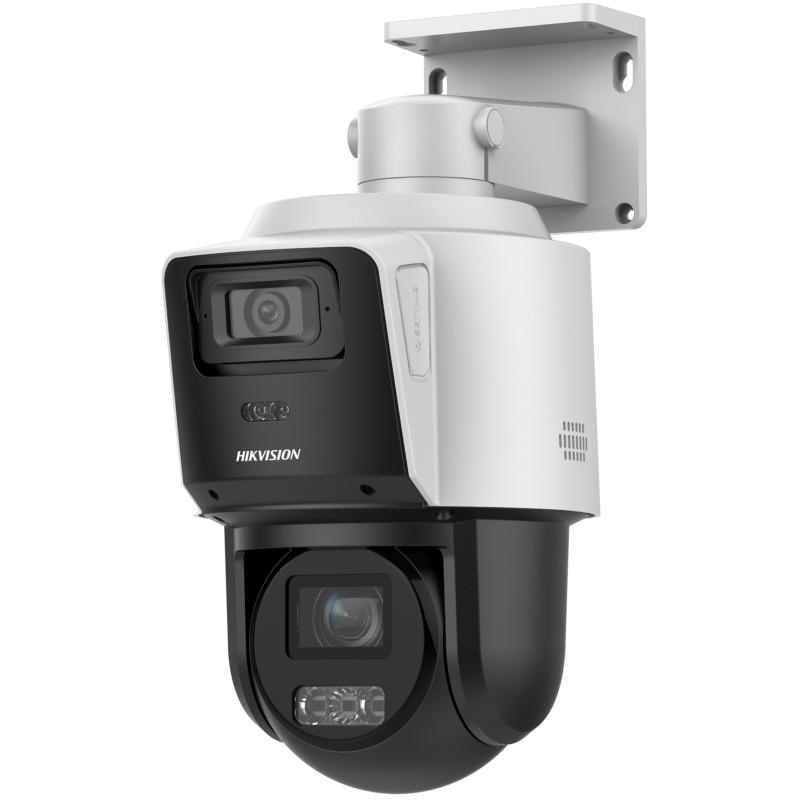

The Hikvision DS-2SE3C404MWG-E/14 TandemVu 4MP+4MP 4X POE PTZ Network Camera integrates a 4-megapixel pan-tilt-zoom (PTZ) camera with a 4-megapixel fixed lens bullet camera, enabling simultaneous wide-area coverage and detailed close-up monitoring. The PTZ camera offers 4× optical zoom and 16× digital zoom, allowing for precise observation of distant subjects, while the bullet camera provides a broad 114.9° horizontal field of view for comprehensive scene overview. Both cameras utilize 1/2.8″ progressive scan CMOS sensors, delivering high-quality imaging at a maximum resolution of 2560 × 1440 pixels.
Equipped with Hikvision’s DarkFighter technology, the camera excels in low-light conditions, capturing color images with minimal illumination—0.01 Lux for the bullet channel and 0.005 Lux for the PTZ channel. Its advanced features include Wide Dynamic Range (WDR), Highlight Compensation (HLC), Backlight Compensation (BLC), 3D Digital Noise Reduction (3D DNR), defog capability, regional exposure, and regional focus, ensuring clear and detailed images in challenging lighting environments. Additionally, the camera supports human and vehicle detection based on deep learning algorithms, enhancing security monitoring efficiency. Power options include 12V DC and PoE+, offering flexible installation choices.
Technical Specifications:
Camera | |
---|---|
Image Sensor | [Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS |
Min. Illumination | [Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR; [PTZ channel]: Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005 Lux @ (F1.5, AGC ON), 0 Lux with IR |
Shutter Speed | 1 s to 1/30,000 s |
Slow Shutter | Yes |
Day & Night | ICR |
Zoom | [PTZ channel] 4 × optical, 16 × digital |
Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
Focus | Auto, Manual, Semi-auto |
Focal Length | [Bullet channel]: 2.8 mm; [PTZ channel]: 2.8 to 12 mm, 4 × optical |
Zoom Speed | [PTZ channel]: approx. 3.3 s |
Field of View (FOV) | [Bullet channel] H: 114.9°, V: 62.4°, D: 130.7°; [PTZ channel] H: 98° to 34.2°, V: 52° to 19.2°, D: 111° to 39° |
Aperture | [Bullet channel]: F1.6; [PTZ channel]: F1.5 to F2.9 |
Supplement Light Type | [Bullet channel]: Hybrid (IR and White Light), [PTZ channel]: IR |
Smart Supplement Light | Yes |
Supplement Light Range | [PTZ channel]: IR Distance: up to 40 m; [Bullet channel]: IR: up to 30 m, White Light: 30 m |
PTZ Movement Range | Pan: 0° to 350°, Tilt: [Bullet channel] 7° to 17° (manual), [PTZ channel] -5° to 90° |
Pan/Tilt Speed | Pan: 0.1° to 30°/s, Preset: 30°/s Tilt: 0.1° to 30°/s, Preset: 30°/s |
Proportional Pan | Yes |
Presets | 300 |
Patrol Scan | 8 patrols, up to 32 presets each |
Power-off Memory | Yes |
Park Action | Preset, Patrol scan |
3D Positioning | Yes |
PTZ Status Display | Yes |
Preset Freezing | Yes |
Scheduled Task | Dome reboot, preset, patrol scan, dome adjust, aux output |
Region of Interest (ROI) | 1 fixed region for main stream |
Main Stream | [Bullet/PTZ] 50 Hz: 25 fps, 60 Hz: 30 fps @ 2560×1440, 1920×1080, 1280×720 |
Sub-Stream | [Bullet/PTZ] 50 Hz: 25 fps, 60 Hz: 30 fps @ 640×480, 640×360 |
Third Stream | [Bullet/PTZ] 50 Hz: 25 fps, 60 Hz: 30 fps @ 1280×720, 640×480, 640×360 |
Video Compression | H.265, H.264, MJPEG |
Video Bit Rate | 32 kbps to 16384 kbps |
H.264/H.265 Profiles | H.264: Main, Baseline, High H.265: Main |
SVC | Yes |
Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC |
Audio Bit Rate | MP2L2: 32–160 kbps, AAC: 16–64 kbps, MP3: 8–160 kbps |
Audio Sampling Rate | MP2L2: 16 kHz, AAC: 16 kHz, PCM: 8/16 kHz, MP3: 8/16 kHz |
Environment Noise Filtering | Yes |
API | ONVIF (Profile S/G/T), ISAPI, SDK, ISUP |
Network Storage | NAS (NFS, SMB/CIFS), ANR |
Protocols | TCP/IP, SMTP, RTSP, FTP, WebSockets, IGMP, HTTP, HTTPS, DHCP, DNS, NTP, RTP, SNMP, UDP, ICMP, 802.1X, DDNS, PPPoE, Bonjour, IPv4/IPv6, QoS |
Simultaneous Live View | 20 |
User/Host | 32 |
Security | 802.1X, MAC binding, Authenticated username/password, IP filter, HTTPS |
Client | iVMS-4200, Hik-Connect |
Web Browser | IE8+, Chrome 31–44, Firefox 30–51, Safari 8+ |
Image Settings | Sharpness, Saturation, Brightness, Contrast |
WDR | 120 dB |
SNR | ≥ 52 dB |
Defog | Digital |
Day/Night Switch | Day, Night, Auto, Scheduled |
Image Enhancement | BLC, HLC, 3D DNR |
Privacy Mask | [Bullet/PTZ] 24 programmable polygon masks |
Regional Focus/Exposure | [Bullet] No, [PTZ] Yes |
Image Parameters Switch | Yes |
Ethernet Interface | RJ45, 10M/100M self-adaptive |
On-board Storage | Micro SD/SDHC/SDXC, up to 512 GB |
Reset | Yes |
Basic Events | Motion detection, tampering, exception, I/O alarms |
Smart Events | Line crossing, intrusion, region entrance/exit, audio exception |
Linkage | [Bullet/PTZ]: Upload to FTP/NAS/SD, notify center, email, I/O, recording, [PTZ]: PTZ actions |
General Functions | Mirror, Watermark, IP filter, Password protection |
Power | 12 VDC, PoE+ |
Operating Condition | -30°C to 50°C (-22°F to 122°F), 95% RH or less |
Demist | Heated glass |
Material | PC |
Dimensions | 311.5 mm × 223.5 mm × 156 mm (12.26″ × 8.80″ × 6.14″) |
Weight | Approx. 1.37 kg (3.02 lb.) |
Protection | IP66, Surge and Voltage Transient Protection |
Image | Name | Price | Buy |
---|---|---|---|
Hikvision DS-1602ZJ Vertical Wall Mount | $35.00 inc GST +3 Year Warranty & Support | ||

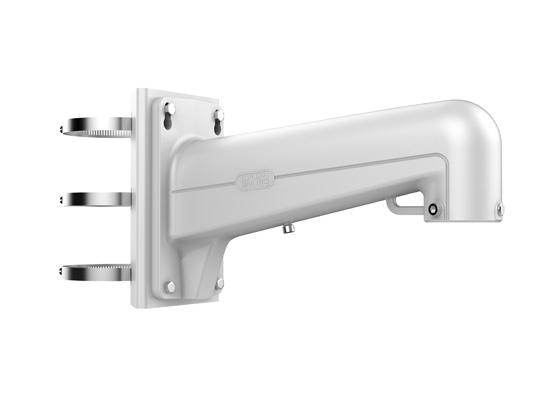

Hikvision DS-1602ZJ-POLE Vertical Pole Mount Bracket for PTZ Cameras | $46.00 inc GST +3 Year Warranty & Support | ||

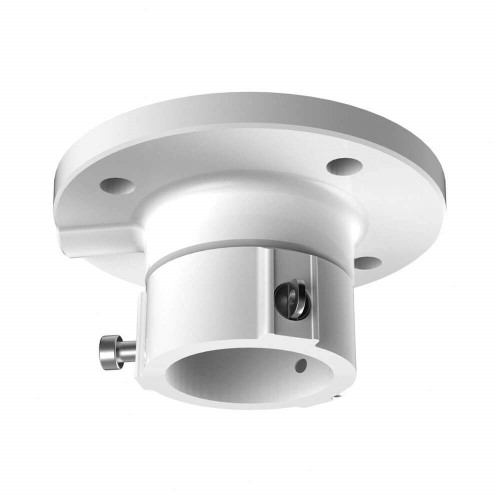

Hikvision DS-1663ZJ Ceiling Mount Bracket for PTZ Cameras | $25.00 inc GST +3 Year Warranty & Support | ||

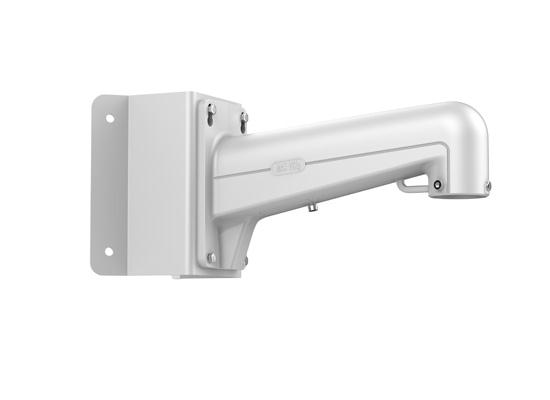

Hikvision DS-1602ZJ-CORNER Mount Bracket | $52.00 inc GST +3 Year Warranty & Support | ||

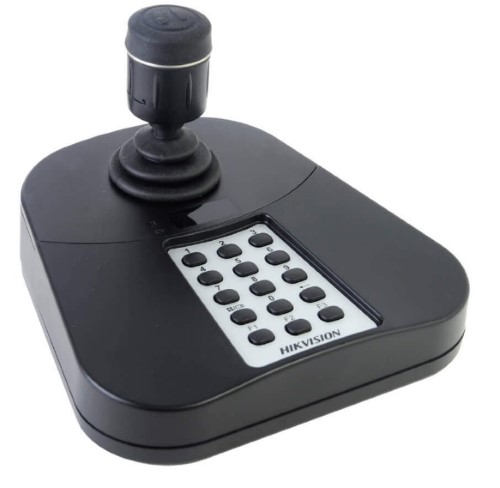

Hikvision DS-1005KI USB Keyboard with Joystick for VMS / NVRs / DVRs | $352.00 inc GST +3 Year Warranty & Support | ||

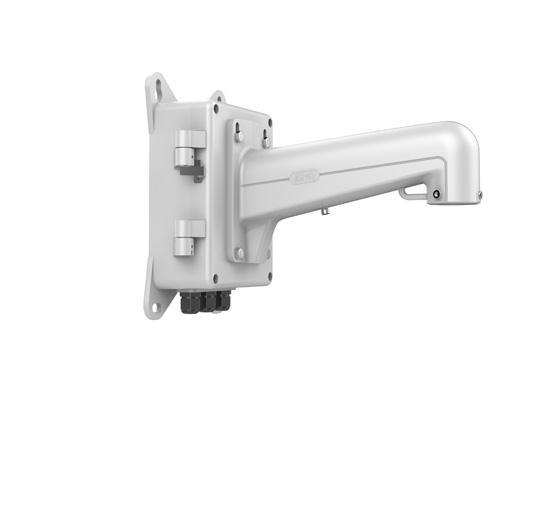

Hikvision DS-1602ZJ-BOX Vertical Wall Mount with Junction Box | $131.00 inc GST +3 Year Warranty & Support | ||

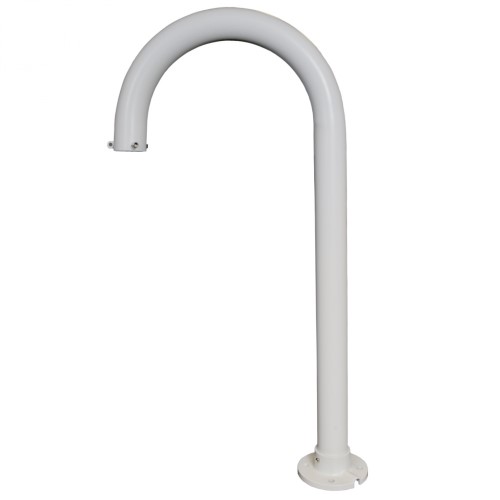

Hikvision DS-1619ZJ Gooseneck Mount Bracket for PTZ Cameras | $139.00 inc GST +3 Year Warranty & Support | ||
