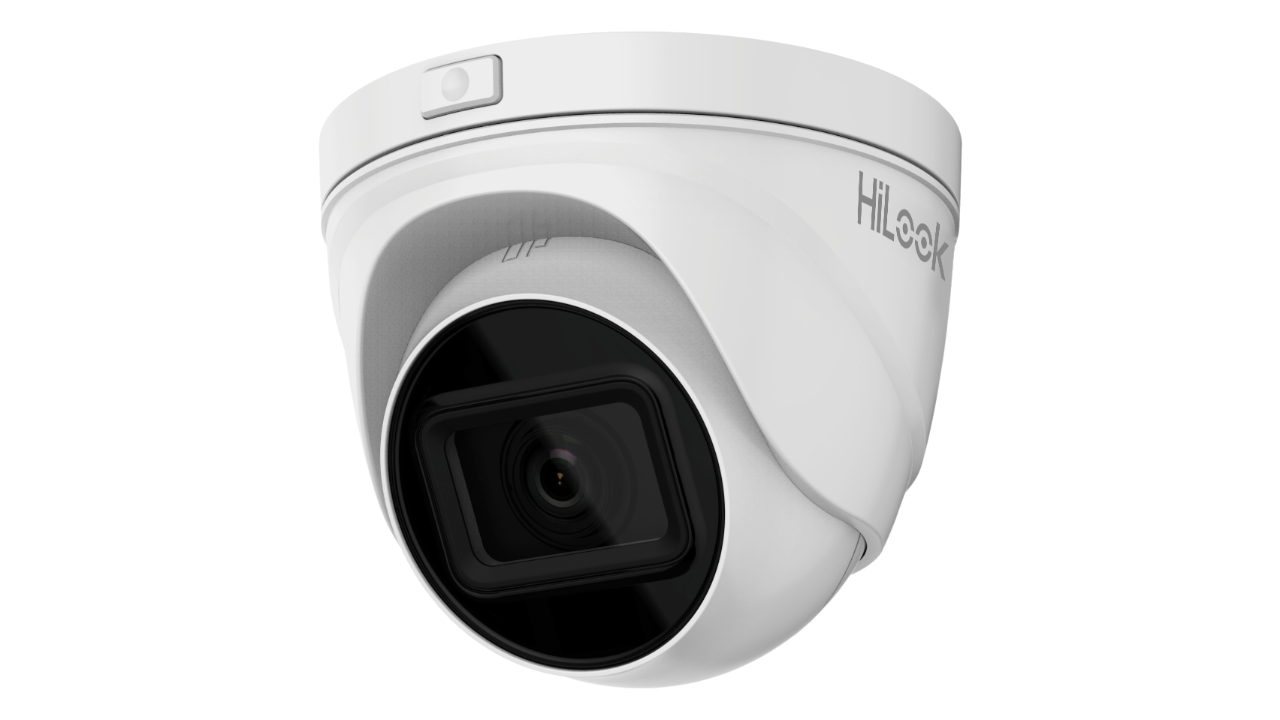

HiLook 5MP IPC-T651H-Z Motorised Turret Network Camera 2.8~12mm motorized lens

Camera

• Image Sensor1/3″ progressive scan CMOS
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
• DNR3D DNR
• Day & NightIR cut filter with auto switch
• Auto-Iris No

HiLook-Quick-Start-Guide-of-Network-Turret-Camera

HIL-IPC-T651H Datasheet

Lens

• ApertureF1.6
• FocusAuto
• FOVHorizontal FOV 92.8° to 29°, vertical FOV 50.2° to 16.4°, diagonal FOV 109° to 32.3°
• Lens MountΦ14
• Focal Length2.8 to 12 mm

Network

• Alarm TriggerSupport built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Network StorageMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour
• APIONVIF(PROFILE S, PROFILE G), ISAPI
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator, and User,
• ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web BrowserIE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
• General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Firmware Version V5.5.52


• Image EnhancementBLC/3D DNR
• Image SettingBrightness, saturation, contrast, sharpness are adjustable via web browser or client software
• Day/Night SwitchSupport auto, scheduled, day, night
• Max. Resolution2560 × 1440
• Main Stream50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1280, 1280 × 720),60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1280, 1280 × 720),
• Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240),

IR

• IR Range Up to 30 m
• Wavelength 850 nm

Interface

• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• ResetYes

General

• Power Supply12 VDC ± 25%, ,PoE (802.3af), class 3,
• Power Consumption And Current12 VDC, 1 A, Max. 11 W,PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max. 12.5 W,
• MaterialCamera body: metal, bottom base: plastic
• DimensionsCamera: Ø 129.4 mm × 116.4 mm (5.1″ × 4.6″),With package: Ø 170 mm × 150 mm (6.7″ × 5.9″),
• Camera: 560 g (1.2 lb.),With package: 850g (1.9 lb.),
• Protection LevelIP 67
• Operating Condition-30 °C to 60°C (-22 °F to 140°F), humidity: 95% or less (non-condensing)

Compression Standard

• H.264+Main stream supports
• H.265+Main stream supports
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
• H.265 TypeMain Profile
• Video Bit Rate32 Kbps to 8 Mbps

Smart Feature-Set

• Region Of Interest1 fixed region for main stream
