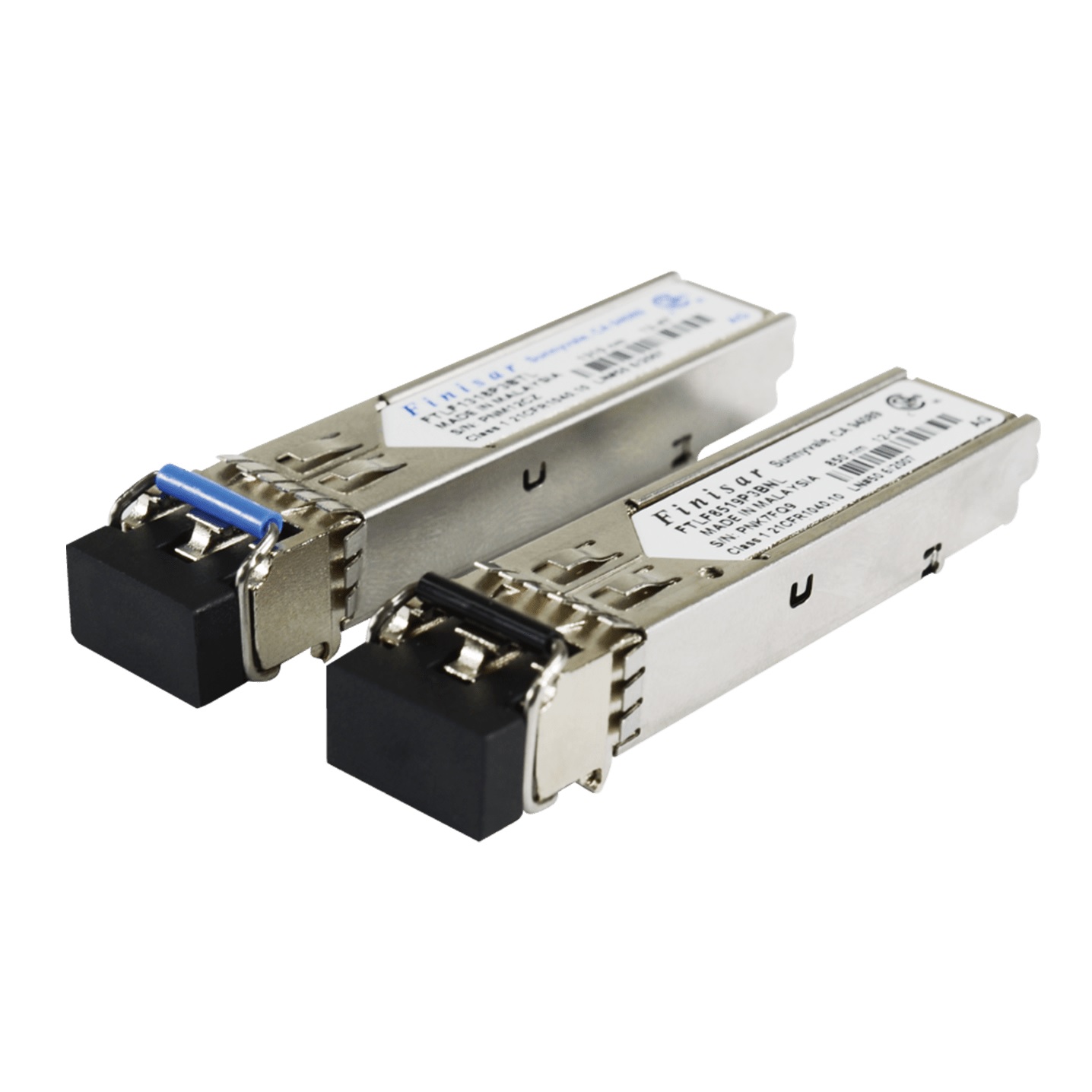

IDIS DA-FTLF1318P3BTL SFP Transceiver
The FTLF1318P3BTL SFP Transceiver from IDIS is a high-performance optical transceiver module designed to support data communication links over single-mode fiber (SMF). It operates at a wavelength of 1310nm, providing a reliable and efficient solution for long-distance data transmission, typically up to 10 kilometers. The transceiver is compatible with the Small Form-factor Pluggable (SFP) multi-source agreement (MSA), ensuring versatility across various networking devices. With a data transfer rate of 1.25 Gbps, it is ideal for fast Ethernet and fiber channel applications. The FTLF1318P3BTL features a duplex LC connector, simplifying installation and maintaining robust optical connections. It operates within a wide temperature range, from -40°C to 85°C, ensuring consistent performance in both standard and industrial environments. The module also boasts low power consumption, typically less than 1 watt, making it energy-efficient for continuous operation. The built-in digital diagnostics monitoring (DDM) feature allows real-time access to operating parameters, such as temperature, voltage, and optical output power, providing enhanced network reliability and management. Its rugged design and advanced laser technology ensure long-lasting durability and high-quality signal transmission. This transceiver meets industry standards, including RoHS compliance, making it environmentally friendly and safe for modern networking infrastructures.
Key Features
- Up to 10 km on 9/125μm SMF
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- 1310nm Fabry-Perot laser transmitter
- Compatibility with DH Series
$152.00 inc GST +3 Year Warranty & Support
The IDIS DA-FTLF1318P3BTL SFP Transceiver is a compact and efficient module designed for long-distance data transmission over single-mode fiber (SMF). It operates at a wavelength of 1310nm and supports a maximum transmission distance of up to 10 kilometers, making it ideal for high-performance networking applications. This transceiver provides a data rate of 1.25 Gbps, which makes it suitable for Gigabit Ethernet and fiber channel networks. Its compatibility with the SFP MSA (Multi-Source Agreement) ensures broad interoperability with a wide range of networking equipment. The module uses a duplex LC connector for easy integration into existing fiber infrastructure and offers reliable signal quality. It is designed to operate in a wide temperature range, from -40°C to 85°C, which allows it to function efficiently in harsh industrial environments as well as typical office settings. With low power consumption, typically below 1 watt, the transceiver is energy-efficient, reducing operational costs. The integrated digital diagnostics monitoring (DDM) provides real-time monitoring of parameters like temperature, voltage, and optical power, which helps maintain the stability and reliability of the network. The FTLF1318P3BTL also meets stringent environmental regulations, including RoHS compliance, ensuring it is safe for use in various global markets. This robust transceiver is designed for long-term durability, providing high-performance data links in diverse networking applications.

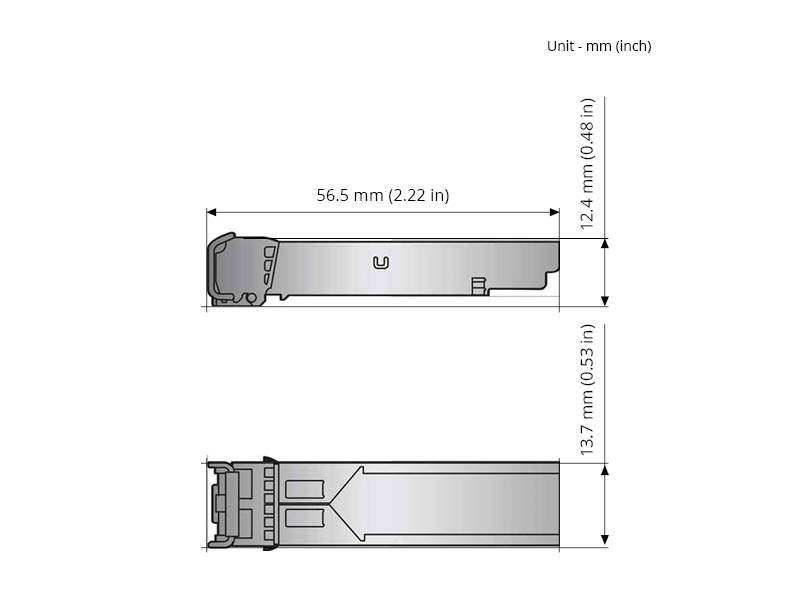

Dimension
Technical Specifications
| SFP TRANSCEIVER | |
| Optical Center Wavelength | 1265 to 1600nm |
| Output Pot.Power | -9.5 to -3 dBm |
| Average RX Sensitivity @ 1.25Gbs | -19 |
| Data Rate | 1.062Gb/s to 1.25Gb/s |
| General | |
| Diemensions(W x H x D) | 13.7mm x 12.4mm x 56.6mm (0.5″ x 0.5″ x 2.2″) |
| Weight | 17.5g (0.04lb) |
| Operation Temperature | 0°C to 85°C |
| Approvals | FCC, CE, KC |
