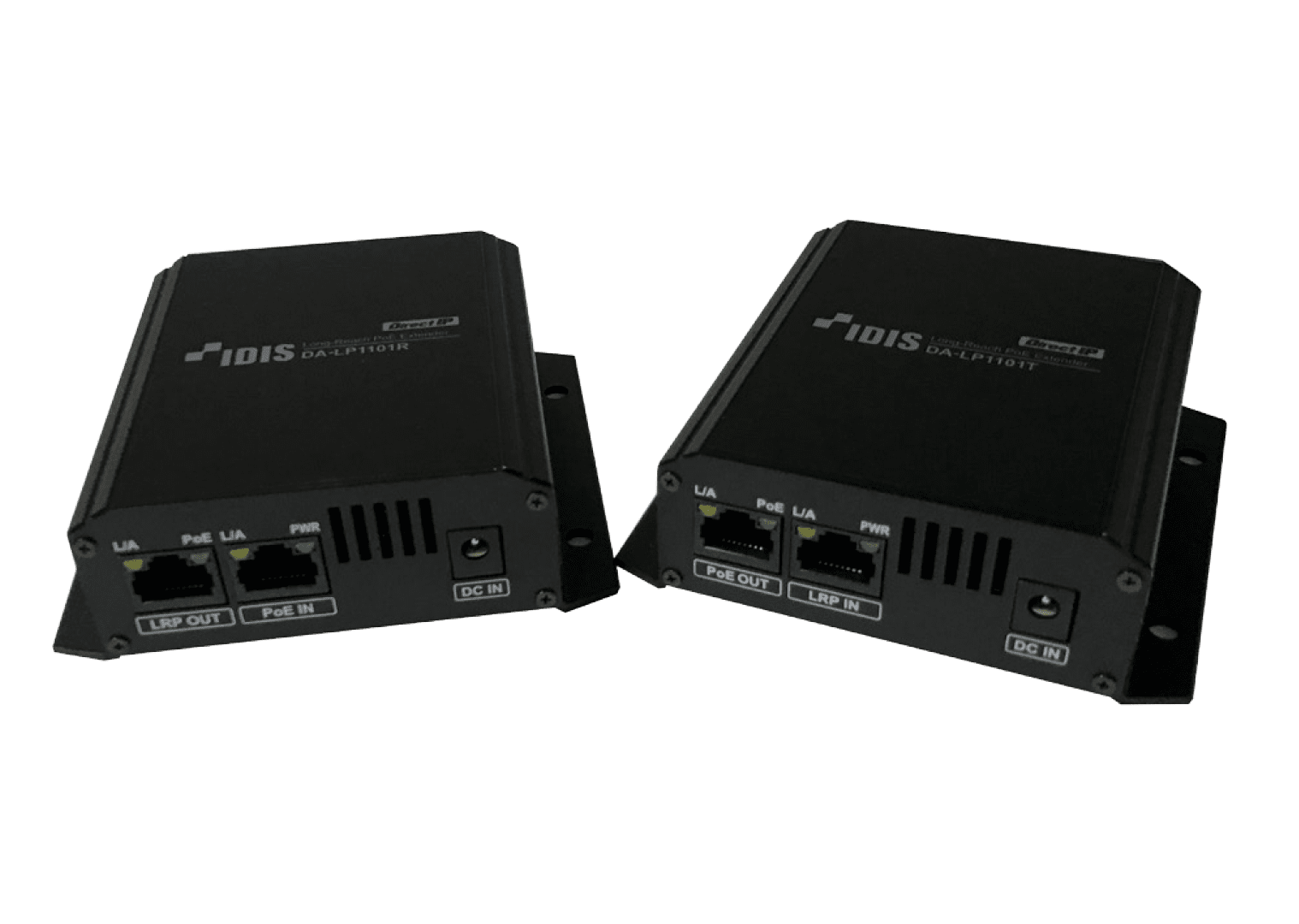

IDIS DA-LP1101T Long Reach PoE Transmitter Cam End
The IDIS DA-LP1101T Long Reach PoE Transmitter Cam End is a reliable solution designed to extend Power over Ethernet (PoE) and data transmission beyond the standard 100-meter limit of Ethernet cabling. This extender allows users to achieve up to 500 meters of data transmission when used with Cat5e or higher cables, making it ideal for installations in large buildings, parking lots, and other expansive areas where longer cable runs are required. It supports both PoE and PoE+ (802.3af/at standards), providing ample power to connected devices like IP cameras, access control systems, and other networked equipment. The unit requires no external power source, as it is powered directly from the PoE injector or switch, simplifying installation.
With plug-and-play functionality, the DA-LP1101T eliminates the need for complex configuration or additional software. Its compact and durable design ensures reliability in various environmental conditions, with the ability to function effectively in temperatures ranging from -10°C to 50°C. The extender also includes built-in surge protection, which safeguards connected devices from potential electrical damage caused by power spikes. This ensures long-term stability and reduces maintenance requirements for network systems. Additionally, its cost-effectiveness makes it a practical choice for enhancing network infrastructure without the need for significant upgrades.
Key Features
- Up to 500meters PoE transmission between devices using UTP cabling
- Up to 700meters DATA transmission between equipments using UTP cabling
- Plug-and-play without any required PC setting
- Supports 1Gbps / IEEE802.3at for PoE Injector
- Supports 1Gbps / IEEE802.3at / 100meters for PoE Repeater
$203.00 inc GST +3 Year Warranty & Support
The IDIS DA-LP1101T Long Reach PoE Extender is a high-performance solution designed to extend both data and power transmission up to 500 meters over Ethernet, surpassing the typical 100-meter limit. It is compatible with Cat5e or higher cabling, making it ideal for large-scale installations such as in campuses, warehouses, or industrial sites. Supporting both PoE and PoE+ standards (802.3af/at), the extender efficiently powers a range of devices, including IP cameras and access control systems, without requiring additional power sources. Its plug-and-play design allows for quick and hassle-free deployment, eliminating the need for complex setup or additional software. The device’s robust construction ensures reliable performance in harsh environmental conditions, with an operating temperature range of -10°C to 50°C. Integrated surge protection adds an extra layer of security by preventing damage from power surges, thus enhancing the longevity of the connected devices. The DA-LP1101T also offers a cost-effective alternative to installing new cabling or network infrastructure upgrades. Its compact size makes it easy to integrate into existing systems without taking up much space, while maintaining high-quality data transmission and power delivery. Additionally, the device can be used in various outdoor settings, providing flexibility for extending network coverage in remote areas.
Dimension
Technical Specifications
| PoE INJECTOR / REPEATER FUNCTION | |
| port | RJ45 x1 with PD RJ45 x1 with PSE |
| connectivity | RJ45, Auto-MDI/MDI-X Sensing |
| Power Input | IEEE 802.3at, 48 ~ 56V DC |
| Power Output | Max. 720mA |
| PoE Standard | IEEE 802.3at PD IEEE 802.3at PSE |
| PSE Budget | up to 30W |
| Speed | 10/100/1000Mbps |
| LONG REACH PoE EXTENDER FUNCTION | |
| port | RJ45 x1 with PD RJ45 x1 with PSE |
| connectivity | RJ45, Auto-MDI/MDI-X Sensing |
| Power Intput | IEEE 802.3at, 48 ~ 56V DC |
| Power Output | Max. 720mA |
| PoE Budget | Up to 30W(Depending on Cable Distance and Power Input) |
| cable | UTP CAT5E or Above |
| Speed | 10/100Mbps |
| LEDs and BUTTON | |
| Link Status LED | 2 Yellow LED(Link/Activity LED per Ethernet port) |
| PoE Status | 1 Green LED(PSE LED) |
| Reset Button | None |
| Power LED | 1 Green LED |
| GENERAL | |
| Dimensions (W x H x D) | 104 x 34 x 96(mm) |
| Unit Weight | 226g |
| Operating Temperature | -10℃ ~ 50℃ |
| Operating Humidity | 0% ~ 90% |
| Power Input | 56VDC |
| Power Consumption | 56V=, 0.786A, 44W |
| Approvals | KC, CE, FCC |
