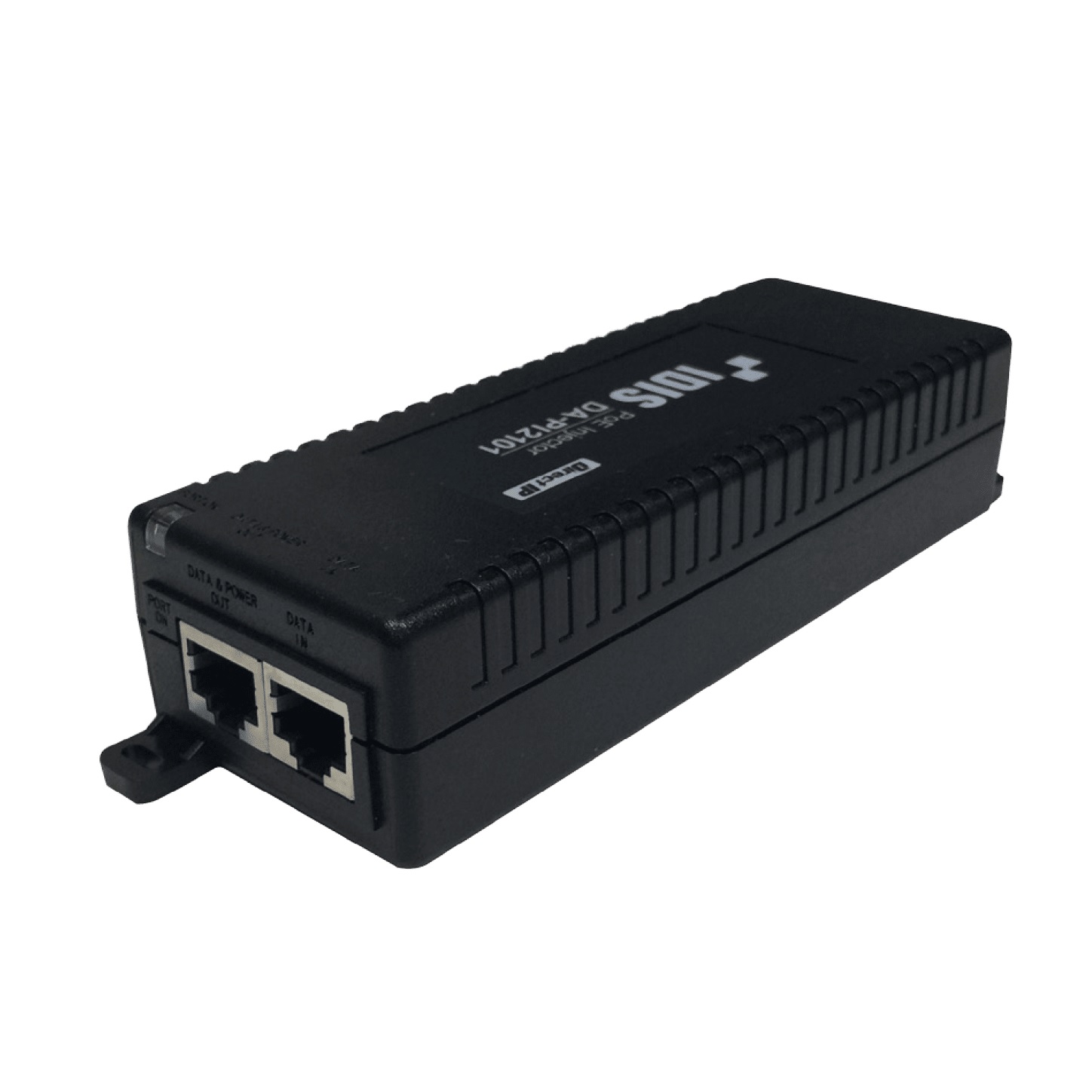

IDIS DA-PI2101 Single Port PoE Injector
The IDIS DA-PI2101 is a Single Port PoE Injector designed to provide efficient power delivery to network devices such as IP cameras over a single Ethernet cable. It supports IEEE 802.3af/at standards, ensuring compatibility with various PoE-enabled devices. This injector simplifies installation by eliminating the need for separate power cables, reducing clutter and costs for users. It delivers up to 30W of power, making it suitable for high-powered devices like surveillance cameras and wireless access points. The compact design allows it to be easily integrated into different environments without taking up much space. It offers overcurrent, overvoltage, and short circuit protection, ensuring safe and reliable operation. With its plug-and-play capability, installation is straightforward, requiring minimal technical expertise. The injector operates at temperatures ranging from 0°C to 40°C, making it ideal for indoor use. It supports gigabit data transfer, ensuring high-speed communication between connected devices. The DA-PI2101 is an excellent solution for users looking to extend network power without extensive infrastructure modifications.
Key Features
- Up to 30W of PoE Power feeding on 2-pairs
- Compatible with IEEE 802.3af, IEEE 802.3at
- Protects low power devices to receive only the power they need
- Automatic detection and protection of non–standard ethernet terminals
- Parallel slide-in design for easy installation
$152.00 inc GST +3 Year Warranty & Support
The IDIS DA-PI2101 Single Port PoE Injector is an essential device for powering network devices such as IP cameras and VoIP phones through a single Ethernet cable. It supports the IEEE 802.3af and 802.3at PoE standards, ensuring wide compatibility with various PoE-enabled equipment. This injector can deliver up to 30W of power, making it ideal for devices that require a higher power output. It simplifies the setup process by eliminating the need for separate power sources, reducing installation time and complexity. The DA-PI2101 features built-in safety mechanisms, including overcurrent, overvoltage, and short circuit protection, which safeguard both the injector and connected devices. Its compact form factor ensures it can be placed discreetly in any installation environment without occupying much space. The injector is designed for easy plug-and-play installation, requiring no advanced configuration or technical expertise. It supports gigabit Ethernet speeds, ensuring fast data transfer between devices for seamless connectivity. The device operates reliably within a temperature range of 0°C to 40°C, making it suitable for indoor applications. Overall, the DA-PI2101 is a cost-effective solution for extending power and data over long distances without additional cabling or infrastructure.

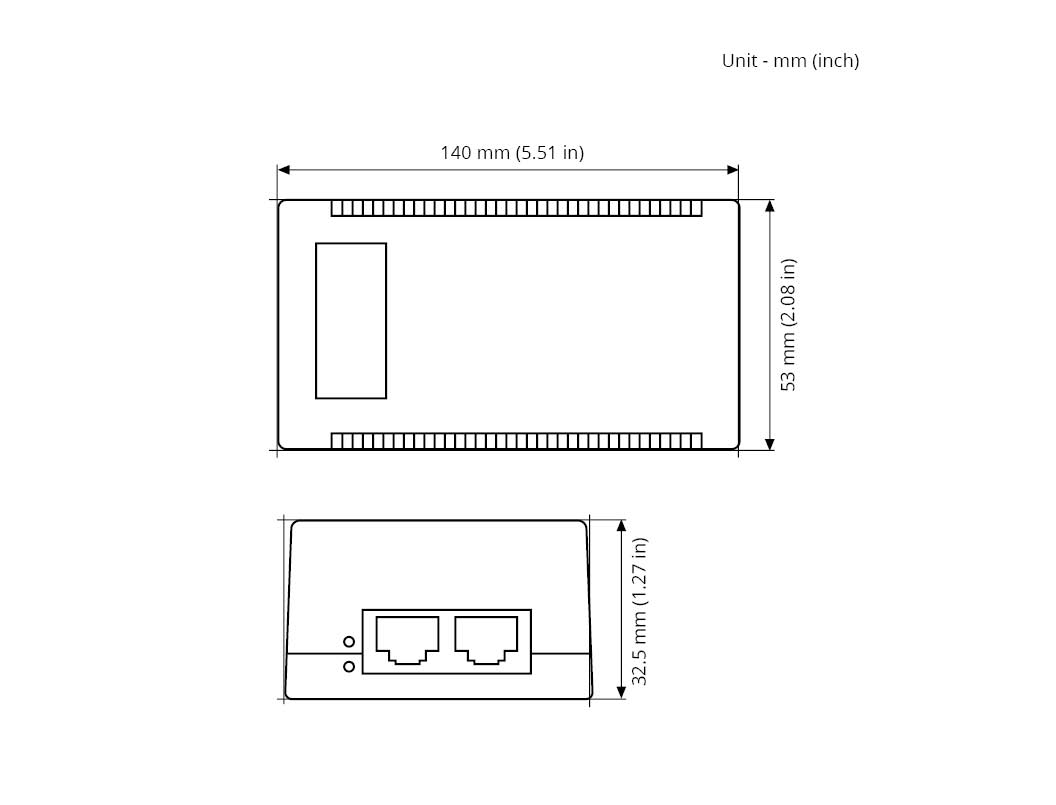

Dimension
Technical Specifications
| RJ45 Ethernet Interface_DATA I | |
| port | 1 ch |
| Connectivity | RJ45, Auto-MDI/MDI-X sensing |
| Wire Title | CAT5 or better |
| Distance | Up to 100m |
| Speed | 10/100/1000 BASE T |
| RJ45 Ethernet Interface_PoE | |
| port | 1 ch |
| Pin Assignment and Polarity | 4/5( ), 7/8(-) |
| PSE Power | 55V DC, Max. 30W |
| Distance | Up to 100m |
| Speed | 10/100/1000 BASE T |
| Supported Standards | IEEE 802.3at |
| General | |
| Diemensions(W x H x D) | 53mm x 32.5mm x 140mm (2.1″ x 1.3″ x 5.5″) |
| Weight | 200g (0.44lb) |
| Operation Temperature | -15°C ~ 45°C (5℉ ~ 113℉) |
| Power Input | 100 ~240V AC, 0.8A |
| Approvals | FCC, CE, KC |
