IDIS DC-D2511WER Lite 5MP 2.8mm Lens H.265 TWDR, IR 20M, IP67, IK10 Turret Camera
The IDIS DC-D2511WER is a 5MP IR dome camera that is NDAA-compliant and part of the IDIS Lite series. It features a 1/2.8″ SONY IMX 335 Starvis CMOS sensor, providing excellent low-light performance. The camera supports triple streaming, allowing simultaneous video feeds in different formats such as H.265, H.264, and MJPEG. With its 2.8mm fixed lens and 127.9º field of view, it ensures wide area coverage. The infrared capability allows visibility up to 20 meters in low-light conditions.
The camera’s non-reflection and heat-radiation structures improve durability and image clarity, while its micro SDHC/SDXC support enables local storage. It’s equipped with vandal-resistant (IK10) and weatherproof (IP67) ratings, making it suitable for outdoor environments. Additionally, it supports Power over Ethernet (PoE) for simplified installation and ONVIF compliance, allowing integration with third-party systems.
Key Features
- IDIS Lite Series
- 1/2.8 SONY IMX 335 Starvis CMOS Sensor
- 5MP Resolution
- Triple Streaming
- Fixed lens: 2.8mm (F=1.6)
- Non-reflection Structure
- Heat-radiation Structure
- 2 High Power LED
- Micro SDHC/SDXC Support
- H.265 (Main profile), H.264 (High, Main, Baseline profile), MJPEG
- POE (IEEE 802.3af)
- ONVIF Support
$243.00 inc GST +3 Year Warranty & Support
5MP
Fixed Lens
Weather Proof
IR LED
ONVIF
NDAA Compliant
The IDIS DC-D2511WER is a 5MP IR dome camera designed for robust surveillance in various environments. It features a 1/2.8″ SONY IMX 335 Starvis CMOS sensor, delivering high-quality 5MP resolution images, even in low light. The camera supports triple streaming with H.265, H.264, and MJPEG compression, ensuring efficient bandwidth usage. Its fixed lens offers a 127.9° diagonal field of view, making it suitable for wide-area monitoring. The DC-D2511WER is equipped with two high-power IR LEDs, providing night vision capability up to 20 meters. The camera is built with a vandal-proof IK10 casing and is IP67 rated, meaning it is both weatherproof and highly durable. It supports Power over Ethernet (PoE), has microSDHC/SDXC card storage options, and is compliant with ONVIF standards, making it compatible with various video management systems. Additionally, its advanced features include true Wide Dynamic Range (WDR) and 2D/3D noise reduction, ensuring clear image capture in challenging lighting conditions.

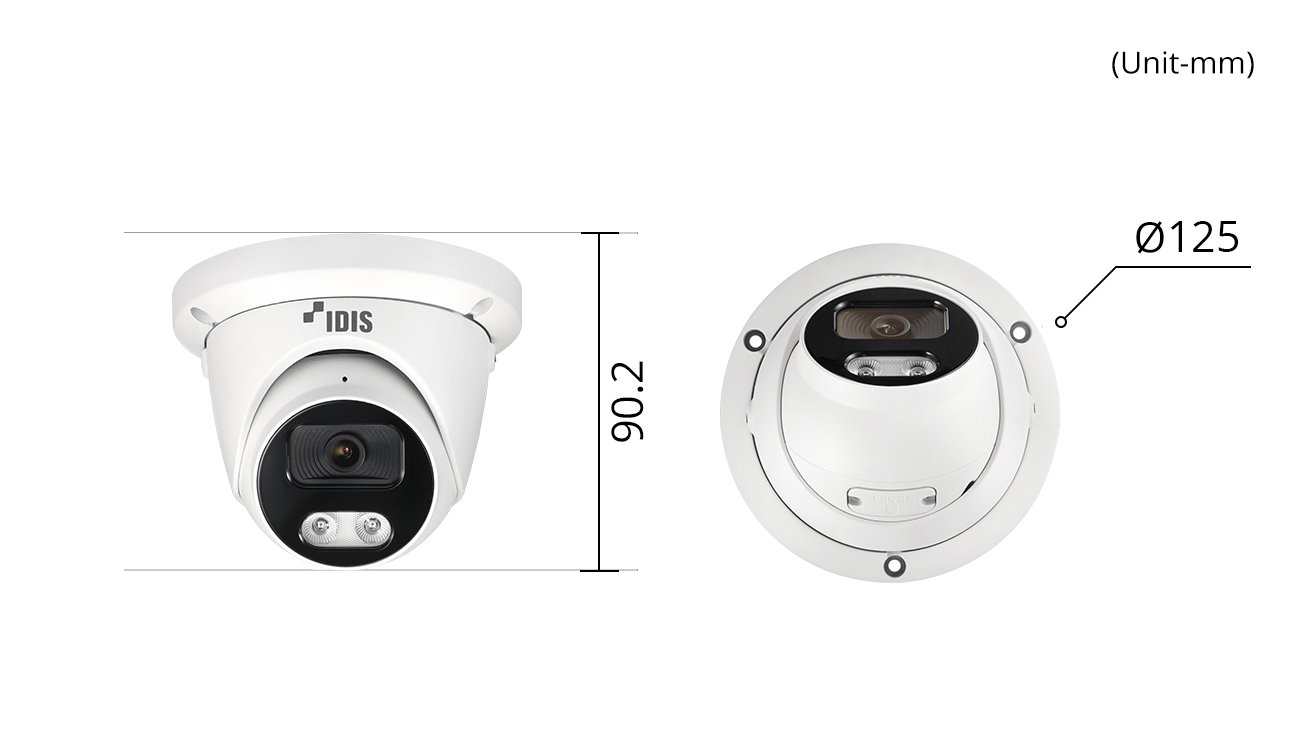

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels | 2704 x 2104 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed Lens |
| Focal Length | f=2.8mm |
| F No. | F=1.6 |
| Iris Control | Fixed |
| Field of View | 127.9º(D), 106.9º(H), 56.9º(V) |
| Shutter Speed Control | Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode | Auto / Day(Color) / Night(BW) / External |
| Infrared Distance | 20 m |
| Auto White Balance Mode | Automatic, Manual |
| Noise Reduction | 2DNR/3DNR |
| Backlight Correction | 120dB (WDR) |
| Network | |
| Video Compression | H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support | API, ONVIF Profile S/T Compliant |
| Video Frame Rate | Up to 30fps@2192x1944p |
| Video Resolution | 2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) | Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security | Multi User Authority, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | micro SDHC/SDXC |
| Alarm and Event | |
| Event In | On boot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification | E-mail, FTP |
| Audio | – |
| Alarm Control | – |
| General | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operation Temperature | -10°C ~ +50°C |
| Operation Humidity | 0% ~ 95% |
| Electrical | |
| Power Source | DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 3.82W |
| Approval | KC, CE, FCC |
| Mechanical | |
| Dimension | Ø125.0 x 90.2(H)mm |
