IDIS DC-D2531WER Lite 5MP 2.7-13.5mm MFZ Lens H.265 TWDR, IR 25m, IP67,IK10 Turret Camera
The IDIS DC-D2531WER is a 5MP IR turret camera from the IDIS Lite Series, featuring a 1/2.8″ SONY IMX 335 Starvis CMOS sensor for high-quality imaging. It supports triple streaming with H.265, H.264, and MJPEG formats. The camera comes with a motorized 2.7-13.5mm lens, 25m infrared range, and offers WDR (120dB) for improved visibility in diverse lighting. Designed for outdoor use, it has IP67 weatherproof and IK10 vandal-proof ratings. Additional features include PoE support, micro SD card storage, and audio/alarm input/output functionality.
Key Features
- IDIS Lite Series
- 1/2.8 SONY IMX 335 Starvis CMOS Sensor
- 5MP Resolution
- Triple Streaming
- Lens: 2.7-13.5mm MFZ Lens (F=1.6-3.3±10%)
- Non-reflection Structure
- Heat-radiation Structure
- 2 High Power LED
- H.265 (Main profile), H.264 (High, Main, Base line profile), MJPEG
- Alarm In/Out Support
- Audio In/Out Support
- Micro SDHC/SDXC Support
- POE (IEEE 802.3af)
- ONVIF Support
$304.00 inc GST +3 Year Warranty & Support
5MP
Motorized Lens
Weather Proof
IR LED
ONVIF
NDAA Compliant
The DC-D2531WER from IDIS is a high-performance 5MP IR dome camera that offers excellent surveillance capabilities. It is designed for outdoor use with an IP67 weatherproof rating and IK10 impact resistance, making it highly durable in harsh conditions. The camera features a varifocal lens that provides flexibility in capturing detailed footage over varying distances. It uses a Sony Starvis CMOS sensor to deliver high-quality images with true WDR (Wide Dynamic Range) to handle challenging lighting conditions. The camera also supports infrared (IR) illumination, providing clear night vision up to 30 meters. This model integrates seamlessly with IDIS NVRs, using ONVIF for easy configuration and compatibility with third-party systems. Additionally, its advanced motion detection and smart event handling make it ideal for both real-time monitoring and recording. The camera supports edge recording with an SD card slot, ensuring continuous video capture even during network outages. Lastly, its user-friendly setup and intuitive interface make it a cost-effective yet powerful solution for small to medium-sized surveillance applications.

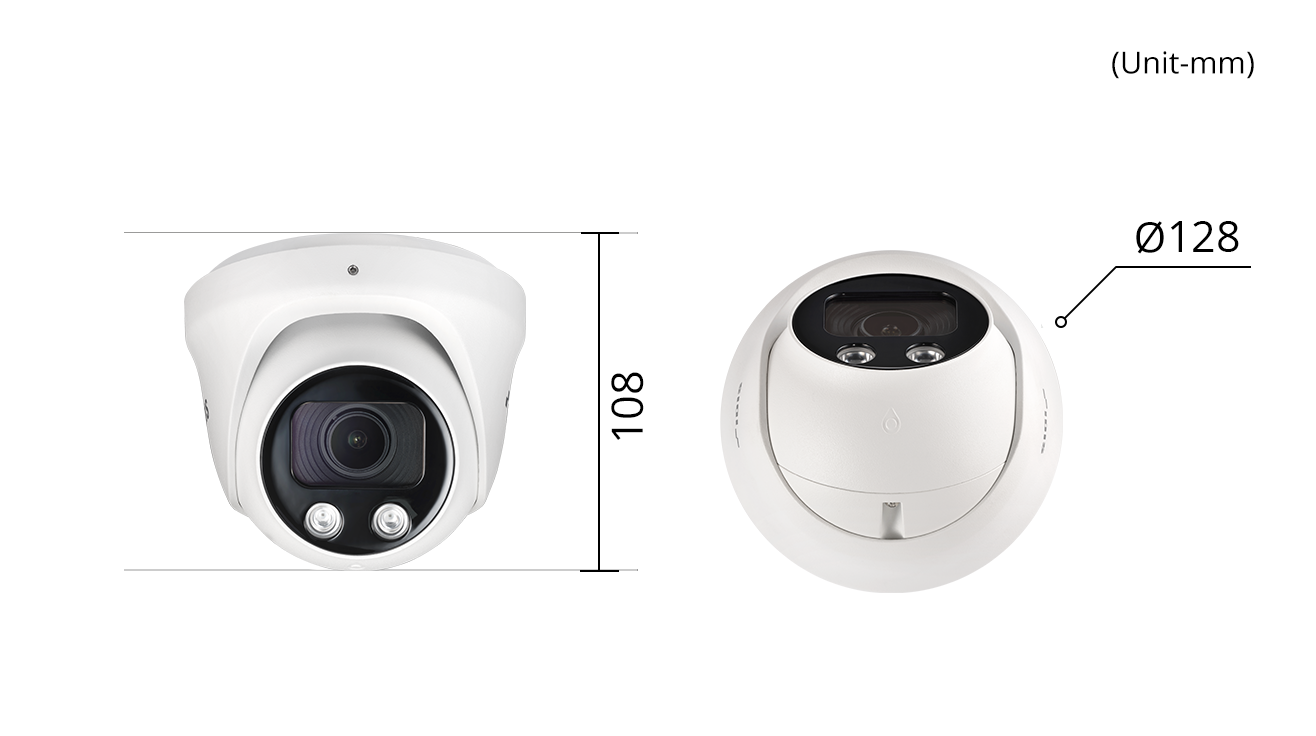

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels | 2704 x 2104 |
| Scanning Mode | Progressive Scan |
| Lens Type | MFZ Lens |
| Focal Length | f=2.7-13.5mm |
| F No. | F=1.6-3.3±10% |
| Iris Control | Fixed |
| Field of View | 130.9º(D), 108.1º(H), 56.3º(V) |
| Shutter Speed Control | Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode | Auto / Day(Color) / Night(BW) / External |
| Infrared Distance | 25 m |
| Auto White Balance Mode | Automatic, Manual |
| Noise Reduction | 2DNR/3DNR |
| Backlight Correction | 120dB (WDR) |
| Network | |
| Video Compression | H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support | API, ONVIF Profile S/T Compliant |
| Video Frame Rate | Up to 30fps@2592x1944p |
| Video Resolution | 2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) | Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security | Multi User Authority, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | micro SDHC/SDXC |
| Alarm and Event | |
| Event In | Onboot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification | E-mail, FTP |
| Audio | Line-In/Line-Out |
| Alarm Control | Alarm-In 1/Alarm-Out 1 |
| General | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 0% ~ 95% |
| Electrical | |
| Power Source | DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 6.1W |
| Approval | KC, CE, FCC |
| Mechanical | |
| Dimension | Ø128 x 108(H)mm |
