IDIS DC-D2531WR Lite 5MP 2.7-13.5mm MFZ LENS H.265 TWDR, IR 20M, IP67, IK10 Dome Camera
The IDIS DC-D2531WR is a 5MP IR dome camera designed for robust outdoor surveillance, offering exceptional image quality with a Sony IMX 335 Starvis CMOS sensor. It supports triple streaming and provides a wide field of view (130.9° diagonal). With a motorized zoom lens (2.7-13.5mm), the camera adjusts focus remotely for convenience. It’s equipped with infrared LEDs for up to 25 meters of night vision and features H.265, H.264, and MJPEG compression formats. Compliant with NDAA, it supports PoE and ONVIF, ensuring compatibility and flexibility.
Key Features
- IDIS Lite Series
- 1/2.8 SONY IMX 335 Starvis CMOS Sensor
- 5MP Resolution
- Triple Streaming
- Lens: 2.7-13.5mm MFZ Lens (F=1.6-3.3±10%)
- Non-reflection Structure
- Heat-radiation Structure
- Bubble color: IR Pass Black
- 4 High Power LED
- H.265 (Main profile), H.264 (High, Main, Base line profile), MJPEG
- Alarm In/Out Support
- Audio In/Out Support
- Micro SDHC/SDXC Support
- POE (IEEE 802.3af)
$319.00 inc GST +3 Year Warranty & Support
5MP
Motorized Lens
Weather Proof
IR LED
ONVIF
NDAA Compliant
The IDIS DC-D2531WR is a 5MP IR dome camera that offers high-quality surveillance with a robust feature set. It uses a 1/2.8″ SONY IMX 335 Starvis CMOS sensor, delivering excellent image resolution in various lighting conditions, including low light, thanks to its integrated infrared (IR) technology with a 25-meter range. The camera supports H.265, H.264, and MJPEG compression formats, providing flexibility for different bandwidth and storage needs. It features a motorized focus lens with a focal length of 2.7-13.5mm, allowing for easy adjustments and an optimal field of view of up to 130.9°.
The camera is designed for durability with a heat-radiation structure and a non-reflective, IR-pass black bubble to enhance its performance in outdoor environments. It is compliant with NDAA, has PoE support for simplified installation, and supports ONVIF for compatibility with third-party systems. Additional features include support for alarm in/out and audio in/out, along with onboard microSDHC/SDXC storage, making it versatile for various security applications.

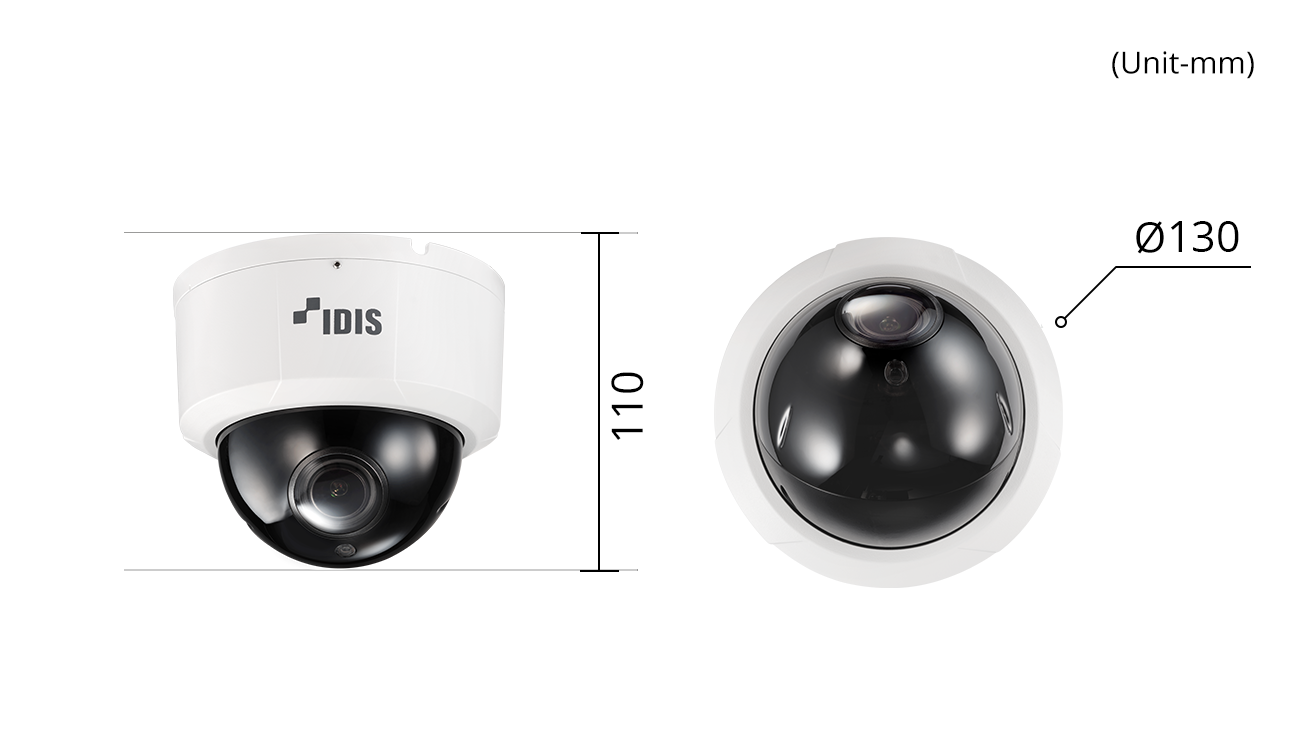

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels | 2704 x 2104 |
| Scanning Mode | Progressive Scan |
| Lens Type | MFZ Lens |
| Focal Length | f=2.7-13.5mm |
| F No. | F=1.6-3.3±10% |
| Iris Control | Fixed |
| Field of View | 130.9º(D), 108.1º(H), 56.3º(V) |
| Shutter Speed Control | Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode | Auto / Day(Color) / Night(BW) / External |
| Infrared Distance | 25 m |
| Auto White Balance Mode | Automatic, Manual |
| Noise Reduction | 2DNR/3DNR |
| Backlight Correction | 120dB (WDR) |
| Network | |
| Video Compression | H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support | API, ONVIF Profile S/T Compliant |
| Video Frame Rate | Up to 30fps@2592x1944p |
| Video Resolution | 2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) | Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols | TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security | Multi User Authority, IP Filtering, HTTPS |
| Ethernet | RJ45 (10/100BASE-T) |
| Edge Storage | micro SDHC/SDXC |
| Alarm and Event | |
| Event In | Onboot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification | E-mail, FTP |
| Audio | Line-In/Line-Out |
| Alarm Control | Alarm-In 1/Alarm-Out 1 |
| General | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operation Temperature | -10°C ~ +60°C |
| Operation Humidity | 0% ~ 95% |
| Electrical | |
| Power Source | DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 6.1W |
| Approval | KC, CE, FCC |
| Mechanical | |
| Dimension | Ø130 x 110(H)mm |
