IDIS DC-D3C33HRX 12MP Vandal-Resistant IR Dome Camera with Heater
The IDIS DC-D3C33HRX is a high-performance 12MP Vandal-Resistant IR Dome Camera designed for challenging environments, offering superior image clarity and durability. It features a built-in heater, allowing it to function reliably in extreme temperatures ranging from -40°C to 60°C. The camera’s 12MP resolution ensures detailed video capture, making it ideal for large area surveillance or critical security applications. Equipped with IR LEDs, it delivers clear images even in complete darkness, up to 30 meters. Its vandal-resistant design, meeting IK10 standards, ensures the camera can withstand physical tampering or harsh weather conditions. This model supports H.265, H.264, and MJPEG codecs, reducing bandwidth and storage needs without compromising image quality. The camera’s True Wide Dynamic Range (WDR) at 120dB enhances visibility in high-contrast lighting conditions. It also offers Advanced Motion Detection and Tamper Alarm, enhancing security monitoring. The DC-D3C33HRX integrates seamlessly with IDIS’s DirectIP solution, providing easy installation and management. Its IP67 rating makes it highly resistant to water and dust, ensuring reliable operation in outdoor environments.
Key Features
- Easy installation with DirectIP NVR
- 12MP (4000 x 3000) resolution
- Motorized Vari-focal lens (f=4.5 – 10mm)
- micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30m / 98.4 ft, 6 ea)
- 3-axis mechanical design for installation
- Supports ONVIF
$1,204.00 inc GST +3 Year Warranty & Support
12MP
Motorized Lens
Heater
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
The IDIS DC-D3C33HRX 12MP Vandal-Resistant IR Dome Camera with Heater is engineered to provide exceptional video surveillance in both indoor and outdoor environments. Its 12MP resolution delivers ultra-high-definition video, ensuring every detail is captured with precision. The camera includes a built-in heater, enabling reliable operation in freezing conditions down to -40°C, making it suitable for harsh climates. With its IK10 vandal-resistant housing, it’s designed to withstand impact and tampering, ensuring longevity and durability in high-risk areas. The camera features integrated infrared LEDs, offering night vision capabilities up to 30 meters, ensuring clear visibility even in total darkness. Its True Wide Dynamic Range (WDR) function optimizes image clarity in scenes with both bright and dark areas, balancing exposure. It supports multiple video compression formats, including H.265 and H.264, ensuring efficient storage and bandwidth management. The DC-D3C33HRX also includes intelligent video analytics, such as motion detection and tamper alarms, enhancing proactive security. Its IP67 weatherproof rating guarantees protection against water and dust, making it ideal for outdoor installations. Designed for easy integration, it works seamlessly with the IDIS DirectIP platform for simplified installation and operation.

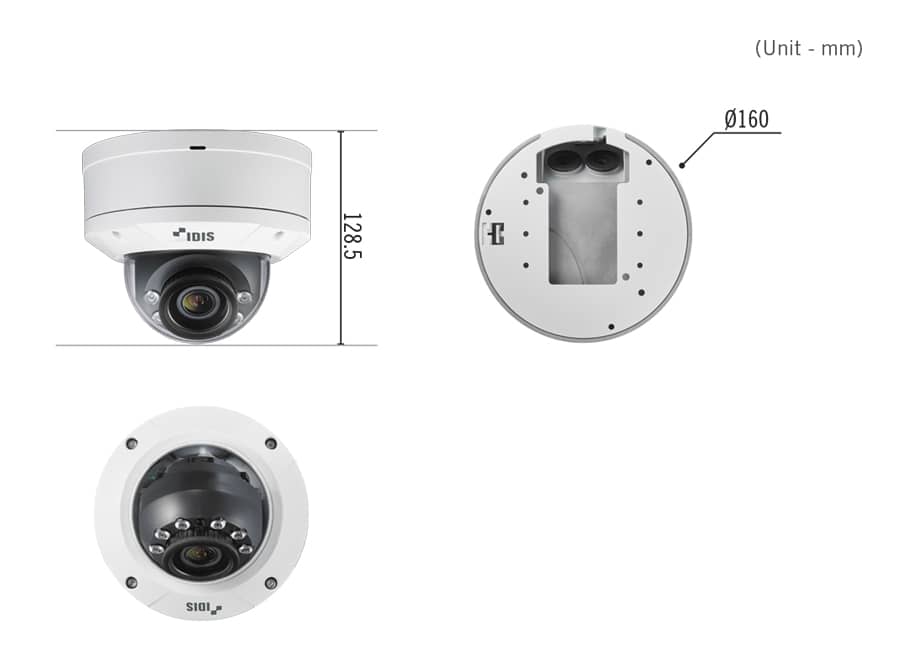

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/1.7” CMOS |
| Max. Resolution | 4000 x 3000 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=4.5 -10mm |
| Aperture | F1.6 – 2.6 |
| Iris Control | P-Iris |
| Angular Field of View | [8MP mode] Wide : 90.2°(H), 48.5°(V), 106.2°(D), Tele : 41.6°(H), 23.3°(V), 47.8°(D) [12MP mode] Wide : 94.6°(H), 68.5°(V), 125.2°(D), Tele : 43.4°(H), 32.4°(V), 54°(D) |
| Pan/Tilt/Rotate Range | Pan: -176° ~ 176°, Tilt: 0° ~ 65°, Rotate: -90° ~ 90° |
| Min. Illumination | COLOR : 0.3 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m / 98.4 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Image Stabilizer | – |
| De-fog | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 BNC(Accessory) |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 15ips : 4000 x 3000(WDR) 30ips : 3840×2160(WDR) |
| Supports Resolution | 12MP mode : 4000×3000, 2592×1944, 1280×960, 640×480, 320×240 8MP mode : 3840 x 2160 , 1920×1080, 1280×720, 640×360, 320×180 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Pre-recorderd Voice Alert-IDIS protocol | Off / On |
| Audio In/ Out | 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.0A, 12W PoE, IEEE 802.3af(Class 3) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions (Ø x H) | Ø160mm x 128.5mm (Ø6.30” x 5.06”) |
| Weight | 1.21 kg |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 |
|
Celling |
DA-MA2100
Model:DA-MA2100 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
DA-MA2100
Model: DA-MA2100 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
|
ETC |
Sun Shield
Model: DA-SS1100 |
