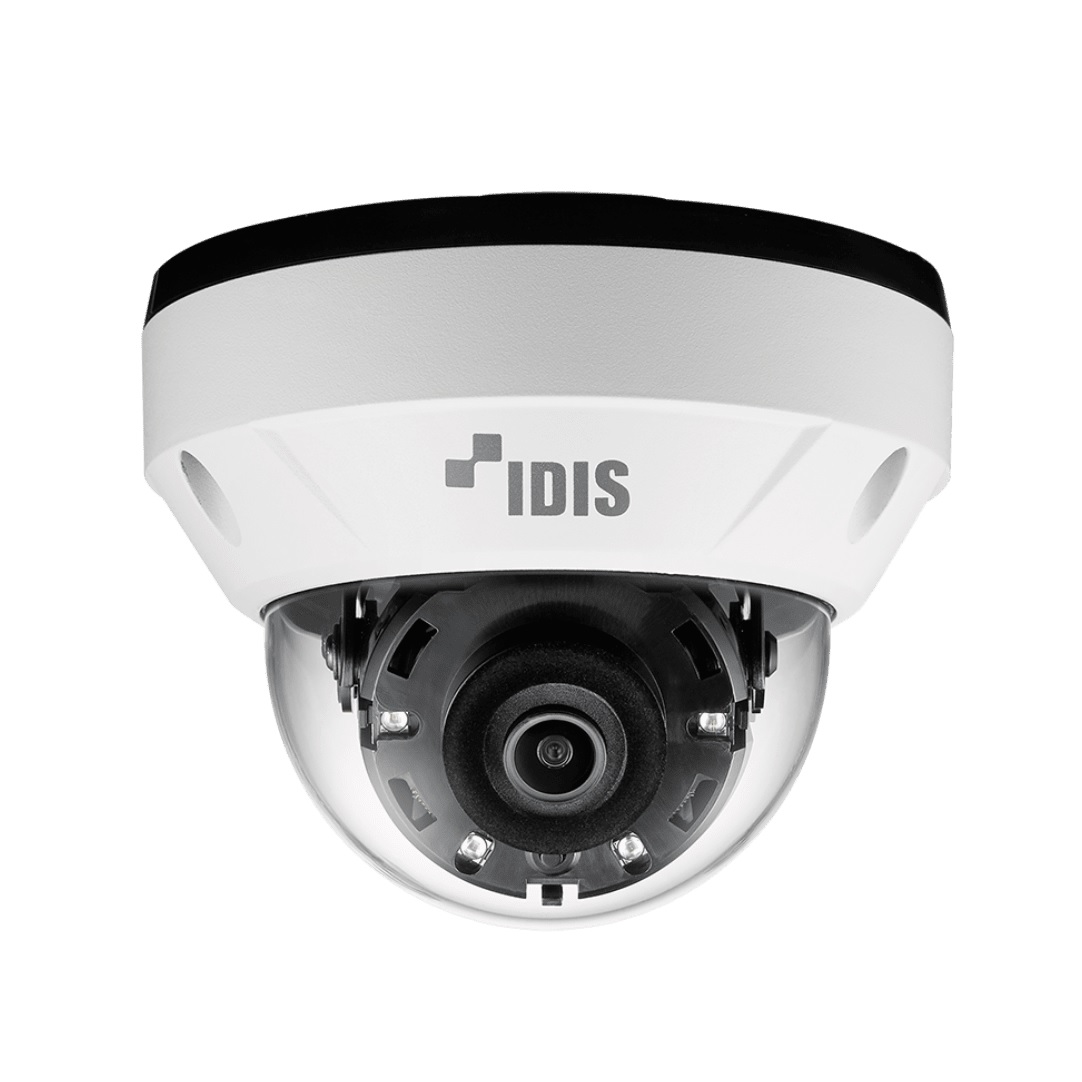

IDIS DC-D4216WRX 2.8mm Full HD Vandal-Resistant IR Dome Camera, NDAA Compliant
The IDIS DC-D4216WRX 2.8mm Full HD Vandal-Resistant IR Dome Camera offers high-definition video quality, providing clear and detailed surveillance footage in Full HD 1080p resolution. It is equipped with a 2.8mm fixed lens, delivering a wide-angle view ideal for monitoring large areas with fewer cameras. The camera’s rugged, vandal-resistant housing ensures durability and protection against tampering or damage, making it suitable for both indoor and outdoor installations. Its advanced infrared (IR) LEDs provide excellent night vision up to 30 meters, allowing the camera to capture clear images in complete darkness. With True Wide Dynamic Range (WDR) technology, the camera effectively handles challenging lighting conditions, such as areas with strong backlighting or high-contrast environments. The camera is also weather-resistant, featuring an IP67 and IK10 rating, ensuring protection against dust, water, and impact. It supports IDIS Smart Failover technology, which ensures continuous recording even during network interruptions by storing data locally on an SD card. The DC-D4216WRX is compatible with the IDIS DirectIP solution, simplifying installation and management with a plug-and-play setup. Its sleek, compact design allows for discreet installation, making it ideal for applications in schools, retail stores, and public spaces. Additionally, the camera supports multiple streams and codecs, including H.265, to optimize bandwidth and storage efficiency.
Key Features
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- Fixed-focal lens (f=2.8mm)
- micro SD/SDHC/SDXC support
- Two-way audio
- Alarm in / out
- IK10 / IP67 support
- PoE (IEEE 802.3af Class 2)
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30m / 98.4 ft, 4 units)
- 3-axis mechanical design for installation
- Supports ONVIF
$297.00 inc GST +3 Year Warranty & Support
2MP
Fixed Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-D4216WRX 2.8mm Full HD Vandal-Resistant IR Dome Camera is designed to deliver top-tier surveillance performance with 1080p Full HD resolution, ensuring sharp and detailed video capture. Its 2.8mm fixed lens provides a broad field of view, making it ideal for monitoring expansive areas such as parking lots or large public spaces. With its vandal-resistant IK10-rated casing, the camera is built to withstand harsh conditions and deliberate attempts to damage it, making it suitable for high-risk environments. The camera also boasts an IP67 rating, offering complete protection against dust and water ingress, ensuring reliable performance in outdoor conditions. Enhanced night vision is a key feature, with built-in infrared (IR) LEDs that allow the camera to see up to 30 meters in complete darkness. It is equipped with True Wide Dynamic Range (WDR) to manage difficult lighting conditions, delivering clear images even in areas with significant contrast or glare. IDIS Smart Failover technology provides uninterrupted recording by storing data locally during network failures, preventing data loss. The camera seamlessly integrates with IDIS DirectIP systems, making setup and configuration simple through plug-and-play connectivity. Its sleek, dome-shaped design allows for discreet installation in various settings, while its compatibility with H.265 codec technology ensures efficient use of bandwidth and storage. Designed for reliability and ease of use, the DC-D4216WRX is a robust solution for demanding security applications.

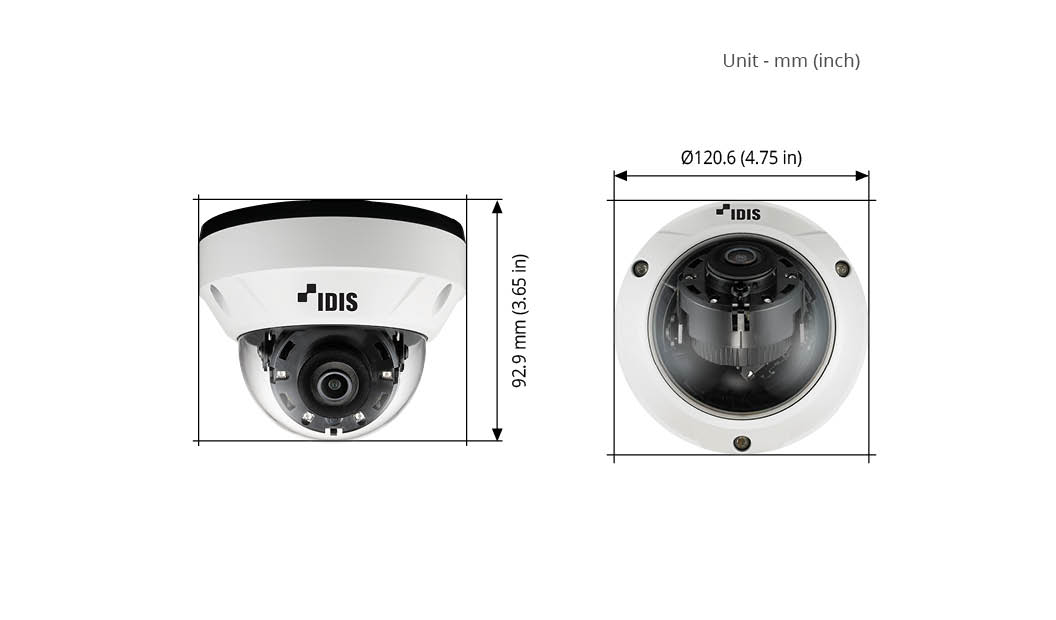

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6º(H), 61.45º(V), 127.3º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -170° ~ 170° |
| Tilt Range | -5° ~ 67.5° |
| Rotate Range | -109° ~ 109° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 2) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 4.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø120.6 x 92.9mm(Ø4.75” x 3.65”) |
| Weight | 0.465kg(1.02lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
JUNCTION BOX
Model:DA-JB4700 or
MOUNT ADAPTER
Model:DA-MA4300 +
WALL MOUNT
Model:DA-WM2050 |
|
Celling |
JUNCTION BOX
Model:DA-JB4700 or
MOUNT ADAPTER
Model:DA-MA4300 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
MOUNT ADAPTER
Model:DA-MA4300 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 or
JUNCTION BOX
Model:DA-JB4700 +
Pole Mount
Model:DA-LM2000 or
JUNCTION BOX
Model:DA-JB4600 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
MOUNT ADAPTER
Model: DA-MA4300 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 or
JUNCTION BOX
Model: DA-JB4700 +
Corner Mount
Model: DA-RM2000 or
JUNCTION BOX
Model: DA-JB4600 +
Corner Mount
Model: DA-RM2000 |
