Artificial Intelligence

LightMaster NIR

2MP

Fixed Lens

Weather Proof

IR LED

AI Embedded

Easy Installation

PoE

IP67

ONVIF

NDAA Compliant

IR Cut Filter Removable
The IDIS DC-D4218WRA 2.8mm H.265 2MP AI Dome Camera (LightMaster NIR) offers exceptional video quality with its 2MP resolution, providing clear and detailed footage. Featuring a 2.8mm lens, it delivers a wide field of view, making it ideal for monitoring expansive areas. Equipped with LightMaster NIR technology, this camera excels in low-light conditions, capturing high-quality images even in near-darkness using near-infrared illumination. Its advanced AI capabilities allow for intelligent video analytics, including intrusion detection, object classification, and line crossing detection, making it a powerful tool for proactive security monitoring. The camera supports H.265 compression, reducing bandwidth and storage needs without compromising video quality. Its robust design includes an IK10 vandal-resistant rating, protecting it from impact or tampering, and an IP67 weatherproof rating ensures reliable performance in harsh outdoor environments. The camera’s two-way audio functionality allows real-time communication, enhancing security operations by enabling remote interaction. Edge-based recording on the camera itself ensures continuous monitoring even during network disruptions, making it a reliable option for critical surveillance needs. Additionally, it supports various mounting options, allowing flexible installation in different locations to suit diverse security requirements. With its advanced features, durability, and AI-powered analytics, the IDIS DC-D4218WRA is an ideal solution for both indoor and outdoor security applications.

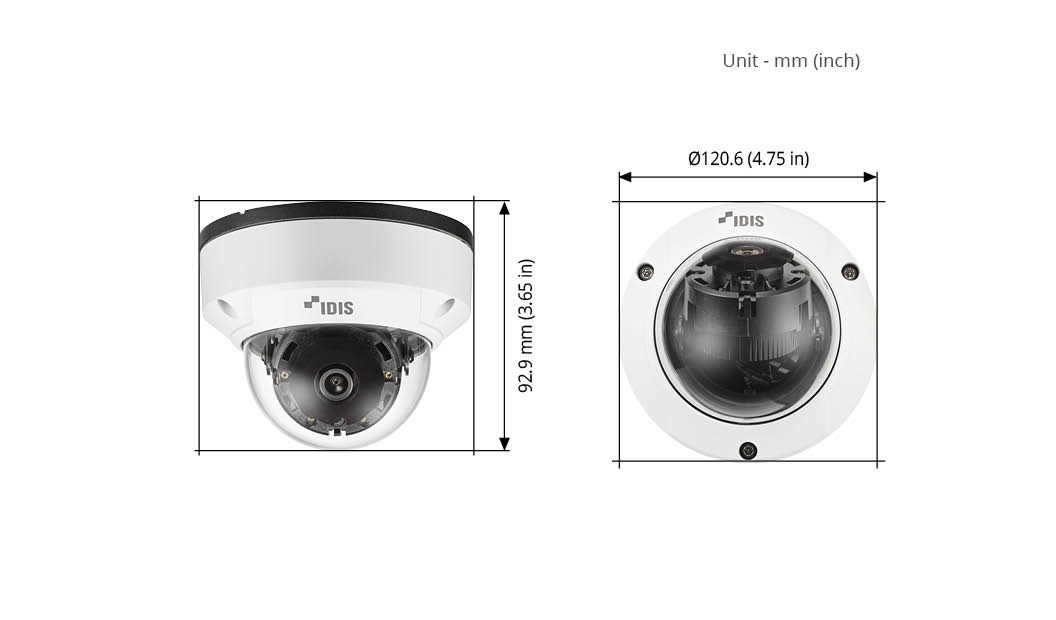

Dimension
Technical Specifications
Video | |
Image Sensor | 1/2.8″ CMOS |
Max. Resolution | 1920 x 1080 |
Scanning Mode | Progressive Scan |
Lens Type | Fixed-focal |
Focal Length | 2.8mm |
Aperture | F1.6 |
Iris Control | Fixed Iris |
Angular Field of View | 105.8º(H), 56.4º(V), 121.2º(D) |
Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0 lux (IR LED ON) |
Dynamic Range | 120dB (True WDR) |
Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
Day and Night | Yes (ICR) |
IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
Backlight Compensation | – |
Mirroring / Pivot | Horizontal / Vertical / Pivot |
Image Stabilizer | – |
De-fog | Yes |
Privacy Masking | 8 Zones |
Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
Video Out | – |
Pan/Tilt/Rotate | |
Pan Range | -170° ~ 170° |
Tilt Range | -5° ~ 67.5° |
Rotate Range | -109° ~ 109° |
Network | |
Video Compression | H.265, H.264 (MP), M-JPEG |
Intelligent Codec | Yes |
Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
Two-way Audio | Yes |
IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
Max. Frame Rate | 60ips : 1920 x 1080 30ips : 1920 x 1080 (WDR) |
Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
Multi-video Streaming | Quadruple Streaming |
Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
Ethernet | RJ45 (10/100BASE-T) |
Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
Alarm and Event | |
Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
Event Notification | Remote S/W, Email (with Image) |
Audio Alarm | Yes |
Audio In / Out | 1 / 1 |
Alarm In / Out | 1 / 1 |
Environmental | |
Vandal Proof Casing | IK10 |
Outdoor Ready | IP67 |
Operating Temperature | -30°C ~ +60°C (-22°F ~ +140°F) *Starting up at above 0°C (32°F) |
Operating Humidity | 0% ~ 90% |
Electrical | |
Power Source | PoE IEEE 802.3af (Class 3) |
Power Consumption | PoE, IEEE 802.3af (Class 3), 8W |
Approval | FCC, CE, KC |
Mechanical | |
Dimensions | Ø120.6 x 92.9mm(Ø4.75” x 3.65”) |
Weight | 0.490kg(1.08lb) |
