5MP Turret Cameras, CCTV Surveillance, IDIS

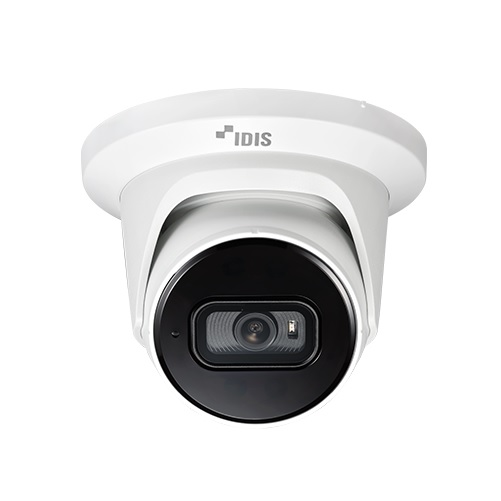

IDIS DC-D4512WERA 2.8mm H.265 5MP AI IR Turret Camera (LightMaster NIR), NDAA Compliant
The IDIS DC-D4512WERA is a 5MP AI IR Turret Camera designed with advanced LightMaster NIR technology, providing exceptional low-light performance. It features a 2.8mm fixed lens, which offers a wide-angle view, making it ideal for comprehensive surveillance in various environments. The camera supports H.265 video compression, allowing efficient bandwidth usage and reduced storage requirements without compromising image quality. Its AI capabilities include object detection, classification, and behavior analysis, improving the accuracy of threat detection. Equipped with infrared (IR) LEDs, the camera provides clear images even in complete darkness, with a night vision range of up to 30 meters. It also boasts a vandal-resistant design, rated at IK10, ensuring durability in high-risk areas. The camera supports wide dynamic range (WDR), allowing it to capture clear footage in challenging lighting conditions, such as bright and shadowed areas. It is IP67-rated for weather resistance, making it suitable for both indoor and outdoor installations. Additionally, the DC-D4512WERA integrates seamlessly with IDIS’s Total Solution, enhancing system-wide compatibility and performance. Its compact, turret-style design enables easy installation and flexible positioning in various security setups.
Key Features
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- PoE (IEEE 802.3af Class 3)
- IR LED (30m / 98.4 ft (4ea))
- IDIS Deep-Learning Analytics (IDLA)
$591.00 inc GST +3 Year Warranty & Support
Artificial Intelligence
LightMaster NIR
5MP
Fixed Lens
Weather Proof
IR LED
AI Embedded
Easy Installation
PoE
ONVIF
NDAA Compliant
The IDIS DC-D4512WERA 2.8mm H.265 5MP AI IR Turret Camera (LightMaster NIR) is a powerful surveillance solution engineered for superior low-light performance, utilizing its innovative LightMaster NIR technology. Its 2.8mm fixed lens provides a broad field of view, ideal for monitoring large areas with precision. This camera supports H.265 video compression, significantly reducing bandwidth and storage needs while maintaining excellent video quality. With built-in artificial intelligence (AI), it offers advanced features such as object detection, classification, and behavior analytics, helping users quickly identify potential threats. The camera is equipped with IR LEDs for effective night vision, offering clear footage even in darkness up to a distance of 30 meters. Its robust vandal-resistant housing, rated IK10, protects the device from damage in harsh environments. Additionally, the camera boasts an IP67 weatherproof rating, ensuring reliable performance in various outdoor conditions. With its wide dynamic range (WDR), the DC-D4512WERA captures clear images in scenes with both bright and dark areas, minimizing distortion. The compact turret design allows for easy installation and flexible mounting options, making it versatile for different types of installations. Lastly, it integrates seamlessly with IDIS’s Total Solution, ensuring comprehensive compatibility and optimized performance across security systems.

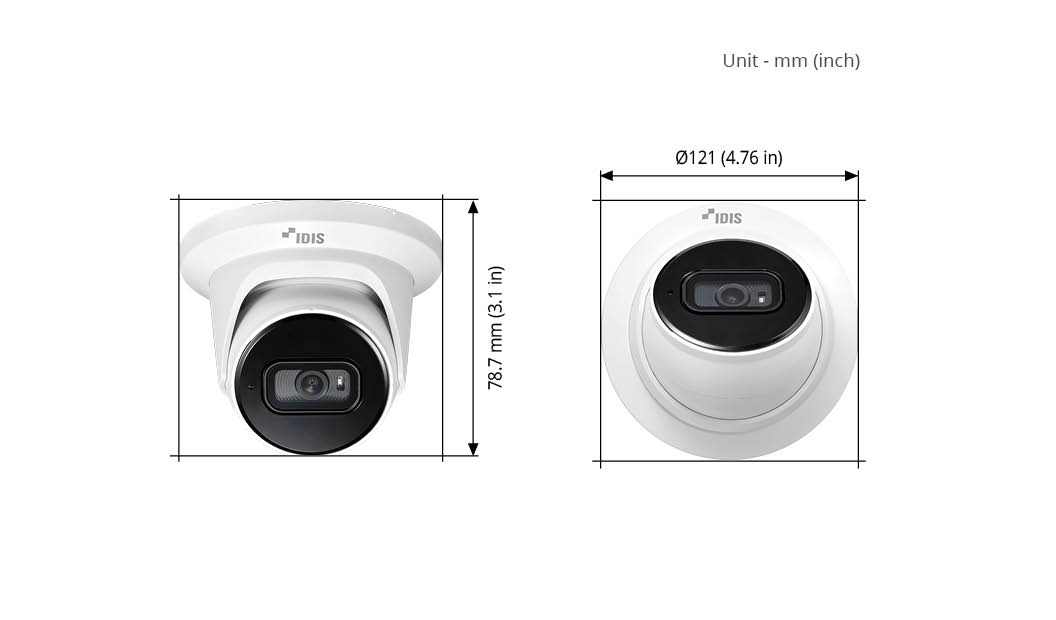

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode : 104.8º(H) 76.9º(V) 130º(D) 16:9 mode : 104.8º(H) 57.2º(V) 123º(D) |
| Min. Illumination | COLOR : 0.13 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (4ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -180° ~ 180° |
| Tilt Range | -5° ~ 65° |
| Rotate Range | -180° ~ 180° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280x960x 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, IEEE 802.3af(Class 3), 7.6W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø121 x 78.7mm (Ø4.76” x 3.1”) |
| Weight | 605g (1.3lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Wall mount for Turret
Model:DA-WM4300 or
JUNCTION BOX
Model:DA-JB4700 |
|
Celling |
MOUNT ADAPTER
Model:DA-MA4300 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
MOUNT ADAPTER
Model:DA-MA4300 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
MOUNT ADAPTER
Model: DA-MA4300 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
| Manual DC-D4512WERA Quick Guide v1.0 | Download |
| Manual DC-D4512WERA Operation Manual v1.0 | Download |
| Manual DC-D4512WERA Installation Manual v1.0 | Download |
| Software DC-D4512WERA Firmware v1.1.0_Japan | Download |
| Software DC-D4512WERA Firmware v1.1.0 | Download |
| A&E Specification DC-D4512WERA A&E Specification v1.0 | Download |
| Brochure DC-D4512WERA 2.8mm | |Automatically Generate Brochure |
Download
|
