Hikvision Cameras - World's Leading CCTV Manufacturer
5MP Dome Cameras, CCTV Surveillance, Dome Cameras, IDIS
IDIS DC-D4517RX 2.8mm H.265 5MP IR Dome Camera, NDAA Compliant
The IDIS DC-D4517RX is a high-performance H.265 5MP IR dome camera, designed for professional surveillance with a 2.8mm fixed lens that delivers wide-angle coverage, making it ideal for monitoring large areas such as open spaces or building entrances. It utilizes cutting-edge H.265 video compression technology to reduce bandwidth and storage requirements without sacrificing image quality, ensuring efficient data management. The 5MP resolution offers sharp, clear video, capturing even the smallest details with precision, while the integrated IR LEDs provide reliable night vision, ensuring clear visibility in complete darkness up to 20 meters. This camera is built to endure harsh environments, boasting IP67 and IK10 ratings, which make it water, dust, and vandal-resistant. The camera also features true wide dynamic range (WDR) of up to 120dB, which helps manage challenging lighting conditions, such as bright highlights and deep shadows, ensuring balanced and clear images. It supports two-way audio, allowing real-time communication between the surveillance operator and individuals on-site. The DC-D4517RX is equipped with intelligent video analytics, including motion detection, tampering alarms, and object detection, enhancing its security capabilities. It is ONVIF compliant, ensuring compatibility with various third-party systems and easy integration into existing security setups. Additionally, its sleek and compact design ensures discreet installation in various environments, from commercial spaces to residential properties.
Key Features
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Affordable 5MP High Resolution
- PoE (IEEE 802.3af Class 3)
- IR LED (20m / 65.6ft (4 ea))
- Fixed-focal lens
- True wide dynamic range (WDR)
- Day and night (ICR)
- Supports ONVIF
$258.00 inc GST +3 Year Warranty & Support
5MP
Fixed Lens
IR LED
True WDR
Easy Installation
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-D4517RX 2.8mm H.265 5MP IR Dome Camera is engineered for robust security applications, delivering exceptional image quality with its 5MP resolution that captures sharp and detailed footage. The camera features a 2.8mm lens, offering a broad field of view that is perfect for covering large areas without blind spots. Utilizing H.265 compression technology, the DC-D4517RX significantly reduces bandwidth usage and storage costs, allowing for long-term recording without compromising video quality. Its advanced infrared technology enables clear nighttime surveillance, with IR illumination capable of reaching distances up to 20 meters, ensuring reliable performance in low-light conditions. Designed with durability in mind, this dome camera is rated IP67 for water and dust resistance and IK10 for impact resistance, making it suitable for both indoor and outdoor use. The camera’s true wide dynamic range (WDR) capability enhances image clarity in varying lighting situations, enabling the capture of clear images even in challenging environments with bright lights and shadows. Additionally, it supports intelligent video analytics features such as line crossing and intrusion detection, providing enhanced security and alerting capabilities for proactive monitoring. The camera is easy to install and integrates seamlessly with existing systems due to its ONVIF compliance, allowing for compatibility with a range of third-party software and hardware. With a sleek, unobtrusive design, the DC-D4517RX blends effortlessly into any setting, ensuring that surveillance is effective yet discreet. Finally, the two-way audio feature facilitates communication, making it a versatile solution for various surveillance needs.

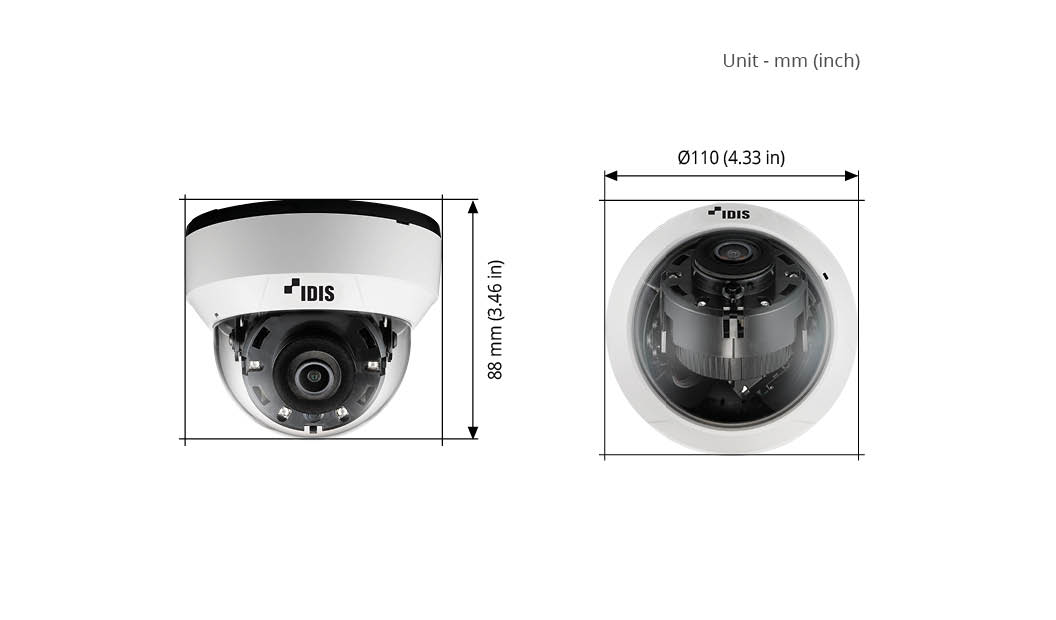

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode : 104.8º (H) 76.9º(V) 130º(D) 16:9 mode : 104.8º (H) 57.2º(V) 123º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 20m / 65.6ft (4 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -170° ~ 170° |
| Tilt Range | -5° ~ 67.5° |
| Rotate Range | -109° ~ 109° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | – |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280x960x 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | – |
| Alarm and Event | |
| Trigger Event | Motion Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | – |
| Audio In / Out | – |
| Alarm In / Out | – |
| Environmental | |
| Vandal Proof Casing | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 3) |
| Power Consumption | PoE, IEEE 802.3af (Class 3), 7.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø110 x 88mm(Ø4.33” x 3.46”) |
| Weight | 0.2kg(0.44lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Wall mount
Model:DA-WM4200 |
|
ETC |
Flush Mount
Model: DA-FM4100 |
