IDIS DC-D4532WERA H.265 5MP AI IR Turret Camera (LightMaster NIR), NDAA Compliant
The IDIS DC-D4532WERA H.265 5MP AI IR Turret Camera (LightMaster NIR) is a high-performance surveillance solution designed to deliver exceptional image clarity and accuracy. It features a 5MP sensor, offering high-definition resolution for detailed monitoring, even in challenging environments. The camera utilizes LightMaster NIR technology, enhancing its infrared performance to capture clear images in complete darkness, extending visibility and reducing motion blur. With advanced H.265 video compression, it optimizes bandwidth and storage efficiency while maintaining image quality. The built-in AI capabilities enable intelligent video analytics, including object detection, motion tracking, and intrusion detection, making it ideal for proactive security management. The camera’s weatherproof and vandal-resistant housing ensures durability in harsh outdoor conditions, and its compact turret design allows for flexible installation options. It also supports a wide dynamic range (WDR) to handle extreme lighting conditions, providing clear images in both bright and dark areas simultaneously. The camera integrates seamlessly with IDIS’s DirectIP® technology, simplifying installation and operation.
Key Features
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Remote Motorized Focus and Zoom
- PoE (IEEE 802.3af Class 3)
- IR LED (50m / 164ft (6ea))
- IDIS Deep-Learning Analytics (IDLA)
$728.00 inc GST +3 Year Warranty & Support
Artificial Intelligence
LightMaster NIR
5MP
Motorized Lens
Weather Proof
IR LED
AI Embedded
Easy Installation
PoE
ONVIF
NDAA Compliant
The IDIS DC-D4532WERA H.265 5MP AI IR Turret Camera (LightMaster NIR) is engineered to provide superior image quality and reliability. It features a 5MP image sensor that captures high-resolution video, making it ideal for detailed surveillance tasks. Equipped with LightMaster NIR technology, the camera excels in low-light and no-light environments, ensuring clear visibility in total darkness with extended infrared range. The H.265 video compression significantly reduces storage and bandwidth requirements while maintaining optimal video quality. This model also incorporates AI-powered analytics, such as line crossing detection and loitering detection, to enhance security operations. The camera’s rugged design is both vandal-resistant and weatherproof (IP67 and IK10-rated), ensuring reliable operation in harsh outdoor environments. Its flexible turret form factor allows for easy installation in various locations, including ceilings and walls. Additionally, the camera supports true wide dynamic range (WDR) technology, delivering clear images even in scenes with challenging lighting contrasts. Integrated with IDIS DirectIP® solutions, it ensures seamless connectivity and easy setup.

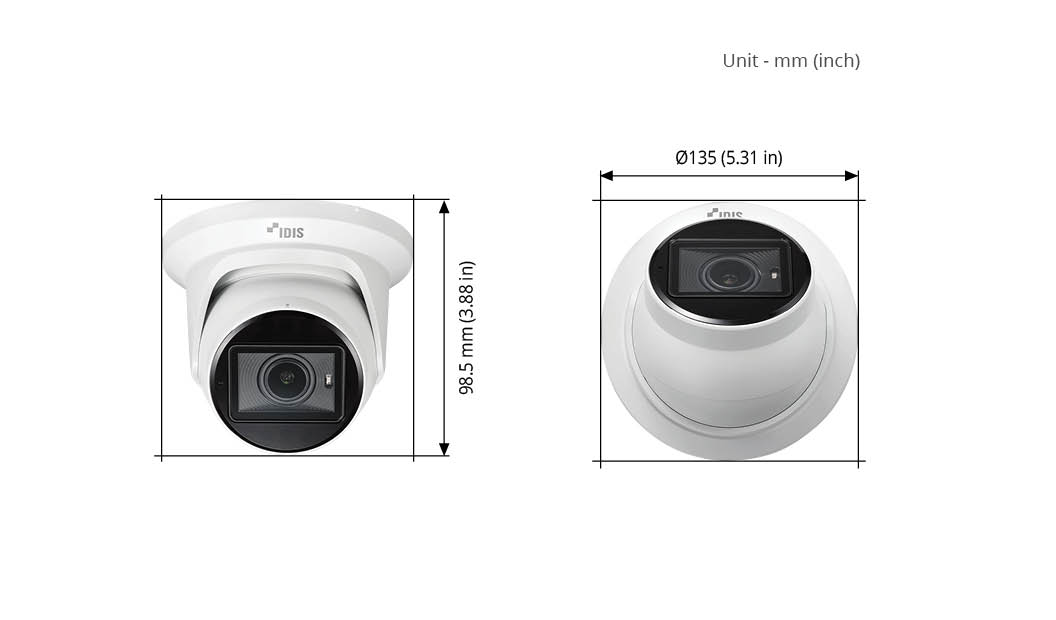

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 3.2 ~ 10.5mm |
| Aperture | F1.6 ~ 3.3 |
| Iris Control | P-Iris |
| Angular Field of View | [4:3 mode] Wide : 98.9º(H) 71.1º(V) 133.8º(D) Tele : 28.2º(H) 21.2º(V) 35.3(D)[16:9 mode] Wide : 98.9º(H) 52.2º(V) 117.9º(D) Tele : 28.2º(H) 15.9º(V) 32.4º(D) |
| Min. Illumination | COLOR : 0.13 lux @ F1.6 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 50m / 164ft(6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -180° ~ 180° |
| Tilt Range | -5° ~ 70° |
| Rotate Range | -180° ~ 180° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280x960x 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 11.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø135 x 98.5mm (Ø5.31” x 3.88”) |
| Weight | 830g (1.83lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Wall mount for Turret
Model:DA-WM4300 or
JUNCTION BOX
Model:DA-JB4600 |
|
Celling |
MOUNT ADAPTER
Model:DA-MA4200 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
MOUNT ADAPTER
Model:DA-MA4200 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
MOUNT ADAPTER
Model: DA-MA4200 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
