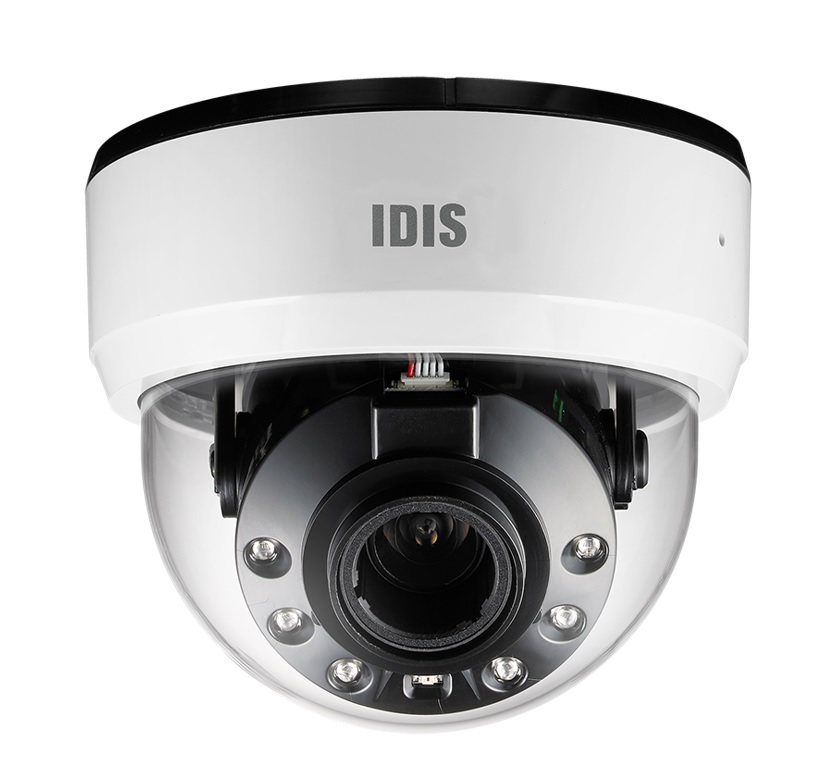

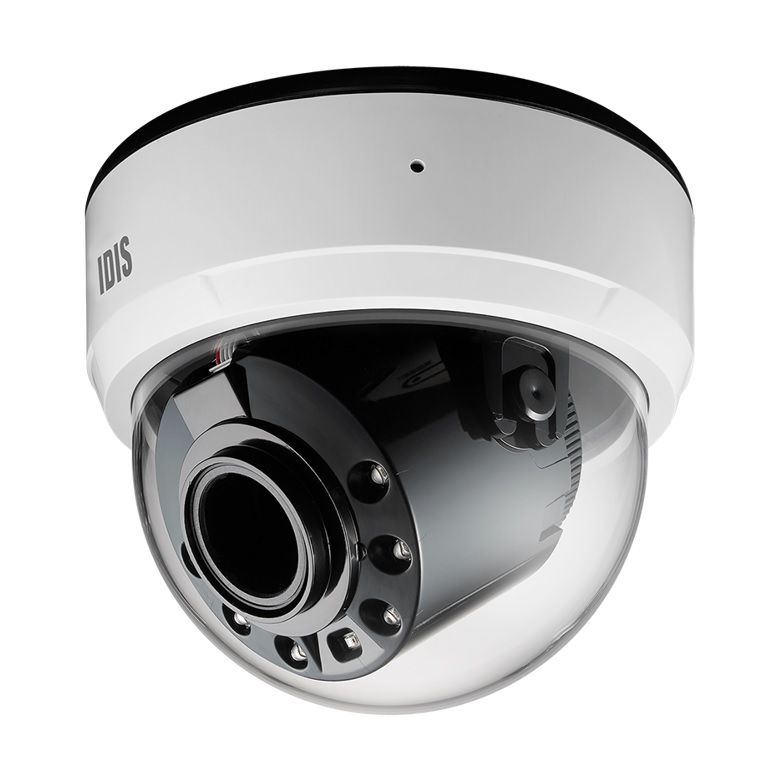

IDIS DC-D4536RX 5MP IR Dome Camera, NDAA Compliant
The IDIS DC-D4536RX is a 5MP IR Dome Camera designed for high-performance surveillance in various environments. It features a 3.0 – 13.5mm motorized vari-focal lens, providing flexible field-of-view options for different monitoring needs. With its true WDR (Wide Dynamic Range) technology, the camera delivers clear images even in challenging lighting conditions, ensuring superior visibility in both bright and dark areas. Equipped with built-in IR LEDs, the camera can capture clear footage up to 30 meters in complete darkness, making it ideal for 24/7 surveillance. Its robust IK10-rated vandal-resistant housing ensures durability, while the IP66 rating makes it weatherproof for outdoor use. The camera also supports H.265, H.264, and MJPEG video compression formats, optimizing storage efficiency without compromising video quality. Intelligent video analytics, such as motion detection and tamper detection, enhance security by providing real-time alerts. The DC-D4536RX is ONVIF compliant, ensuring easy integration with third-party systems.
Key Features
- Easy installation with DirectIP NVR
- 5MP (2592×1944) resolution
- Motorized Vari-focal lens (f=3.0 – 13.5mm)
- micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in / out
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30m / 98.4 ft (6ea))
- 3-axis mechanical design for installation
- Supports ONVIF
$576.00 inc GST +3 Year Warranty & Support
5MP
Motorized Lens
IR LED
True WDR
Easy Installation
Two-way audio
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-D4536RX is a high-performance 5MP IR dome camera designed to deliver superior image quality in various lighting conditions. It features a 3.0 – 13.5mm motorized varifocal lens, allowing flexible focus adjustments for different surveillance needs. With advanced IR technology, the camera provides clear night vision up to 30 meters, ensuring optimal performance in low-light environments. Its True WDR (Wide Dynamic Range) feature enables the camera to handle challenging lighting contrasts, such as areas with both bright and dark spots, maintaining a balanced image. The camera is equipped with H.265+ compression, reducing bandwidth and storage requirements while retaining high-quality footage. Its vandal-resistant IK10-rated housing makes it highly durable, suitable for high-risk areas. The DC-D4536RX supports two-way audio, enhancing security communication and incident management. This model is compatible with IDIS’s DirectIP® NVRs for seamless integration into existing surveillance systems. The camera’s easy installation design, including Power over Ethernet (PoE) capability, reduces setup time and costs. Additionally, its IP67 weatherproof rating ensures reliable performance in outdoor environments, even under harsh weather conditions.

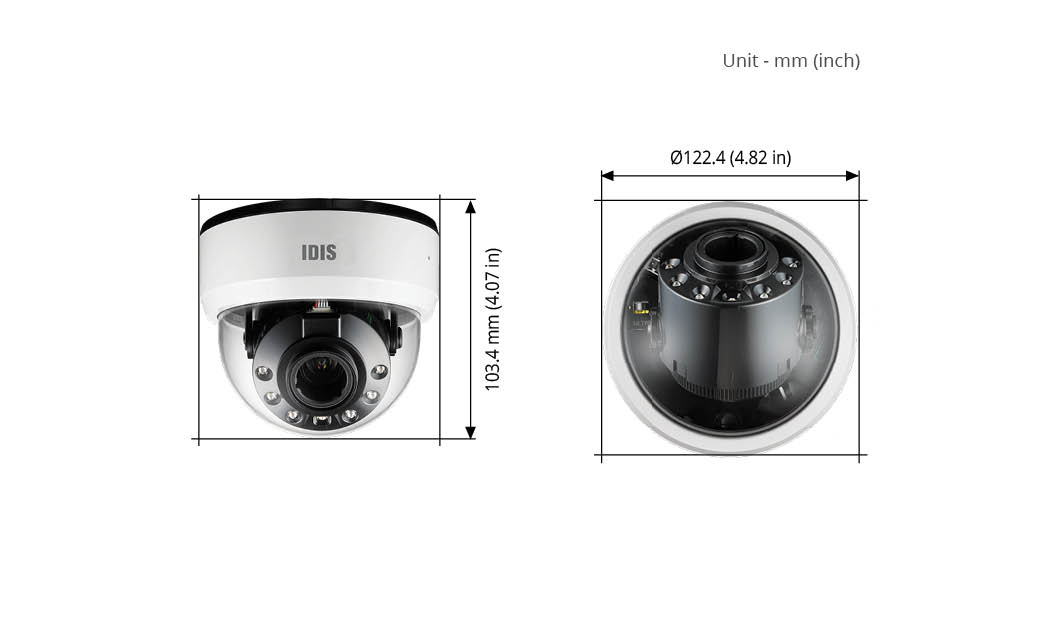

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 3.0 ~ 13.5mm |
| Aperture | F1.4 ~ 3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode] Wide : 91º(H) 66º(V) 120º(D) Tele : 31º(H) 23º(V) 38º(D)[16:9 mode] Wide : 91º(H) 49º(V) 107º(D) Tele : 31º(H) 17º(V) 35º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30m / 98.4 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 67° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280×960, 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1A, 12W PoE, IEEE 802.3af(Class 3), 9.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø122.4 x 103.4mm(Ø4.82” x 4.07”) |
| Weight | 0.4kg (0.88lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
MOUNT ADAPTER
Model:DA-MA4300 +
WALL MOUNT
Model:DA-WM2050 or
Wall mount
Model:DA-WM4200 |
|
Celling |
MOUNT ADAPTER
Model:DA-MA4300 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
MOUNT ADAPTER
Model:DA-MA4300 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
MOUNT ADAPTER
Model: DA-MA4300 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
|
ETC |
Flush Mount
Model: DA-FM1500 or
Indoor Dome Flush(In-ceiling) Mount
Model: DA-FM1600 |
