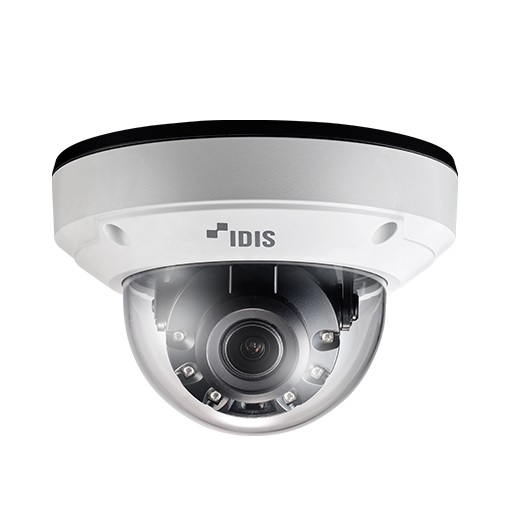

IDIS DC-D4537HRXA H.265 5MP AI IR Dome Camera, NDAA Compliant
The IDIS DC-D4537HRXA is a high-performance 5MP AI IR Dome Camera designed for advanced surveillance needs. It utilizes cutting-edge H.265 compression technology, allowing for more efficient video storage and transmission without compromising quality. Equipped with a powerful AI engine, the camera can perform real-time analytics such as object detection, loitering, and intrusion detection, providing enhanced security features. Its 5MP resolution ensures sharp, detailed images, making it ideal for both indoor and outdoor environments. The camera also features built-in IR LEDs with a range of up to 40 meters, enabling clear nighttime surveillance. With its IP67 weatherproof and IK10 vandal-resistant housing, the DC-D4537HRXA is built to withstand harsh conditions and tampering. The camera offers True WDR (Wide Dynamic Range) functionality, ensuring high-quality footage in challenging lighting conditions, such as backlighting or areas with high contrast. It supports flexible installation options with its compact dome design and comes with ONVIF compatibility for easy integration into existing security systems. Additionally, the DC-D4537HRXA is part of IDIS’s DirectIP® solution, ensuring seamless plug-and-play installation. This camera is an excellent choice for those requiring robust, intelligent surveillance solutions.
Key Features
- 5MP (2592×1944) resolution
- IDIS Deep-Learning Analytics (IDLA)
- IR LED (40m / 131.2 ft, 6ea)
- Micro SD/SDHC/SDXC support
- Day and night (ICR)
- True wide dynamic range (WDR)
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Remote motorized focus and zoom
- PoE (IEEE 802.3af Class 3)
- IK10, IP67 rated
- Built-in heater
- Supports ONVIF
$849.00 inc GST +3 Year Warranty & Support
Artificial Intelligence
5MP
Motorized Lens
Heater
IR LED
True WDR
AI Embedded
Easy Installation
PoE
IP67
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-D4537HRXA H.265 5MP AI IR Dome Camera is a powerful surveillance solution designed to deliver high-quality imaging and advanced analytics for enhanced security. Equipped with a 5MP sensor, it provides sharp and clear footage even in challenging lighting conditions, making it ideal for both indoor and outdoor environments. The camera supports H.265 video compression, which reduces bandwidth and storage requirements while maintaining excellent video quality. With AI-based analytics, this camera can detect and classify objects such as people, vehicles, and faces, improving situational awareness. The built-in infrared (IR) LEDs enable the camera to capture clear images in complete darkness up to a range of 40 meters. Its vandal-resistant dome design ensures durability and protection against tampering, while the IP67 weatherproof rating allows it to withstand harsh environmental conditions. The DC-D4537HRXA also features True WDR (Wide Dynamic Range) technology, enabling it to handle scenes with high contrast lighting. Additionally, it supports flexible mounting options for easy installation and integration into existing surveillance systems. This camera is ideal for various applications, including commercial, industrial, and public spaces, where reliable and intelligent security monitoring is essential.

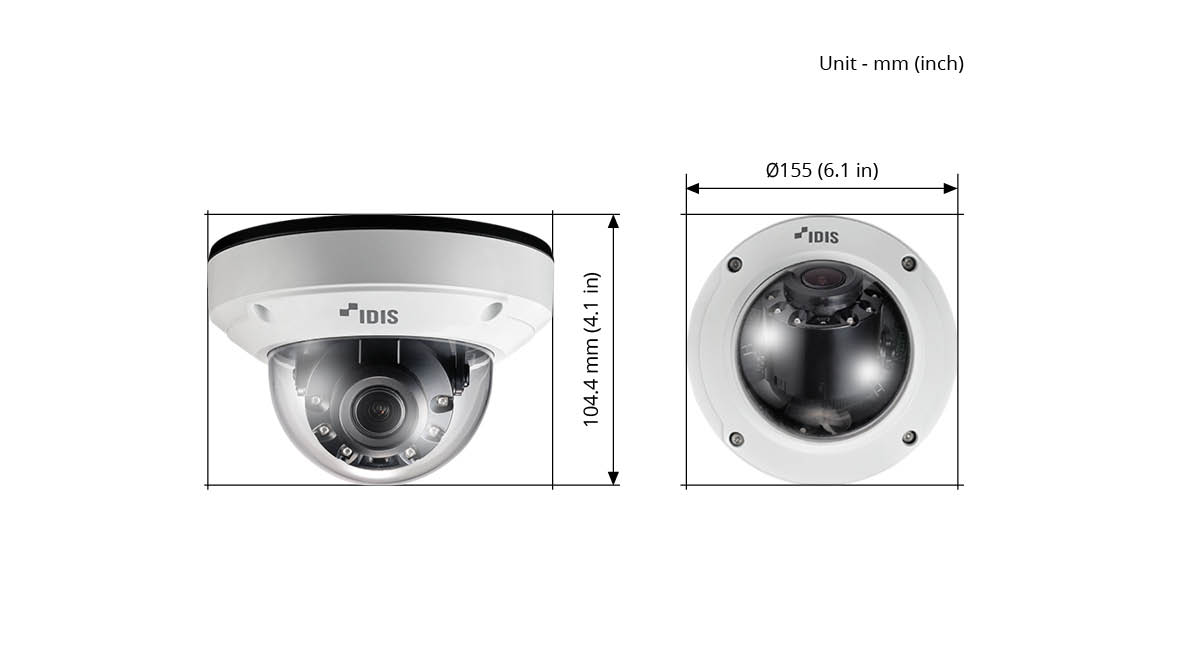

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.4 ~ 3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode] Wide : 101.2º(H) 72.5º(V) 137.4º(D) Tele : 30.4º(H) 22.8º(V) 38º(D)[16:9 mode] Wide : 101.2º(H) 53.3º(V) 121.6º(D) Tele : 30.4º(H) 17º(V) 34.7º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 64° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280×960, 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 10W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø155 x 104.4mm(Ø6.1” x 4.11”) |
| Weight | 1kg (2.2lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 |
|
Celling |
DA-MA2100
Model:DA-MA2100 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
DA-MA2100
Model: DA-MA2100 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
|
ETC |
JUNCTION BOX
Model: DA-JB2200 or
Flush Mount
Model: DA-FM1500 |
