5MP Dome Cameras, CCTV Surveillance, Dome Cameras, IDIS
IDIS DC-D4537RXA H.265 5MP AI IR Dome Camera, NDAA Compliant
The IDIS DC-D4537RXA is a high-performance H.265 5MP AI IR Dome Camera designed to provide advanced security and surveillance solutions. It features cutting-edge AI technology that enhances detection accuracy by distinguishing between human, vehicle, and object movements, reducing false alarms. The 5MP resolution ensures crystal-clear image quality, capturing intricate details even in challenging lighting conditions. This camera is equipped with IR LEDs that offer up to 40 meters of night vision, allowing for optimal performance in low-light or complete darkness. Its vandal-resistant dome housing, with an IK10 rating, makes it ideal for environments prone to tampering or damage. The camera also boasts weatherproofing with an IP67 rating, ensuring it can withstand harsh outdoor conditions such as rain and dust. Thanks to H.265 compression, the DC-D4537RXA minimizes bandwidth usage and storage requirements, improving operational efficiency. It supports flexible installation options with its 3-axis mechanical design, allowing for precise angle adjustments. The camera’s compatibility with IDIS’s DirectIP® technology simplifies system setup, offering seamless integration into existing security networks. Additionally, its intelligent video analytics capabilities, such as line crossing and loitering detection, enhance proactive monitoring and security management.
Key Features
- 5MP (2592×1944) resolution
- IDIS Deep-Learning Analytics (IDLA)
- IR LED (40m / 131.2 ft (6ea))
- Micro SD/SDHC/SDXC support
- Day and night (ICR)
- True wide dynamic range (WDR)
- Easy installation with DirectIP NVR
- Two-way audio
- Alarm in / out
- H.265 and Intelligent Codec
- Remote motorized focus and zoom
- PoE (IEEE 802.3af Class 3)
- Supports ONVIF
$697.00 inc GST +3 Year Warranty & Support
Artificial Intelligence
5MP
Motorized Lens
IR LED
True WDR
AI Embedded
Easy Installation
Two-way audio
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-D4537RXA H.265 5MP AI IR Dome Camera offers top-tier surveillance with its advanced AI capabilities and superior image clarity. The 5MP resolution provides highly detailed footage, making it ideal for environments where identifying faces, license plates, or small objects is critical. It integrates artificial intelligence to distinguish between different types of objects, such as people or vehicles, significantly reducing false alarms. The camera is equipped with powerful IR LEDs, allowing it to capture clear images up to 40 meters in complete darkness, ensuring around-the-clock surveillance. Its IK10-rated vandal-resistant design ensures durability in areas at risk of physical tampering, while the IP67 rating offers complete protection against dust and water, making it suitable for both indoor and outdoor use. H.265 compression technology reduces data consumption and storage requirements without compromising image quality. The camera supports wide dynamic range (WDR) to balance light and shadow in scenes with high contrast, providing clear images in complex lighting situations. Its 3-axis mechanical design allows flexible installation and precise camera positioning to cover a wide field of view. The DC-D4537RXA also features intelligent video analytics such as object counting, face detection, and tampering alarms to enhance security operations. Integration with IDIS’s DirectIP® system ensures a simplified and reliable network setup, making it an ideal choice for professional-grade security solutions.

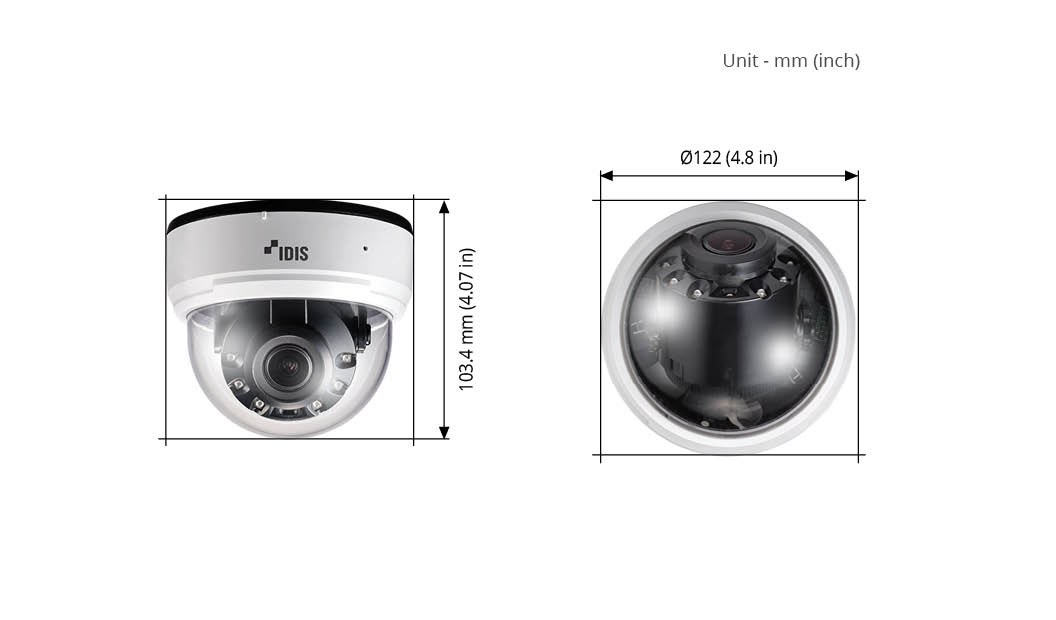

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.4 ~ 3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode] Wide : 101.2º(H) 72.5º(V) 137.4º(D) Tele : 30.4º(H) 22.8º(V) 38º(D)[16:9 mode] Wide : 101.2º(H) 53.3º(V) 121.6º(D) Tele : 30.4º(H) 17º(V) 34.7º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 64° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280×960, 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1A, 12W PoE, IEEE 802.3af(Class 3), 9.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø122 x 103.4mm(Ø4.8” x 4.07”) |
| Weight | 0.35kg (0.77lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
MOUNT ADAPTER
Model:DA-MA4300 +
WALL MOUNT
Model:DA-WM2050 or
Wall mount
Model:DA-WM4200 |
|
Celling |
MOUNT ADAPTER
Model:DA-MA4300 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
MOUNT ADAPTER
Model:DA-MA4300 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
MOUNT ADAPTER
Model: DA-MA4300 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
|
ETC |
Flush Mount
Model: DA-FM1500 or
Indoor Dome Flush(In-ceiling) Mount
Model: DA-FM1600 |
