IDIS DC-D4538WRA H.265 5MP AI IR Dome Camera (LightMaster NIR), NDAA Compliant
The IDIS DC-D4538WRA H.265 5MP AI IR Dome Camera (LightMaster NIR) is a high-performance security camera designed to deliver superior image quality in challenging lighting conditions. It features a 5MP sensor that captures clear, detailed footage, even in low light or complete darkness, thanks to its LightMaster NIR technology, which enhances night vision capabilities. The camera supports H.265 video compression, significantly reducing bandwidth and storage requirements while maintaining excellent video quality. Its advanced AI capabilities, including object detection, classification, and behavior analysis, provide enhanced security monitoring with accurate alerts for suspicious activities. The DC-D4538WRA is equipped with built-in IR LEDs that offer an impressive range for nighttime surveillance. With its rugged, vandal-resistant design (IK10-rated) and weatherproof (IP67-rated) housing, it is suitable for outdoor installations in harsh environments. The camera also includes Wide Dynamic Range (WDR) technology, which ensures balanced exposure in scenes with both bright and dark areas. Its flexible installation options, including various mounting accessories, make it adaptable to different surveillance needs. This camera integrates seamlessly with IDIS’s DirectIP NVRs for hassle-free setup and operation.
Key Features
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- Remote Motorized Focus and Zoom
- PoE (IEEE 802.3af Class 3)
- IR LED (40m / 131.2 ft (6ea))
- IDIS Deep-Learning Analytics (IDLA)
$849.00 inc GST +3 Year Warranty & Support
Artificial Intelligence
LightMaster NIR
5MP
Motorized Lens
Weather Proof
IR LED
AI Embedded
Easy Installation
PoE
ONVIF
NDAA Compliant
The IDIS DC-D4538WRA H.265 5MP AI IR Dome Camera (LightMaster NIR) is engineered to provide exceptional surveillance in both day and night conditions. Equipped with a 5MP sensor, it delivers crystal-clear video quality with enhanced clarity even in low-light environments, thanks to its LightMaster NIR technology. The camera utilizes H.265 video compression, which optimizes bandwidth usage and minimizes storage consumption without compromising video quality. Its AI-powered analytics offer intelligent detection capabilities, including human and vehicle identification, making it ideal for high-security applications. The camera’s integrated infrared (IR) LEDs provide extended visibility in complete darkness, while its Wide Dynamic Range (WDR) ensures excellent image balance in scenes with varying lighting conditions. Designed to withstand tough environments, the DC-D4538WRA features an IK10 vandal-resistant and IP67 weatherproof housing, ensuring durability in outdoor settings. The camera supports multiple mounting options for flexible installation, whether on walls or ceilings. With easy integration into the IDIS DirectIP ecosystem, the camera offers seamless connectivity and control through IDIS NVRs and software. This model also supports two-way audio, enhancing real-time communication during monitoring sessions.

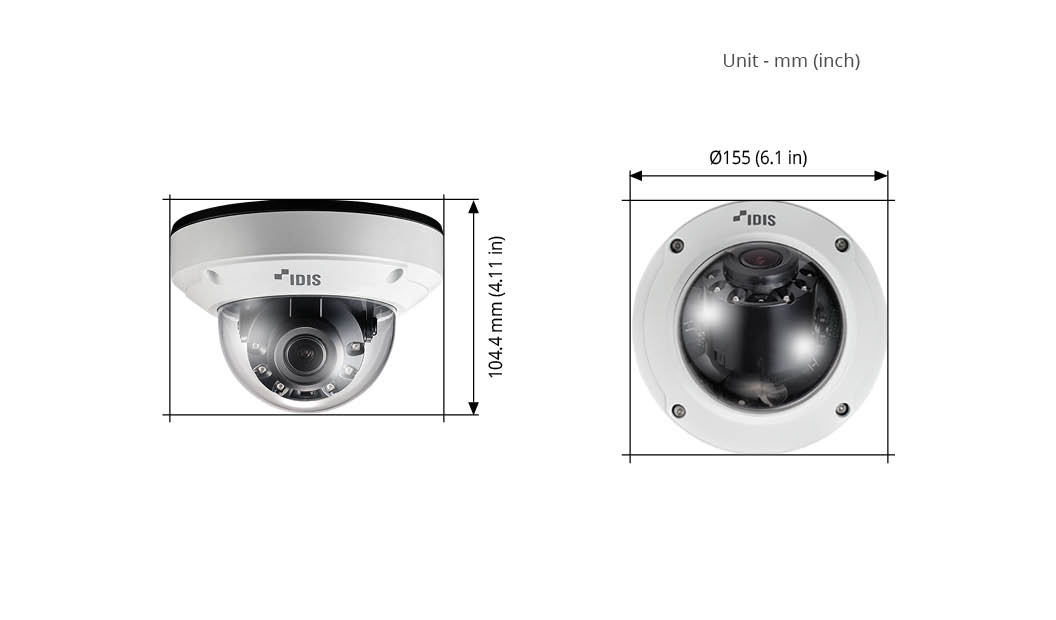

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.4 ~ 3.2 |
| Iris Control | DC Iris |
| Angular Field of View | [4:3 mode] Wide : 101.2º(H) 72.5º(V) 137.4º(D) Tele : 30.4º(H) 22.8º(V) 38º(D)[16:9 mode] Wide : 101.2º(H) 53.3º(V) 121.6º(D) Tele : 30.4º(H) 17º(V) 34.7º(D) |
| Min. Illumination | COLOR : 0.13 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 60° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280×960, 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af(Class 3), 10W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø155 x 104.4mm(Ø6.1” x 4.11”) |
| Weight | 1kg (2.2lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 |
|
Celling |
DA-MA2100
Model:DA-MA2100 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
DA-MA2100
Model: DA-MA2100 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
|
ETC |
JUNCTION BOX
Model: DA-JB2200 or
Flush Mount
Model: DA-FM1500 |
