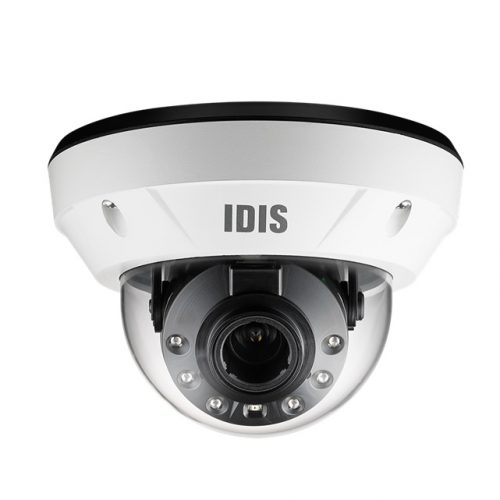

IDIS DC-D4831HRX 8MP Vandal-Resistant IR Dome Camera, NDAA Compliant
The IDIS DC-D4831HRX 8MP Vandal-Resistant IR Dome Camera is a robust and high-performance surveillance solution designed to deliver exceptional image clarity. With its 8MP resolution, it captures detailed footage, making it ideal for large-scale monitoring in diverse environments. Equipped with IR technology, the camera ensures clear visibility even in complete darkness, with an IR range of up to 40 meters. It features a vandal-resistant design with an IK10 rating, offering protection against impacts, making it suitable for high-risk areas. The camera supports H.265 video compression, reducing bandwidth and storage requirements without sacrificing image quality. With True Wide Dynamic Range (WDR), it effectively handles challenging lighting conditions, ensuring balanced images in both bright and dark areas. Its weatherproof IP67 rating makes it reliable for outdoor installations, protecting it from harsh weather conditions like rain, dust, and extreme temperatures. The camera also integrates seamlessly with IDIS’ DirectIP NVRs, providing a smooth, easy-to-manage solution for large-scale installations. Advanced motion detection and tampering alarms further enhance its security features, making it a dependable choice for a variety of settings, from public spaces to commercial properties. Additionally, the compact dome design makes it discreet, allowing it to blend into its surroundings while maintaining effective surveillance.
Key Features
- Easy installation with DirectIP NVR
- 8MP (3840×2160) resolution
- Motorized Vari-focal lens (f=2.7 – 13.5mm)
- Micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in/out
- IK10/IP67 rating
- Built-in heater
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (40m / 131.2 ft, 6 units)
- 3-axis mechanical design for installation
- Supports ONVIF
$849.00 inc GST +3 Year Warranty & Support
8MP
Motorized Lens
Heater
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-D4831HRX 8MP Vandal-Resistant IR Dome Camera is engineered for superior surveillance performance in challenging environments. Its 8MP resolution captures ultra-clear video footage, ensuring that even the smallest details are visible. This camera comes equipped with built-in IR LEDs, allowing it to capture high-quality images even in total darkness up to a distance of 40 meters. Its rugged design includes an IK10 vandal-resistant rating, providing protection against deliberate tampering and physical impacts. With True Wide Dynamic Range (WDR), the camera can adapt to difficult lighting conditions, delivering sharp images even when areas are both brightly lit and shadowed. Its IP67-rated weatherproof housing ensures reliable operation in harsh weather conditions, including rain, dust, and extreme temperatures. The DC-D4831HRX uses H.265 video compression technology, which reduces bandwidth and storage usage while maintaining excellent image quality. Designed for easy integration, this camera is fully compatible with IDIS’s DirectIP NVRs, making installation and configuration straightforward. It also features intelligent motion detection and tamper detection capabilities, providing enhanced security by alerting users to suspicious activity. This dome camera’s compact form factor and vandal-resistant design make it ideal for securing high-traffic areas, such as transportation hubs, shopping centers, and schools.

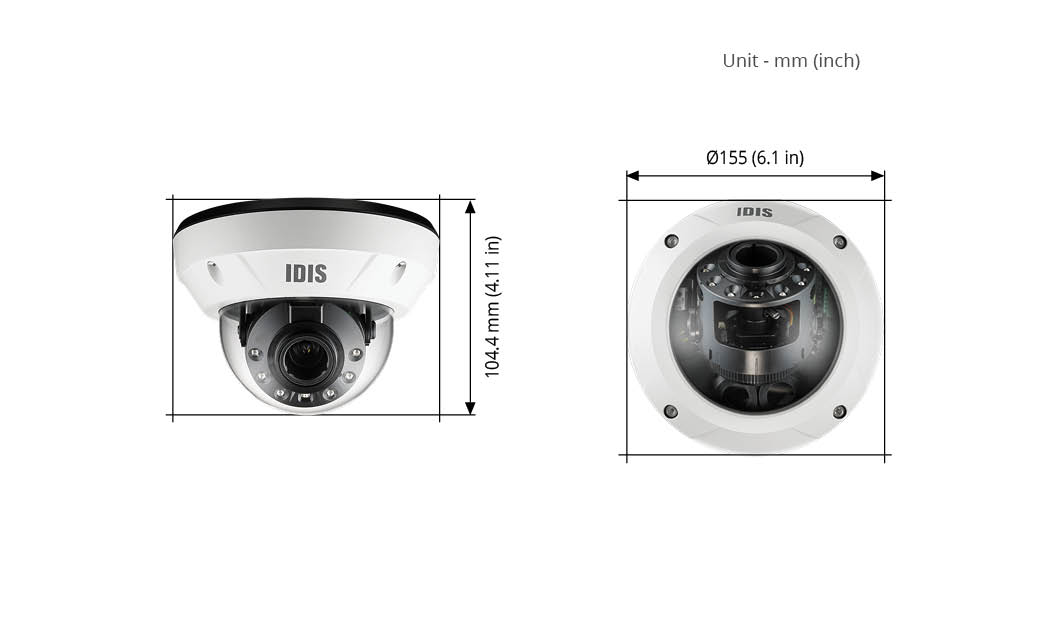

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.7 ~ 13.5mm |
| Aperture | F1.8 ~ F3.32 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 110.6º(H) 57.3º(V) 134.1º(D) Tele : 32.6º(H) 18.3º(V) 37.4(D) |
| Min. Illumination | COLOR : 0.2 lux @ F1.8 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 40m / 131.2 ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | -175° ~ 175° |
| Tilt Range | 0° ~ 64° |
| Rotate Range | -177° ~ 177° |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 3840 x 2160 15ips : 3840 x 2160(WDR) |
| Supported Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 1.2A, 14.4W PoE, IEEE 802.3af(Class 3), 12.4W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø155 x 104.4mm(Ø6.1” x 4.11”) |
| Weight | 1.02kg (2.25lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
JUNCTION BOX
Model:DA-JB2200 or
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 |
|
Celling |
JUNCTION BOX
Model:DA-JB2200 or
DA-MA2100
Model:DA-MA2100 +
CEILING MOUNT
Model:DA-CM2050 |
|
Pole |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
DA-MA2100
Model: DA-MA2100 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
|
ETC |
Flush Mount
Model: DA-FM1500 |
