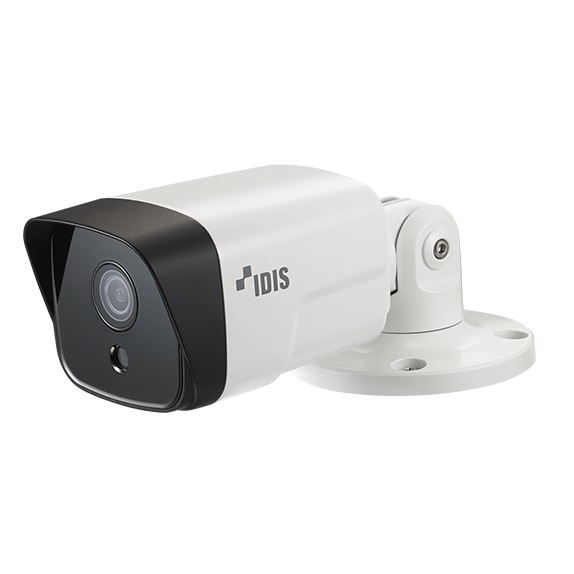

IDIS DC-E4216WRX 2.8mm Full HD IR Bullet Camera, NDAA Compliant
The IDIS DC-E4216WRX 2.8mm Full HD IR Bullet Camera is a high-performance surveillance solution, ideal for various security applications. It features a 2.8mm fixed lens, providing a wide field of view to cover large areas efficiently. With Full HD 1080p resolution, it delivers clear and detailed images, ensuring accurate monitoring even in low-light conditions. Equipped with IR LEDs, the camera provides night vision capabilities up to a significant distance, making it suitable for both day and night surveillance. The weatherproof design (IP67-rated) ensures reliable operation in harsh outdoor environments, protecting the camera from dust and water. It also supports H.265 video compression, reducing bandwidth and storage requirements without compromising image quality. The DC-E4216WRX includes various advanced features like true Wide Dynamic Range (WDR) to handle challenging lighting conditions and 3D Digital Noise Reduction (DNR) for clear image quality in low-light or high-motion scenarios. Its vandal-resistant housing (IK10-rated) protects against impacts, making it ideal for high-risk areas. The camera is ONVIF-compliant, ensuring compatibility with a wide range of third-party systems. Additionally, it supports PoE (Power over Ethernet), simplifying installation by reducing the need for additional power cables.
Key Features
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- Fixed-focal lens (f=2.8mm)
- micro SD/SDHC/SDXC support
- Two-way audio
- Alarm in / out
- IK10 / IP67 support
- PoE (IEEE 802.3af Class 2)
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30 m / 98.4 ft, 4 units)
- 3-axis mechanical design for installation
- Supports ONVIF
$297.00 inc GST +3 Year Warranty & Support
2MP
Fixed Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-E4216WRX 2.8mm Full HD IR Bullet Camera is a powerful surveillance solution that offers clear, high-definition video output in a compact, weather-resistant design. Featuring a 2.8mm fixed lens, it provides wide-angle coverage, ideal for monitoring large areas with precise detail. The camera supports full HD 1080p resolution, delivering sharp, clear video even in challenging lighting conditions. Its advanced IR technology ensures excellent night vision, extending visibility up to 30 meters in complete darkness. With built-in Wide Dynamic Range (WDR), the DC-E4216WRX effectively handles scenes with varying light intensities, ensuring balanced image quality. Designed with IP67 weatherproof and IK10 vandal-resistant ratings, it is suitable for both indoor and outdoor installations, capable of withstanding harsh weather and physical impacts. The camera also features H.265 video compression, reducing bandwidth usage and storage requirements without compromising quality. Supporting Power over Ethernet (PoE), installation is simplified, requiring only one cable for both power and data. Its compact and sleek form factor allows for discreet installation while maintaining a strong visual deterrent. Ideal for various applications, this camera is perfect for ensuring safety and security in a variety of environments, including commercial properties and residential areas.

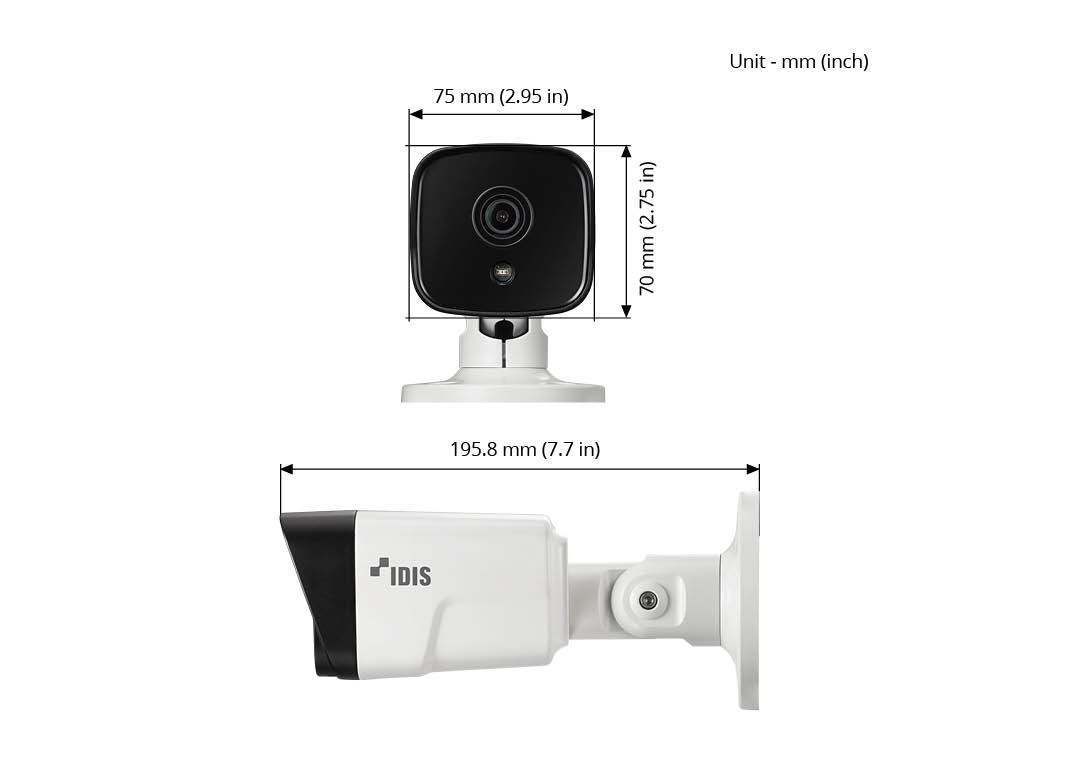

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6º(H), 61.5º(V), 127.3º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30 m / 98.4 ft (4 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE IEEE 802.3af (Class 2) |
| Power Consumption | PoE, IEEE 802.3af (Class 2), 6.1W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 75mm x 70mm x 195.8mm (2.95″ x 2.75″ x 7.7″) |
| Weight | 0.655Kg (1.44 lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Junction Box
Model:DA-JB4150 or
Junction Box
Model:DA-JB2400 |
|
Celling |
Junction Box
Model:DA-JB4150 or
Junction Box
Model:DA-JB2400 |
|
Pole |
Junction Box
Model:DA-JB4150 +
Pole Mount
Model:DA-LM2000 or
Pole Mount
Model:DA-LM2000 +
Junction Box
Model:DA-JB2400 |
|
Corner |
Corner Mount
Model: DA-RM2000 +
Junction Box
Model: DA-JB2400 or
Junction Box
Model: DA-JB4150 +
Corner Mount
Model: DA-RM2000 |
