IDIS DC-M4211WRX 2.8mm Full HD IR Mobile Dome Camera – Vandal, Shock and Vibration Resistant, NDAA Compliant
The IDIS DC-M4211WRX 2.8mm Full HD IR Mobile Dome Camera is designed for reliable surveillance in dynamic environments, offering 2-megapixel resolution for clear, detailed imaging. It features an IR illumination range of up to 10 meters, ensuring high-quality footage even in low-light or nighttime conditions. The robust dome design provides IK10 vandal resistance, making it ideal for mobile and outdoor applications where durability is crucial. Its 2.8mm fixed lens offers a wide-angle view, ensuring extensive coverage for monitoring larger areas. The camera also supports Full HD video at up to 30 frames per second, delivering smooth and clear footage in fast-paced environments.
With support for H.265 and H.264 video compression, it optimizes bandwidth and storage efficiency while maintaining high image quality. The camera is engineered for mobile use, featuring a rugged design that withstands shocks and vibrations, making it suitable for vehicles or transport applications. It also includes built-in wide dynamic range (WDR) functionality to handle challenging lighting conditions, ensuring clarity in scenes with varying light levels. Additionally, it comes with ONVIF compliance, enabling easy integration with third-party systems. The camera is designed for easy installation, with flexible mounting options and compatibility with IDIS’s DirectIP® technology for simplified network management.
Key Features
- Anti-vibration On-Board Camera
- Full HD (1080p) Resolution
- Fixed-focal Lens (f=2.8mm)
- micro SD/SDHC/SDXC
- Internal Mic
- IK10 / IP67 Supports
- PoE (IEEE 802.3af Class 3)
- Day and Night (ICR)
- True Wide Dynamic Range (WDR)
- IR LED (10 m)
- 3-axis Mechanical Design for Installation
- MIL-STD-810G Supports
- NDAA Compliant
- Supports ONVIF
$440.00 inc GST +3 Year Warranty & Support
2MP
Fixed Lens
Weather Proof
IR LED
True WDR
IP67
PoE
IR Cut Filter Removable
ONVIF
NDAA Compliant
The IDIS DC-M4211WRX 2.8mm Full HD IR Mobile Dome Camera is engineered for high-performance surveillance in tough environments. Its 2MP sensor captures sharp and clear images, delivering full HD resolution for precise monitoring. The camera’s 2.8mm fixed lens provides a wide-angle view, ensuring comprehensive coverage, especially in mobile or outdoor settings. Built to withstand harsh conditions, the camera is IP67-rated for weather resistance and IK10-rated for protection against impacts, making it ideal for use on vehicles or in high-risk areas. It also features powerful infrared (IR) LEDs that allow for clear imaging in total darkness, with a range of up to 10 meters. With its support for H.265 and H.264 compression, the camera optimizes bandwidth and storage without sacrificing video quality. It also includes advanced image processing technologies like wide dynamic range (WDR) to handle difficult lighting conditions, ensuring visibility in high-contrast scenes. Designed for flexibility, the camera integrates easily with existing security systems through ONVIF compliance, and its rugged construction ensures durability in mobile and high-vibration environments. The unit supports IDIS DirectIP® technology for simplified installation and management, streamlining network setup and control. Its advanced features make it a versatile choice for mobile security applications, providing dependable performance in challenging conditions.

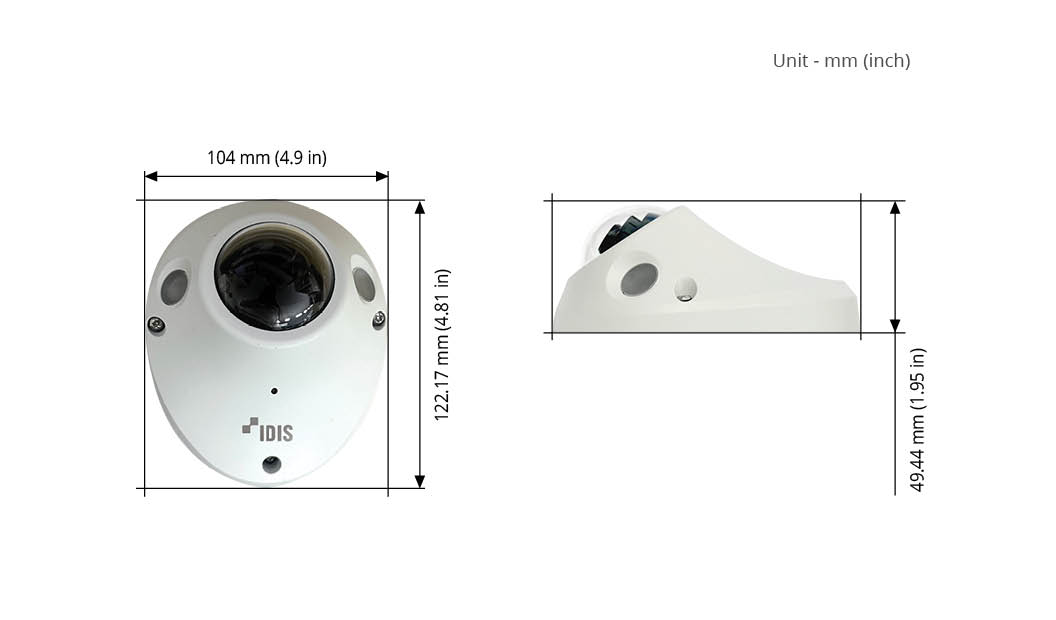

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6º(H), 61.45º(V), 127.3º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 10 m |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | – |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 CVBS |
| Pan/Tilt/Rotate | |
| Pan Range | -5º ~ +5º |
| Tilt Range | +20º ~ +75º |
| Rotate Range | -90º ~ +90º |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 16:9 – 1920×1080, 1280×720, 640×360, 352×240 4:3 – 1440×1080, 960×720, 480×360, 272×240 |
| Multi-video Streaming | Triple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | – |
| Audio In / Out | 1(Internal MIC) / 0 |
| Alarm In / Out | – |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | 8.9W |
| Approval | FCC, CE, MIL-STD-810G EN50155(M12 model only) |
| Mechanical | |
| Weight | 0.36Kg (0.79lbs) |
