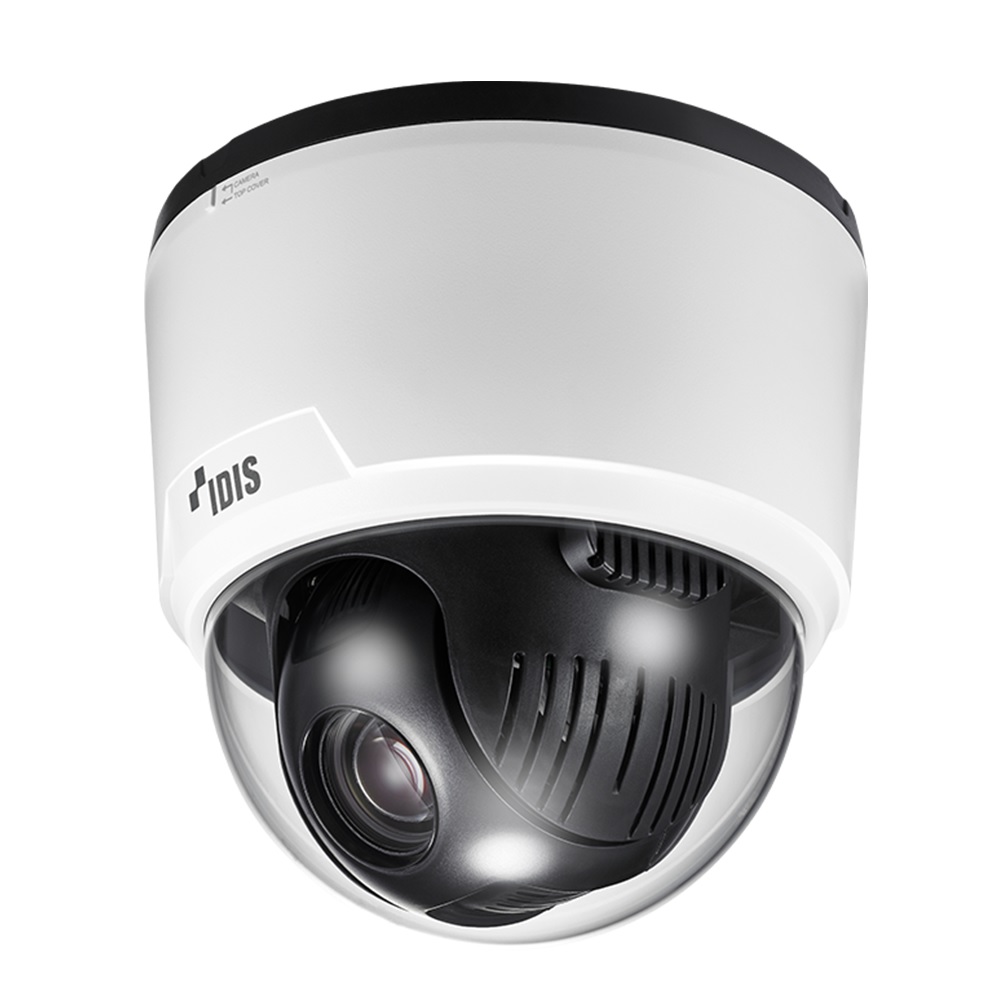

IDIS DC-S6261X-A Full HD 12x Compact PTZ Camera, NDAA Compliant
The IDIS DC-S6261X-A Full HD 12x Compact PTZ Camera is designed for high-performance video surveillance with its Full HD 1080p resolution, delivering sharp and clear images even in challenging lighting conditions. Equipped with a 12x optical zoom and auto-focus capabilities, this camera ensures detailed monitoring over long distances, making it ideal for large spaces such as parking lots or warehouses. Its compact design allows for easy installation in various locations, without compromising on performance or field of view.
The camera features advanced PTZ (Pan-Tilt-Zoom) functionality, allowing for precise control and flexible monitoring angles. With built-in IR LEDs, the DC-S6261X-A provides reliable night vision up to 100 meters, ensuring 24/7 surveillance. It supports IDIS’s Smart Failover technology, which ensures continuous recording even during network interruptions, safeguarding valuable footage. The camera is also equipped with advanced analytics, such as motion detection, tampering alerts, and object detection, enhancing security and operational efficiency. Its weather-resistant IP66-rated housing makes it suitable for both indoor and outdoor use, offering protection against dust, rain, and harsh environments. The DC-S6261X-A supports H.265 video compression, reducing bandwidth and storage requirements without compromising video quality. Additionally, it seamlessly integrates with the IDIS Center VMS, providing users with a comprehensive and scalable surveillance solution.
Key Features
- Full HD (1080p) resolution
- AF optical zoom lens (f=5.3 – 64mm), 12x zoom
- micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Electronic image stabilization (EIS)
- Alarm in / out
- PoE (IEEE 802.3af Class 3), 12V DC
- Easy installation with DirectIP NVR
- Supports ONVIF
$1,152.00 inc GST +3 Year Warranty & Support
2MP
Zoom Lens
True WDR
PoE
Easy Installation
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-S6261X-A Full HD 12x Compact PTZ Camera is designed to deliver exceptional surveillance performance with its advanced features and sleek, compact design. This camera boasts Full HD resolution, ensuring crystal-clear image quality even in challenging lighting conditions, making it ideal for both indoor and outdoor environments. Equipped with a powerful 12x optical zoom, it allows for precise monitoring and detailed close-up views of distant objects. The pan-tilt-zoom (PTZ) functionality offers wide coverage, with smooth and responsive control for tracking subjects across a large area. With its built-in IR LEDs, the camera ensures reliable night vision capabilities, providing clear visibility in complete darkness. The camera’s weatherproof and vandal-resistant housing (IP66 and IK10 ratings) ensures durability, making it suitable for harsh environmental conditions. It supports H.265, H.264, and MJPEG video compression technologies, optimizing bandwidth and storage efficiency while maintaining high-quality video streams. Smart analytics features, including motion detection and object tracking, enhance its ability to detect and respond to potential security threats. The camera is also ONVIF compliant, ensuring compatibility with a wide range of third-party security systems. Its compact design, combined with robust performance, makes the DC-S6261X-A an excellent choice for professional-grade surveillance in various applications.

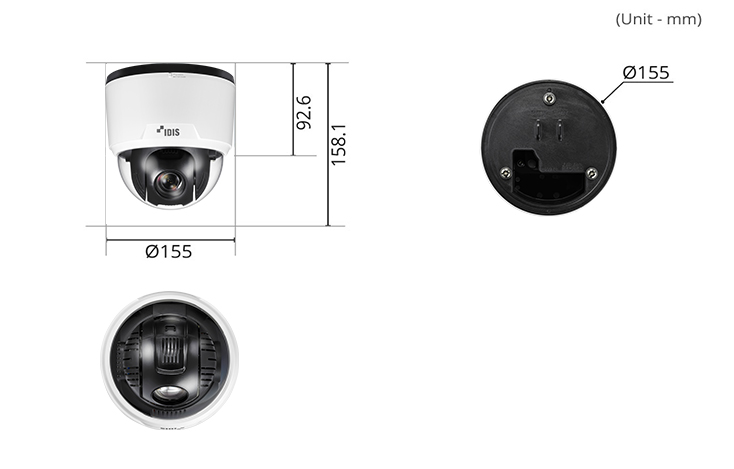

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8 |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | f=5.3 – 64mm (12X) |
| Aperture | F1.6 – 2.8 |
| Iris Control | DC Auto Iris (with hall sensor) |
| Angular Field of View | Wide : 58.2°(H), 34°(V), 65.3°(D) Tele : 4.83°(H), 2.8°(V), 5.7°(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0.01 lux @ F1.6 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | – |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Auto Tracking | No |
| Video Out | – |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~150°/sec (preset 150°/sec) |
| Tilt Range | 180° (0~180°) |
| Tilt Speed | 0.02~150°/sec (preset 150°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | – |
| Two-way Audio | – |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | – |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | – |
| Outdoor Ready | – |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12VDC, 9.2W / PoE (IEEE 802.3af Class 3), 10W |
| Approval | FCC, CE(50130-4), KC, UL |
| Mechanical – Brand | |
| Dimensions (Ø x H) | Ø155mm x 158.1mm (Ø6.1″ x 6.22″) |
| Weight | 1.0 kg |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 or
JUNCTION BOX
Model:DA-JB2200 |
|
Celling |
DA-MA2100
Model:DA-MA2100 +
CEILING MOUNT
Model:DA-CM2050 or
JUNCTION BOX
Model:DA-JB2200 |
|
Pole |
DA-MA2100
Model:DA-MA2100 +
WALL MOUNT
Model:DA-WM2050 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
DA-MA2100
Model: DA-MA2100 +
WALL MOUNT
Model: DA-WM2050 +
Corner Mount
Model: DA-RM2000 |
|
ETC |
Flush Mount
Model: DA-FM4600 |
