IDIS DC-S6281HX 2MP 30X Speed Dome Camera (WDR, IP67, Heater), NDAA Compliant
The IDIS DC-S6281HX is a robust 2MP 30X Speed Dome Camera designed for high-performance surveillance in diverse environments. Its 30x optical zoom ensures clear long-range imaging, making it ideal for monitoring large areas with precision. Featuring Wide Dynamic Range (WDR), the camera is capable of delivering clear images even in challenging lighting conditions with strong contrasts. The IP67-rated housing protects it from dust and water, allowing reliable outdoor use in harsh weather conditions. Additionally, the built-in heater ensures operation in low-temperature environments, preventing condensation or frost buildup on the lens. Its speed dome functionality enables rapid panning, tilting, and zooming, offering comprehensive coverage and flexibility for tracking moving objects. The camera supports multiple streaming formats, including H.265, which significantly reduces bandwidth usage while maintaining high-quality video. Enhanced with intelligent video analytics, the DC-S6281HX can detect and alert for various events like motion detection and tampering. The camera also offers night vision with IR illumination, ensuring visibility in complete darkness. Designed for durability, performance, and advanced surveillance, this camera is suited for critical outdoor security applications.
Key Features
- Easy installation with DirectIP NVR
- 2MP (1920×1080) resolution
- AF optical zoom lens (f=5.2 – 156mm), 30x zoom
- micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- Built-in heater
- PoE IEEE 802.3at (Class 4)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Image Stabilizer (EIS)
- Supports ONVIF
$2,425.00 inc GST +3 Year Warranty & Support
2MP
Zoom Lens
Heater
True WDR
Easy Installation
Two-way audio
IP67
IR Cut Filter Removable
PoE
ONVIF
NDAA Compliant
Electronic Image Stabilization
The IDIS DC-S6281HX is a cutting-edge 2MP Speed Dome Camera equipped with a powerful 30x optical zoom, enabling exceptional detail capture over long distances. This camera utilizes advanced Wide Dynamic Range (WDR) technology to produce clear images in scenes with extreme lighting variations, ensuring reliable performance in both bright and dark areas. With an IP67 rating, the camera’s housing is ruggedly constructed to withstand harsh environmental conditions, making it suitable for outdoor installations in diverse climates. The integrated heater allows the camera to function optimally in low temperatures, preventing frost and condensation that could impair visibility. Its high-speed pan and tilt capabilities allow for quick adjustments and tracking of moving subjects, making it a versatile tool for comprehensive surveillance coverage. The camera supports H.265 compression, which optimizes bandwidth efficiency while preserving video quality, thus reducing storage requirements. Featuring advanced intelligent video analytics, the DC-S6281HX can recognize and alert users to specific events, enhancing security monitoring effectiveness. Additionally, its infrared illumination capabilities enable night vision, providing reliable surveillance even in total darkness. Designed for robust and high-performance security applications, the DC-S6281HX is ideal for a wide range of environments, including urban areas, commercial properties, and critical infrastructure. Its combination of durability, advanced features, and exceptional image quality makes it a top choice for professional surveillance solutions.

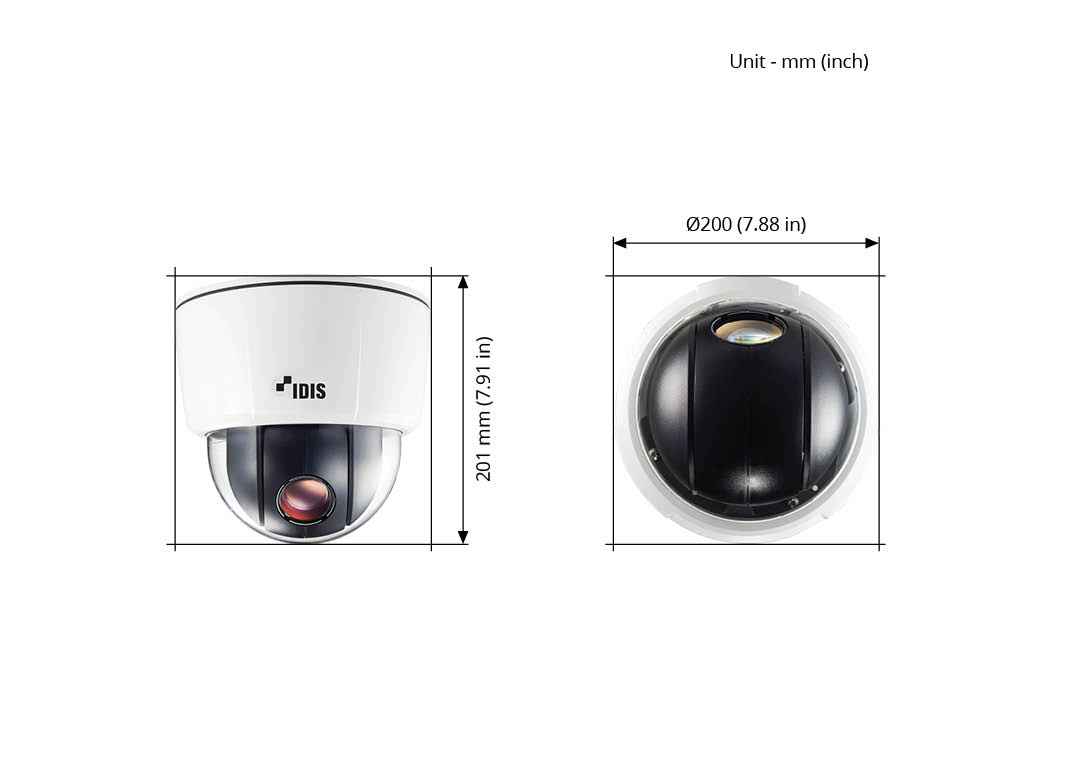

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 5.2 ~ 156mm |
| Aperture | F1.33 ~ F4.95 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 58.9°(H), 34.4°(V), 66.3°(D) Tele : 2.7°(H), 1.5°(V), 3.1°(D) |
| Min. Illumination | Color : 0.1 lux @ F1.33 B/W : 0.01 lux @ F1.33 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | – |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~180°/sec (preset 420°/sec) |
| Tilt Range | 100° (-10~90°) |
| Tilt Speed | 0.02~180°/sec (preset 420°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips: 1920 x 1080(WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 4 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, PoE IEEE 802.3at (Class 4) |
| Power Consumption | HEATER OFF 24V~, 0.8A, 13.8W, 50/60Hz PoE, IEEE 802.3at(Class 4), 13.6WHEATER ON 24V~, 1.0A, 17.6W, 50/60Hz PoE, IEEE 802.3at(Class 4), 17.2W |
| Approval | FCC, CE(50130-4), KC |
| Mechanical | |
| Dimensions | Ø200mm x 201mm (Ø7.88″ x 7.91″) |
| Weight | 2.54 kg (5.60 lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
ADAPTER PLATE
Model:DA-BM1100 +
Wall Mount
Model:DA-WM1400 or
Sun Shield
Model:DA-DH1100 +
Wall Mount
Model:DA-WM1400 |
|
Celling |
ADAPTER PLATE
Model:DA-BM1100 +
Ceilling Mount
Model:DA-CM1300 or
ADAPTER PLATE
Model:DA-BM1100 +
Ceilling Mount
Model:DA-CM1500 or
Sun Shield
Model:DA-DH1100 +
Ceilling Mount
Model:DA-CM1300 or
Sun Shield
Model:DA-DH1100 +
Ceilling Mount
Model:DA-CM1500 |
|
Pole |
ADAPTER PLATE
Model:DA-BM1100 +
Wall Mount
Model:DA-WM1400 +
Pole Mount
Model:DA-LM1100 or
Sun Shield
Model:DA-DH1100 +
Wall Mount
Model:DA-WM1400 +
Pole Mount
Model:DA-LM1100 |
|
Corner |
ADAPTER PLATE
Model: DA-BM1100 +
Wall Mount
Model: DA-WM1400 +
Corner Mount
Model: DA-RM1100 or
Sun Shield
Model: DA-DH1100 +
Wall Mount
Model: DA-WM1400 +
Corner Mount
Model: DA-RM1100 |
