IDIS DC-S6286HRXL 2MP 36x Lightmaster IR PTZ Camera, NDAA Compliant
The IDIS DC-S6286HRXL 2MP 36x Lightmaster IR PTZ Camera is a high-performance surveillance solution designed for both day and night operation. It features a 2MP sensor that delivers Full HD video quality with sharp clarity and precision, making it suitable for large areas requiring detailed monitoring. Equipped with a powerful 36x optical zoom, the camera ensures close-up views of distant objects without losing image quality. Its advanced Lightmaster technology offers superior low-light performance, enabling clear video capture even in extremely dark environments. The built-in IR illumination extends the camera’s visibility up to 350 meters, providing excellent nighttime surveillance capabilities. The PTZ (Pan-Tilt-Zoom) functionality allows for dynamic control, covering vast areas with smooth movement in all directions. With IP66 and IK10 ratings, the camera is resistant to harsh weather and vandalism, ensuring durability and reliability in outdoor installations. The camera supports H.265 video compression, reducing bandwidth and storage requirements while maintaining high-quality video streams. It also includes intelligent video analytics, such as object detection and tracking, enhancing situational awareness for security teams. Additionally, the camera integrates seamlessly with IDIS’s Total Solution platform, allowing for centralized control and easy system management.
Key Features
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- AF optical zoom lens (f=6 – 216mm), 36x zoom
- Two-way audio
- Alarm in / out
- IK10 / IP66 supports
- Built-in heater
- High-PoE, 24V AC
- Day and night (ICR)
- True wide dynamic range (WDR)
- Digital image stabilization (DIS)
- 350 m / 1,148.2 ft (2ea)
- Supports ONVIF
$3,182.00 inc GST +3 Year Warranty & Support
2MP
Zoom Lens
Heater
IR LED
True WDR
Easy Installation
Two-way audio
IP66
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-S6286HRXL 2MP 36x Lightmaster IR PTZ Camera offers exceptional imaging performance with its Full HD 2MP resolution, providing crisp and clear video even in challenging conditions. Its 36x optical zoom allows for detailed close-ups of distant objects, making it ideal for monitoring large areas such as parking lots, airports, or stadiums. The Lightmaster technology ensures superior low-light performance, capturing clear images in near-darkness, while the integrated IR LEDs extend night vision up to 350 meters. The PTZ functionality provides flexible coverage, allowing the camera to pan, tilt, and zoom with precision, ensuring no blind spots in its surveillance area. Built to withstand harsh environments, the camera is IP66-rated for weather resistance and IK10-rated for vandal resistance, making it ideal for outdoor installations. The camera supports H.265 compression, which reduces bandwidth usage and storage costs while maintaining high-quality video. Advanced video analytics, including motion detection, tampering alarms, and auto-tracking, enhance security monitoring by providing automated responses to potential threats. The camera’s built-in heater allows it to operate in extreme temperatures, ensuring reliable performance in both hot and cold conditions. It also integrates seamlessly with the IDIS Total Solution platform, offering easy setup and centralized control for large-scale security systems.

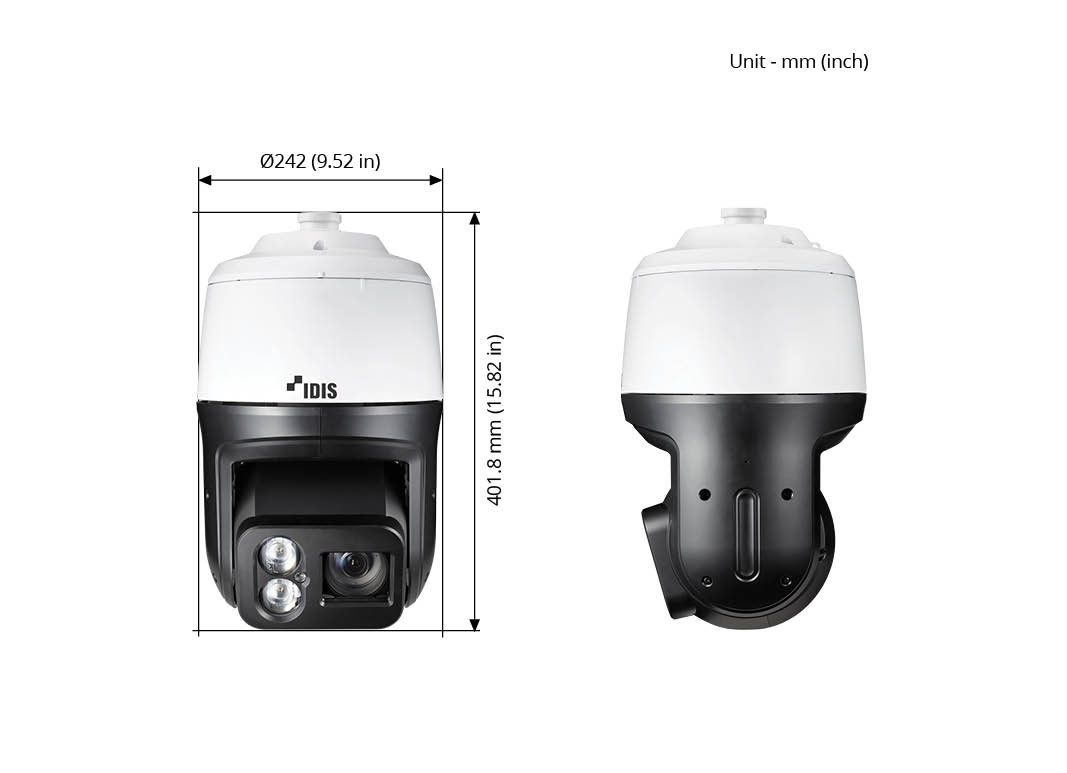

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6 ~ 216mm |
| Aperture | F1.36 ~ F4.6 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 57.4°(H), 33.1°(V), 65.2°(D) Tele : 1.9°(H), 1.1°(V), 2.2°(D) |
| Min. Illumination | Color : 0.02 lux @ F1.36 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 350 m / 1,148.2ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~180°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~180°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips :1920 x 1080(WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, High-PoE (75W) |
| Power Consumption | Max 39.6W(Heater/IR on) HEATER/IR OFF 24V~, 1.6A, 26.2W, 50/60Hz High-PoE, 50-57V, 23.6WHEATER/IR ON 24V~, 2.3A, 39.6W, 50/60Hz High-PoE, 50-57V, 35.6W |
| Approval | FCC, CE(50130-4), KC |
| Mechanical | |
| Dimensions | Ø242mm x 401.8mm (Ø9.52″ x 15.82″) |
| Weight | 6.7kg (14.77 lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Wall Mount
Model:DA-WM1400 |
|
Celling |
Ceilling Mount
Model:DA-CM1300 or
Ceilling Mount
Model:DA-CM1500 |
|
Pole |
Wall Mount
Model:DA-WM1400 +
Pole Mount
Model:DA-LM1100 |
|
Corner |
Wall Mount
Model: DA-WM1400 +
Corner Mount
Model: DA-RM1100 |
| Manual DC-S6286HRXL-A Quick Guide | Download |
| Manual DC-S6286HRXL-A Operation Manual | Download |
| Manual DC-S6286HRXL-A Installation Manual | Download |
| A&E Specification DC-S6286HRXL A&E Specification v1.0 | Download |
| Software DC-S6286 series firmware v2.0.0_JAPAN | Download |
| Software DC-S6286 series firmware v2.0.0 | Download |
| Brochure DC-S6286HRXL | |Automatically Generate Brochure |
