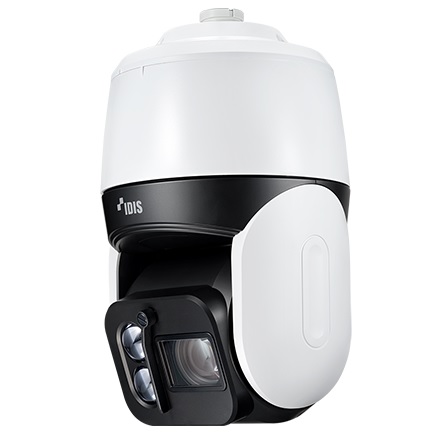

IDIS DC-S6881HRX 8MP 31x IR PTZ Camera, NDAA Compliant
The IDIS DC-S6881HRX 8MP 31x IR PTZ Camera offers exceptional image clarity with its 8MP resolution, ensuring detailed surveillance footage even in challenging environments. Equipped with a powerful 31x optical zoom, it allows for close-up views of distant objects without sacrificing image quality. The camera’s built-in infrared (IR) capability provides clear nighttime visibility up to 300 meters, making it ideal for 24/7 monitoring. With True Wide Dynamic Range (WDR) technology, it can handle high-contrast lighting conditions, delivering balanced images even in scenes with both bright and dark areas. The PTZ (pan-tilt-zoom) functionality offers flexible coverage, allowing users to control the camera’s movements remotely for comprehensive area surveillance. Its robust weatherproof design, rated IP66, ensures reliable performance in extreme outdoor conditions, including dust and heavy rain. The camera also features H.265 video compression, reducing bandwidth and storage needs while maintaining high-quality footage. Its advanced motion detection and auto-tracking capabilities enhance security by automatically focusing on suspicious activities. The DC-S6881HRX supports multi-streaming for efficient monitoring and playback across different devices. Additionally, its built-in defogging technology ensures clear images even in foggy or misty conditions, further enhancing its utility in diverse environments.
Key Features
- Easy installation with DirectIP NVR
- 4K UHD (3840 x 2160) resolution
- AF optical zoom lens (f=6.5 – 202mm), 31x zoom
- micro SD/SDHC/SDXC, Smart Failover
- Two-way audio
- Alarm in / out
- IK10 / IP66 rated for protection
- Built-in heater
- PoE (High-PoE)
- Day and night (ICR)
- True wide dynamic range (WDR)
- Electronic image stabilization (EIS)
- 300 m/984.3ft IR range (2ea)
- Supports ONVIF
$4,697.00 inc GST +3 Year Warranty & Support
8MP
Zoom Lens
Heater
IR LED
True WDR
Easy Installation
Two-way audio
IP66
PoE
IR Cut Filter Removable
ONVIF
NDAA Compliant
Electronic Image Stabilization
The IDIS DC-S6881HRX 8MP 31x IR PTZ Camera is designed for high-performance surveillance, offering an impressive 8MP resolution for clear, detailed images. With a 31x optical zoom, it allows users to zoom in on distant subjects while maintaining image quality, making it ideal for wide-area monitoring. This camera is equipped with infrared (IR) technology, providing visibility in low-light conditions up to 300 meters. Its Pan-Tilt-Zoom (PTZ) functionality offers flexible control, enabling remote adjustments for complete 360-degree coverage. The camera’s True WDR (Wide Dynamic Range) ensures excellent performance in scenes with varying lighting, balancing out bright and dark areas for clearer footage. The rugged construction, featuring IP66 and IK10 ratings, ensures durability in harsh environments, protecting against weather and vandalism. With H.265 video compression, the DC-S6881HRX reduces bandwidth and storage needs without compromising image quality. Its intelligent video analytics, including auto-tracking and motion detection, enhance security by identifying potential threats and focusing on moving targets. The built-in defog feature ensures visibility even in challenging weather conditions like fog or rain. Additionally, this camera supports multi-streaming, allowing simultaneous live monitoring and recording on different platforms for greater operational flexibility.

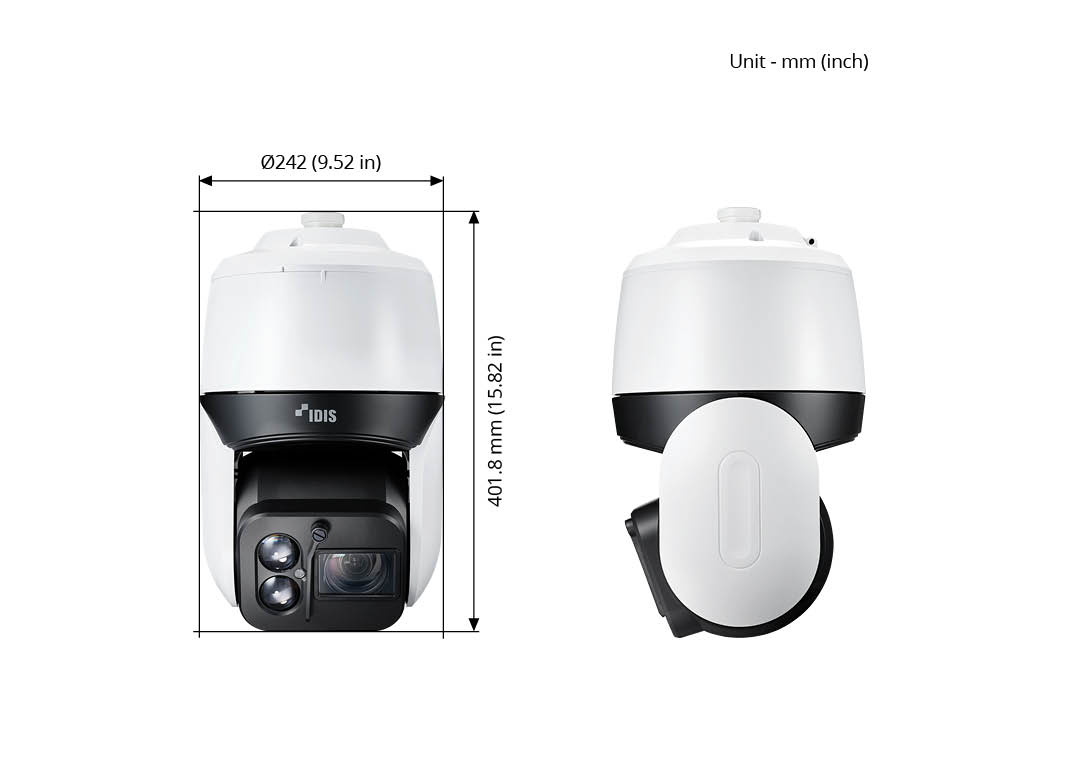

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/1.8″ CMOS |
| Max. Resolution | 3840 x 2160 |
| Scanning Mode | Progressive Scan |
| Lens Type | AF Zoom Lens |
| Focal Length | 6.5 ~ 202mm |
| Aperture | F1.55 ~ F4.8 |
| Iris Control | DC Iris (Hall Sensor) |
| Angular Field of View | Wide : 63º(H), 37.6º(V), 70.3º(D) Tele : 2.4º(H), 1.3º(V), 2.7º(D) |
| Min. Illumination | Color : 0.1 lux @ F1.55 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 300 m/984.3ft (2ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical |
| Image Stabilizer | Yes (EIS) |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 Terminal Block |
| Pan/Tilt/Rotate | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.02~240°/sec (preset 240°/sec) |
| Tilt Range | 200° (-10~190°) |
| Tilt Speed | 0.02~240°/sec (preset 240°/sec) |
| Preset | 256ea |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.264 – CBR / VBR, H.265 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 3840 x 2160(WDR) |
| Supported Resolution | 3840 x 2160, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 8 / 2 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP66 |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 24VAC, High-PoE (75W) |
| Power Consumption | HEATER, IR LED OFF 24V~, 1.2A, 21.1W, 50/60Hz High-PoE, 50-57V, 20.3WHEATER, IR LED ON 24V~, 3.4A, 65.8W, 50/60Hz High-PoE, 50-57V, 60.0W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Ø242mm x 401.8mm (Ø9.52″ x 15.82″) |
| Weight | 7.4kg (16.31lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Wall Mount
Model:DA-WM1400 |
|
Celling |
Ceilling Mount
Model:DA-CM1300 or
Ceilling Mount
Model:DA-CM1500 |
|
Pole |
Wall Mount
Model:DA-WM1400 +
Pole Mount
Model:DA-LM1100 |
|
Corner |
Wall Mount
Model: DA-WM1400 +
Corner Mount
Model: DA-RM1100 |
| Brochure DC-S6881HRX-A | Download |
| A&E Specification DC-S6881HRX A&E Specification v1.1 | Download |
| Brochure DC-S6881HRX | Download |
| Manual DC-S6681 / S6881 HRX(-A) Quick Guide v1.3 | Download |
| Manual DC-S6681 / S6881 HRX(-A) Operation Manual v1.3 | Download |
| Manual DC-S6681 / S6881 HRX(-A) Installation Manual v1.3 | Download |
| Software DC-S6681 / S6881 HRX(-A) Firmware v1.4.0_JAPAN | Download |
| Software DC-S6681 / S6881 HRX(-A) Firmware v1.4.0 | Download |
| Brochure DC-S6881HRX | |Automatically Generate Brochure |
