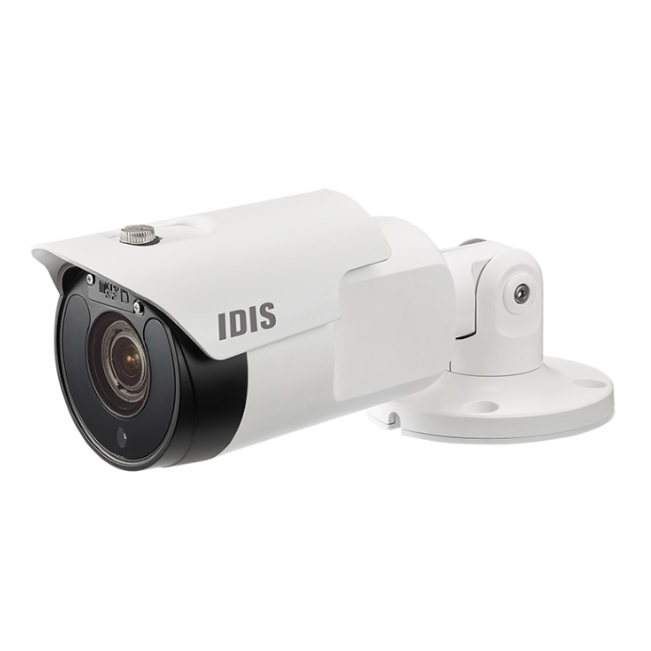

IDIS DC-T4236WRX Full HD IR Bullet Camera, NDAA Compliant
The IDIS DC-T4236WRX is a high-performance Full HD IR Bullet Camera designed to deliver exceptional image quality in various lighting conditions. Featuring a 2MP resolution and a motorized 2.8-12mm varifocal lens, this camera provides crisp, clear images with adjustable zoom and focus capabilities. It comes equipped with advanced IR LEDs, enabling clear visibility in complete darkness up to 30 meters, making it ideal for outdoor and low-light environments. The camera supports H.265 compression, which significantly reduces bandwidth and storage requirements while maintaining high image quality. With its built-in true wide dynamic range (WDR) of 120dB, the DC-T4236WRX can handle challenging lighting scenarios, ensuring balanced exposure and detail in both bright and dark areas. Its rugged design, rated IP67 for weather resistance and IK10 for vandal resistance, ensures durability in harsh environments. The camera also supports two-way audio, allowing for real-time communication. It integrates seamlessly with the IDIS Total Solution for easy installation and management. Additionally, the camera offers intelligent video analytics, such as motion detection and tampering alarms, enhancing security monitoring. Powered by PoE, the DC-T4236WRX simplifies cabling and installation, making it an efficient choice for both small and large surveillance setups.
Key Features
- Easy installation with DirectIP NVR
- Full HD (1080p) resolution
- Motorized Vari-focal lens (f=2.8 – 12mm)
- micro SD/SDHC/SDXC support
- Two-way audio
- Alarm in / out
- IK10 / IP67-rated protection
- PoE (IEEE 802.3af Class 3), 12V DC
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30 m / 98.4 ft, 6 LEDs)
- 3-axis mechanical design for installation
- Supports ONVIF
$579.00 inc GST +3 Year Warranty & Support
2MP
Motorized Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-T4236WRX Full HD IR Bullet Camera is designed for superior surveillance performance, boasting a 2MP resolution that ensures high-definition image clarity. Equipped with a motorized 2.8-12mm varifocal lens, this camera allows for precise control over the field of view and focus, optimizing coverage for various environments. Its infrared (IR) functionality provides night vision capabilities up to 30 meters, ensuring clear visibility even in complete darkness. The camera features advanced H.265 video compression, reducing storage and bandwidth requirements while maintaining excellent image quality. With true wide dynamic range (WDR) technology, it excels in handling complex lighting conditions, capturing detail in both bright and shaded areas. The DC-T4236WRX is built with an IP67-rated weatherproof casing, offering reliable protection against dust and heavy rain, and its IK10-rated vandal resistance ensures durability in high-risk areas. Additionally, it supports intelligent video analytics such as motion detection and tampering alarms, adding a layer of proactive security. This camera integrates seamlessly with IDIS’s Total Solution for easy configuration and operation, making it suitable for a wide range of applications. With Power over Ethernet (PoE) support, installation is simplified by reducing the need for additional cabling.

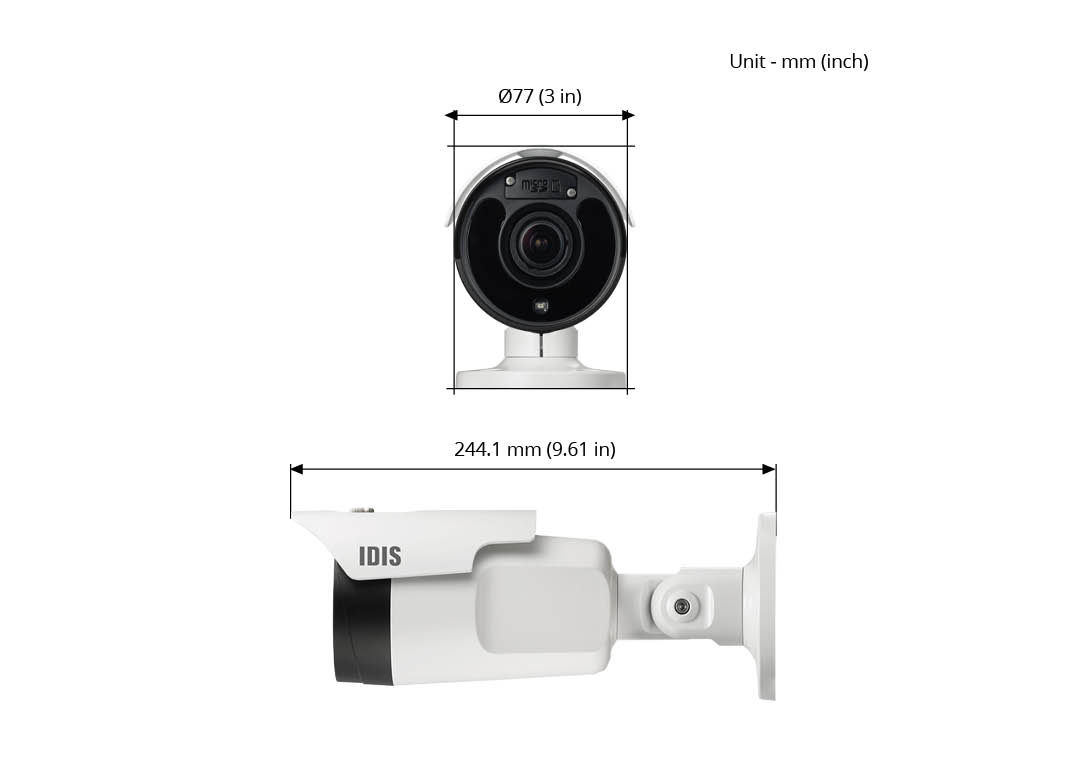

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.8 ~ 12mm |
| Aperture | F1.4 ~ F2.8 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 98º(H) 51º(V) 116º(D) Tele : 33º(H) 19º(V) 38(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30 m / 98.4 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 30ips : 1920 x 1080(WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -20°C ~ +55°C (-4°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE, IEEE 802.3af(Class 3) |
| Power Consumption | 12V=, 0.78A, 9.3W PoE, IEEE 802.3af(Class 3), 8.5W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | Φ 77mm X 244.1mm (Φ 3″ x 9.61″) |
| Weight | 0.84kg (1.85 lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Junction Box
Model:DA-JB4150 or
Junction Box
Model:DA-JB2400 |
|
Celling |
Junction Box
Model:DA-JB4150 or
Junction Box
Model:DA-JB2400 |
|
Pole |
Junction Box
Model:DA-JB4150 +
Pole Mount
Model:DA-LM2000 or
Pole Mount
Model:DA-LM2000 +
Junction Box
Model:DA-JB2400 |
|
Corner |
Corner Mount
Model: DA-RM2000 +
Junction Box
Model: DA-JB2400 or
Junction Box
Model: DA-JB4150 +
Corner Mount
Model: DA-RM2000 |
