2MP Bullet Cameras, Bullet Cameras, CCTV Surveillance, IDIS

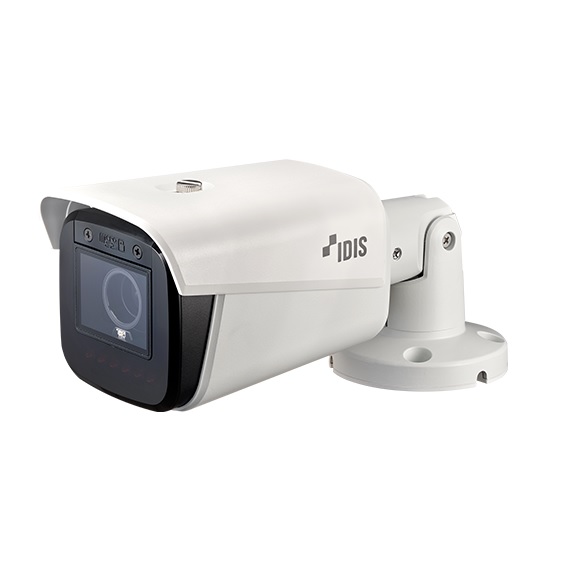

IDIS DC-T4238HRA H.265 2MP AI Bullet Camera (LightMaster NIR) / NDAA Compliant
The IDIS DC-T4238HRA H.265 2MP AI Bullet Camera is designed for robust outdoor surveillance with advanced AI capabilities. It offers 2MP resolution, ensuring high-quality video clarity, and utilizes H.265 video compression to minimize storage and bandwidth requirements while maintaining excellent image quality. This camera is equipped with intelligent video analytics (IVA), enhancing security by detecting unusual events such as object classification and people counting. Its infrared (IR) capabilities allow for clear video capture even in complete darkness, with an effective range of up to 50 meters. The camera is built with a durable IP67-rated weatherproof housing, ensuring protection against harsh environmental conditions. It also supports wide dynamic range (WDR) technology to handle challenging lighting conditions, delivering clear images in both bright and dark areas of the scene. The DC-T4238HRA features simple installation with its built-in motorized varifocal lens, providing flexibility for different monitoring areas. It integrates seamlessly with IDIS DirectIP NVRs for a streamlined, plug-and-play setup. The camera’s AI-driven functionalities also include facial detection, tampering alarms, and heat mapping for advanced security insights. Its sleek, modern design is complemented by high reliability and efficient performance in various surveillance applications.
Key Features
- 2MP (1920 x 1080) resolution
- IDIS Deep-Learning Analytics (IDLA)
- IR LED (50 m / 164 ft, 6 ea)
- NIR Sensor
- Day and night (ICR)
- True wide dynamic range (WDR)
- Easy installation with DirectIP NVR
- H.265 and Intelligent Codec
- PoE (IEEE 802.3af Class 3)
- IK10, IP67
- Alarm in / out
- Audio in / out
- Built-in heater
- micro SD/SDHC/SDXC
- Supports ONVIF
$758.00 inc GST +3 Year Warranty & Support
Artificial Intelligence
LightMaster NIR
2MP
Motorized Lens
Heater
IR LED
AI Embedded
Easy Installation
PoE
IP67
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-T4238HRA H.265 2MP AI Bullet Camera offers exceptional video surveillance performance, utilizing a 2MP sensor to deliver crisp, clear images. With H.265 compression technology, it reduces bandwidth and storage requirements without sacrificing video quality. The camera is equipped with AI-powered features, such as object detection, line crossing, and loitering detection, enhancing its ability to detect and analyze security threats in real time. Its built-in infrared (IR) LEDs provide night vision capabilities, allowing it to capture footage up to 50 meters away in low-light or no-light conditions. The camera’s IP67-rated weatherproof and IK10 vandal-resistant housing makes it ideal for both indoor and outdoor installations, ensuring durability in extreme weather or high-risk areas. The camera also offers a motorized varifocal lens, enabling easy focus and zoom adjustments remotely for precise monitoring. It includes support for wide dynamic range (WDR), which helps produce high-quality images in scenes with complex lighting, such as bright and shaded areas. With seamless integration into IDIS’s DirectIP system, the DC-T4238HRA allows for simple installation and efficient management. Its AI functions also assist with operational insights, such as heat mapping, people counting, and facial recognition, making it a versatile choice for a wide range of surveillance needs.
Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | 2.8 ~ 12mm |
| Aperture | F1.4 ~ F3.1 |
| Iris Control | DC Iris |
| Angular Field of View | Wide : 105.7º(H) 55.3º(V) 126.4º(D) Tele : 34º(H) 19.1º(V) 39.1º(D) |
| Min. Illumination | COLOR : 0.1 lux @ F1.4 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 50 m / 164 ft (6 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | – |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 60ips : 1920 x 1080 30ips : 1920 x 1080 (WDR) |
| Supported Resolution | 1920×1080, 1280×720, 640×360, 352×240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67, Heater |
| Operating Temperature | -40°C ~ +60°C (-40°F ~ +140°F) *Starting up at above -20°C (-4°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 1.1A, 13.2W PoE, IEEE 802.3af (Class 3), 8.3W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 89.3mm X 89.3mm X 277.6mm (3.52″ x 3.52″ x 10.93″) |
| Weight | 1.293kg (2.85lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Junction Box
Model:DA-JB4150 or
Junction Box
Model:DA-JB2400 |
|
Pole |
Pole Mount
Model:DA-LM2000 +
Junction Box
Model:DA-JB2400 or
Junction Box
Model:DA-JB4150 +
Pole Mount
Model:DA-LM2000 |
|
Corner |
Junction Box
Model: DA-JB4150 +
Corner Mount
Model: DA-RM2000 or
Corner Mount
Model: DA-RM2000 +
Junction Box
Model: DA-JB2400 |
