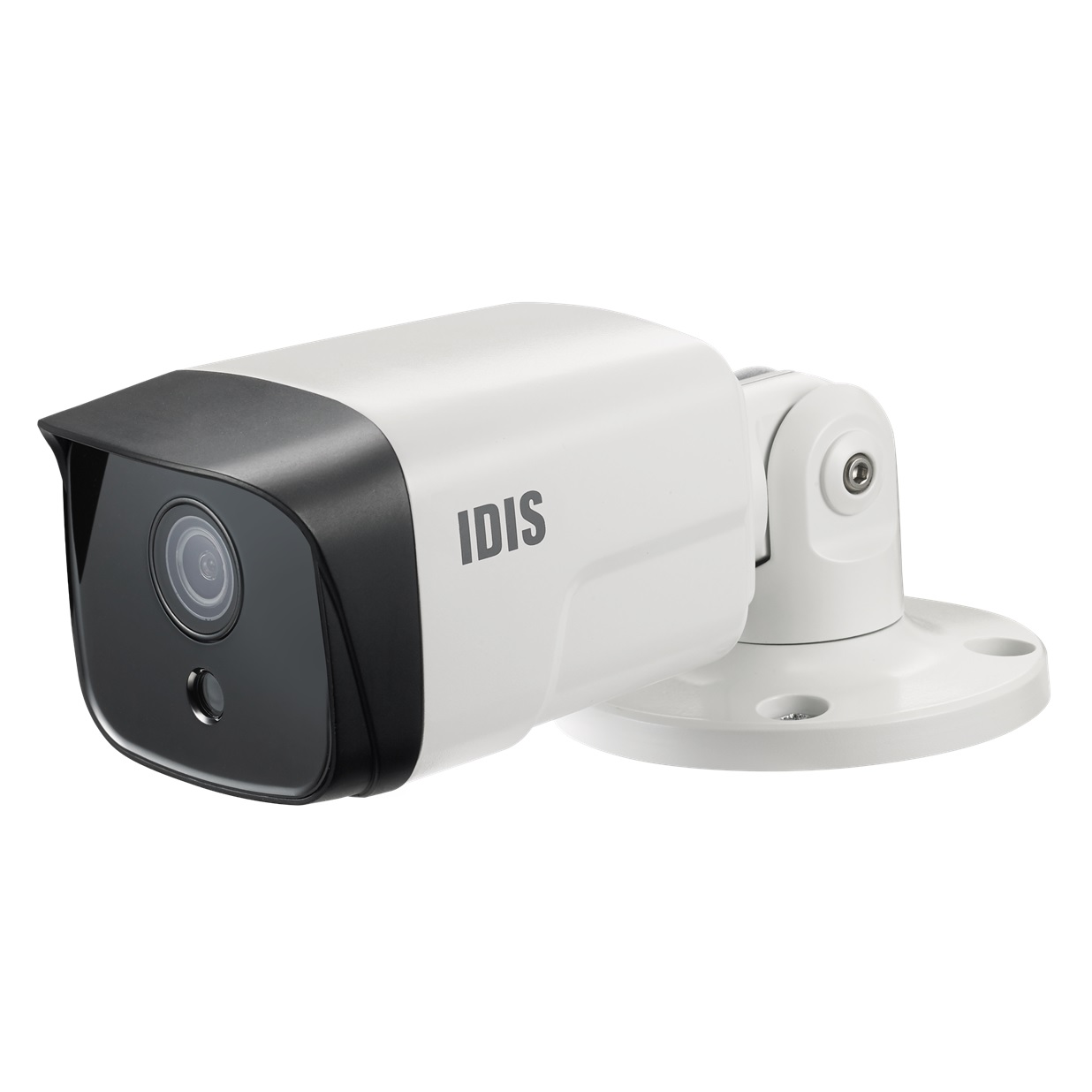

IDIS DC-T4516WRX 2.8mm 5MP IR Bullet Camera, NDAA Compliant
The IDIS DC-T4516WRX is a robust 5MP IR bullet camera designed for high-performance surveillance in various environments. It features a 2.8mm fixed lens that provides a wide field of view, making it ideal for monitoring large areas such as parking lots, entrances, or corridors. With its advanced IR LED technology, the camera can deliver clear images in low-light or complete darkness, covering distances of up to 30 meters. The DC-T4516WRX is equipped with H.265 and H.264 dual codec support, ensuring efficient video compression without sacrificing image quality. This camera also boasts true wide dynamic range (WDR) at 120dB, enabling it to handle challenging lighting conditions, such as high-contrast scenes. Its IP67 weatherproof and IK10 vandal-resistant housing makes it suitable for outdoor installations where durability is essential. The camera supports Power over Ethernet (PoE), simplifying the installation process by requiring just one cable for both power and data. IDIS Smart Failover ensures that recording continues even in network disruptions, preserving crucial footage. The DC-T4516WRX is ONVIF-compliant, ensuring compatibility with a wide range of video management systems. This camera is an ideal solution for high-resolution, reliable surveillance in challenging environments.
Key Features
- Easy installation with DirectIP NVR
- 5MP (2592×1944) resolution
- Fixed-focal lens (f=2.8mm)
- micro SD/SDHC/SDXC
- Two-way audio
- Alarm in / out
- IK10 / IP67 supports
- PoE (IEEE 802.3af Class 3)
- Day and night (ICR)
- True wide dynamic range (WDR)
- IR LED (30 m / 98.4 ft, 4 ea)
- Supports ONVIF
$334.00 inc GST +3 Year Warranty & Support
5MP
Fixed Lens
Weather Proof
IR LED
True WDR
Easy Installation
Two-way audio
IP67
PoE
ONVIF
NDAA Compliant
IR Cut Filter Removable
The IDIS DC-T4516WRX 5MP IR Bullet Camera is a high-resolution surveillance solution designed to capture detailed footage in both day and night conditions. Equipped with a 2.8mm fixed lens, it provides an expansive view, making it perfect for monitoring large outdoor areas. Its advanced infrared technology ensures clear images up to 30 meters even in complete darkness. With support for H.265 and H.264 video compression, it optimizes bandwidth usage while maintaining excellent image quality. The camera’s 120dB true WDR (Wide Dynamic Range) allows it to handle environments with extreme lighting contrasts, ensuring balanced image exposure. Its IP67-rated weatherproof design makes it resistant to harsh weather conditions, while the IK10-rated vandal-resistant housing protects it from physical damage. The DC-T4516WRX also includes IDIS Smart Failover, which ensures continuous recording even during network outages. Power over Ethernet (PoE) simplifies the installation by combining power and data transmission into one cable. ONVIF compliance ensures the camera integrates seamlessly with other video management systems, making it a flexible choice for professional-grade surveillance solutions.

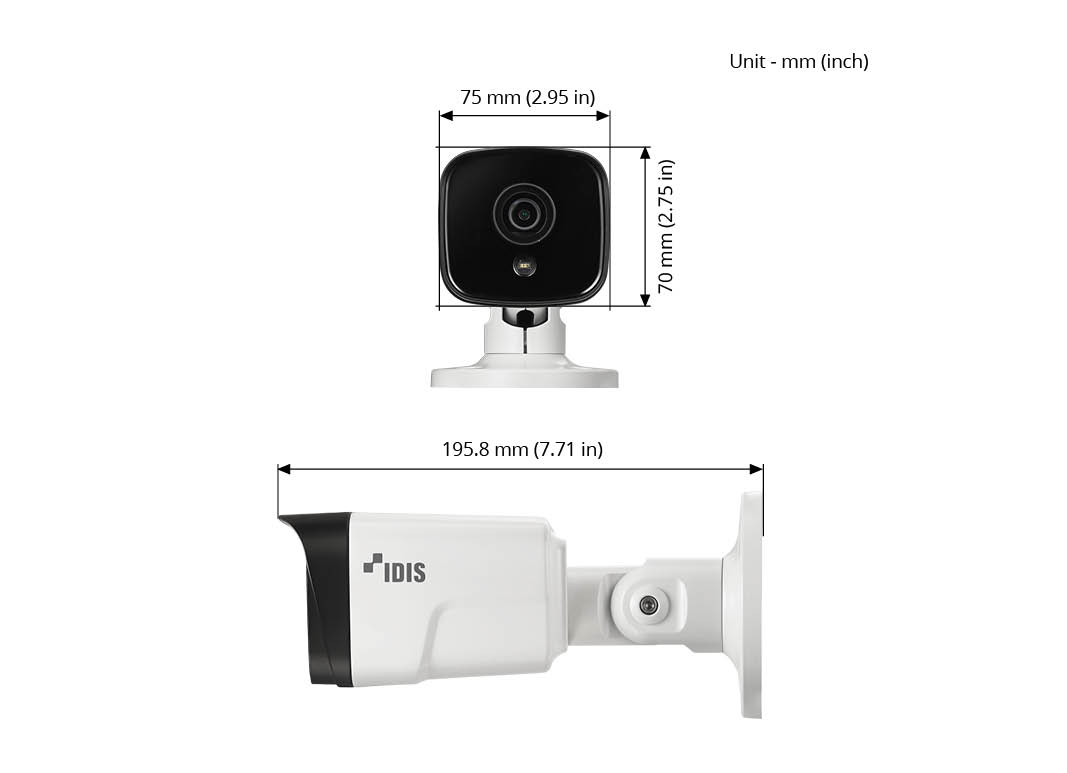

Dimension
Technical Specifications
| Video | |
| Image Sensor | 1/2.8″ CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | 2.8mm |
| Aperture | F2.0 |
| Iris Control | Fixed Iris |
| Angular Field of View | 4:3 mode : 104.8º(H) 76.9º(V) 130º(D) 16:9 mode : 104.8º(H) 57.1º(V) 122.9º(D) |
| Min. Illumination | COLOR : 0.15 lux @ F2.0 B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15) |
| Day and Night | Yes (ICR) |
| IR Distance (LEDs) | 30 m / 98.4 ft (4 ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | BLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | – |
| De-fog | Yes |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | – |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Yes |
| Bitrate Control | H.265 – CBR / VBR, H.264 – CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S/T |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supported Resolution | 4:3 : 2592×1944, 1920×1440, 1280×960, 640×480 16:9 : 2592×1456, 1920×1080, 1280×720, 640×360 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2 |
| Security | Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 512GB) |
| Alarm and Event | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio Alarm | Yes |
| Audio In / Out | 1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +131°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | PoE, (IEEE 802.3af Class 3), 7.9W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 75mm x 70mm x 195.8mm (2.95″ x 2.75″ x 7.71″) |
| Weight | 0.66 kg (1.46lb) |
Video
Accessory Configuration
| Installation environment | Accessory configuration |
|
Wall |
Junction Box
Model:DA-JB4150 or
Junction Box
Model:DA-JB2400 |
|
Celling |
Junction Box
Model:DA-JB4150 or
Junction Box
Model:DA-JB2400 |
|
Pole |
Junction Box
Model:DA-JB4150 +
Pole Mount
Model:DA-LM2000 or
Pole Mount
Model:DA-LM2000 +
Junction Box
Model:DA-JB2400 |
|
Corner |
Corner Mount
Model: DA-RM2000 +
Junction Box
Model: DA-JB2400 or
Junction Box
Model: DA-JB4150 +
Corner Mount
Model: DA-RM2000 |
