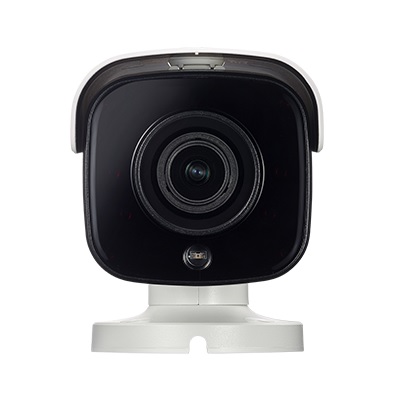

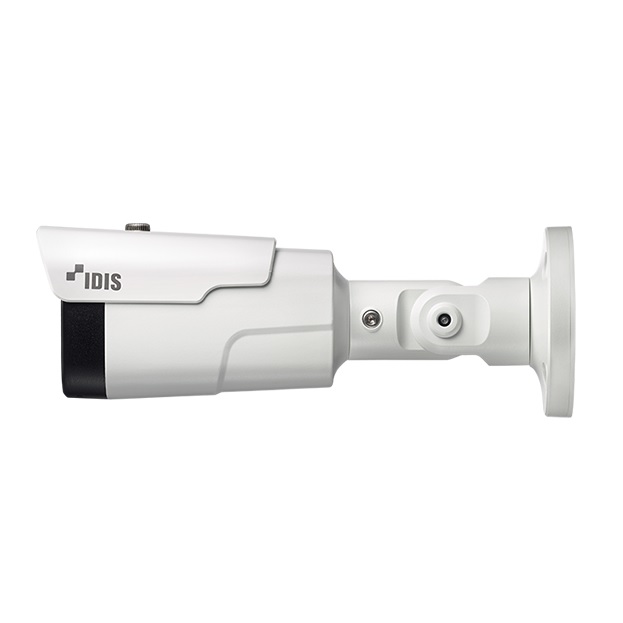

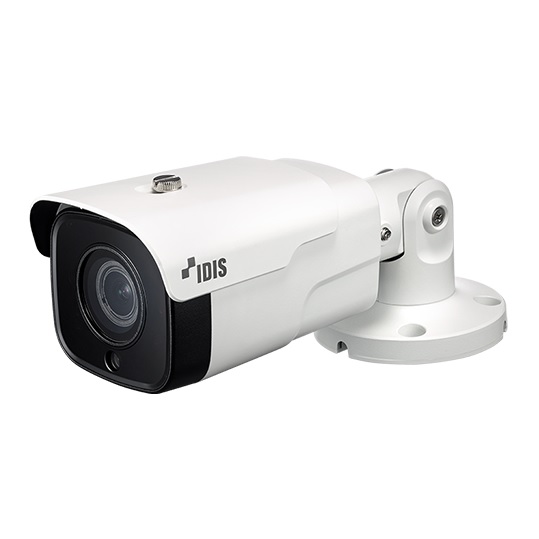

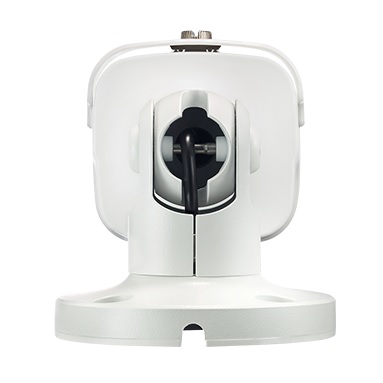

IDIS DC-T4831HRX 8MP IR Bullet Camera with Heater, NDAA Compliant


The IDIS DC-T4831HRX is an 8MP IR Bullet Camera designed for high-performance surveillance in diverse environments. Equipped with a built-in heater, it ensures reliable operation even in extreme temperatures, making it ideal for outdoor installations. The camera features 8MP resolution, delivering ultra-clear and detailed images for enhanced security monitoring. Its infrared capabilities provide superior night vision, allowing visibility in total darkness up to 40 meters. With its weatherproof IP67 rating and vandal-resistant IK10 rating, the DC-T4831HRX offers durability and protection against harsh weather conditions and physical impact. The camera supports H.265 video compression, significantly reducing bandwidth and storage requirements while maintaining high-quality footage. Wide Dynamic Range (WDR) technology ensures balanced image quality in challenging lighting conditions, effectively managing areas with both bright and dark spots. The camera’s smart IR function automatically adjusts infrared light intensity to prevent overexposure of close objects. It supports multiple intelligent video analytics, such as motion detection and tamper detection, enhancing proactive security measures. Additionally, the DC-T4831HRX is compatible with IDIS’s DirectIP NVRs for seamless integration and easy setup in large-scale surveillance systems.

Key Features

  • Easy installation with DirectIP NVR
  • 8MP (3840×2160) resolution
  • Motorized Vari-focal lens (f=2.7 – 13.5mm)
  • Micro SD/SDHC/SDXC, Smart Failover
  • Two-way audio
  • Alarm in/out
  • IK10 / IP67 support
  • Built-in heater
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (40 m / 131.2 ft, 6 LEDs)
  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-T4831HRX Datasheet

$849.00 inc GST +3 Year Warranty & Support


          8MP

Motorized Lens

        Heater

       IR LED

True WDR

Easy Installation

    Two-way audio

          IP67

          PoE

       ONVIF

NDAA Compliant

    IR Cut Filter Removable



The IDIS DC-T4831HRX 8MP IR Bullet Camera with Heater is a robust and high-performance surveillance solution designed for challenging environments. With its 8MP resolution, it captures incredibly clear and detailed images, making it suitable for high-security applications. The built-in heater ensures the camera operates smoothly even in extreme temperatures, maintaining reliable performance in harsh weather conditions. Its infrared (IR) functionality provides up to 40 meters of visibility in complete darkness, offering excellent low-light performance. This camera features Wide Dynamic Range (WDR) technology, which balances lighting across the image, ensuring clarity in both bright and dark areas. The durable housing comes with an IP67 weatherproof and IK10 vandal-resistant rating, providing protection from environmental elements and physical damage. The DC-T4831HRX also supports H.265 video compression, reducing bandwidth usage while retaining high video quality, which optimizes storage efficiency. It incorporates smart IR technology, preventing overexposure of objects close to the camera during night-time surveillance. With intelligent video analytics, such as motion detection and tamper alerts, it enhances proactive security measures. Finally, its seamless compatibility with IDIS DirectIP solutions allows for easy installation and integration into existing surveillance networks.

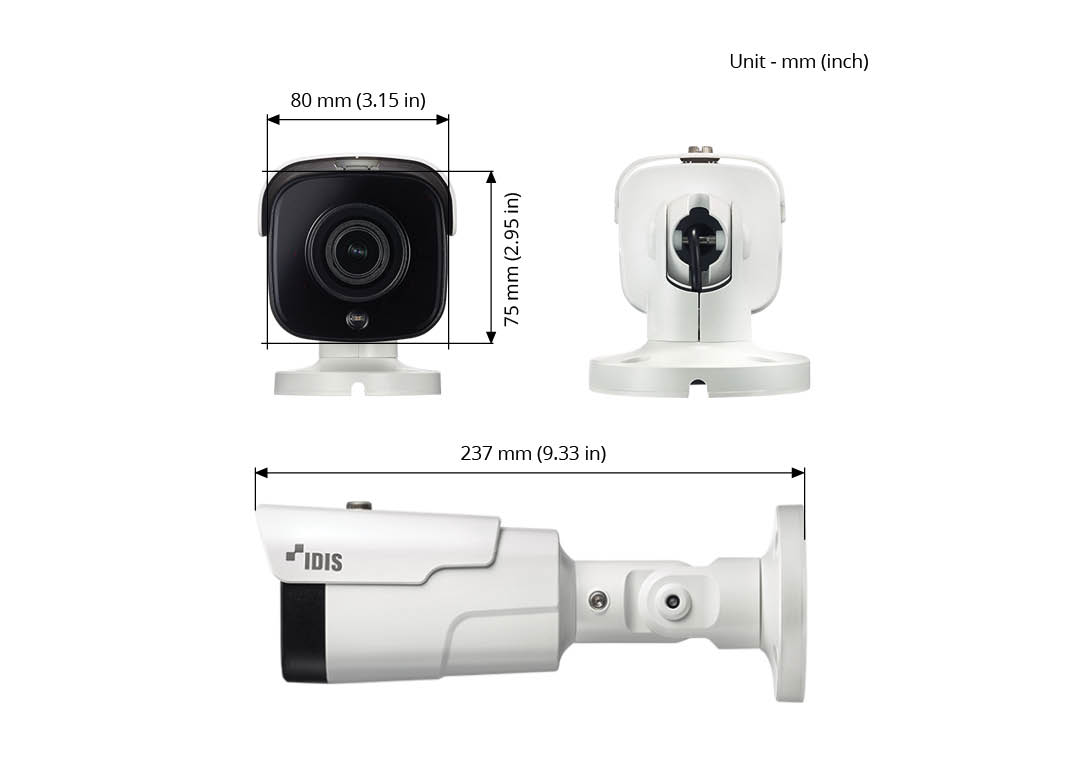

Dimension

Technical Specifications

Video
Image Sensor 1/2.8″ CMOS
Max. Resolution 3840 x 2160
Scanning Mode Progressive Scan
Lens Type Motorized Vari-focal
Focal Length 2.7 ~ 13.5mm
Aperture F1.8 ~ F3.32
Iris Control DC Iris
Angular Field of View Wide : 110.6º(H) 57.3º(V) 134.1º(D)
Tele : 32.6º(H) 18.3º(V) 37.4(D)
Min. Illumination COLOR : 0.2 lux @ F1.8
B/W : 0 lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 40 m / 131.2 ft (6 ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation BLC
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bitrate Control H.265 – CBR / VBR, H.264 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate 30ips : 3840×2160
15ips : 3840×2160(WDR)
Supported Resolution 3840×2160, 1920×1080, 1280×720, 640×360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2
Security Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec) Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio Alarm Yes
Audio In / Out 1 / 1
Alarm In / Out 1 / 1
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP67, Heater
Operating Temperature -40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source 12VDC, PoE, IEEE 802.3af(Class 3)
Power Consumption 12V=, 1.1A, 13.2W
PoE, IEEE 802.3af(Class 3), 11.7W
Approval FCC, CE, KC
Mechanical
Dimensions 80mm X 75mm X 237mm(3.15″ x 2.95″ x 9.33″)
Weight 1.01kg (2.22lb)

Video

Accessory Configuration

Installation environment Accessory configuration

Wall

Junction Box

Model:DA-JB4150

or

Junction Box

Model:DA-JB2400

Celling

Junction Box

Model:DA-JB4150

or

Junction Box

Model:DA-JB2400

Pole

Junction Box

Model:DA-JB4150

+

Pole Mount

Model:DA-LM2000

or

Pole Mount

Model:DA-LM2000

+

Junction Box

Model:DA-JB2400

Corner

Corner Mount

Model: DA-RM2000

+

Junction Box

Model: DA-JB2400

or

Junction Box

Model: DA-JB4150

+

Corner Mount

Model: DA-RM2000
