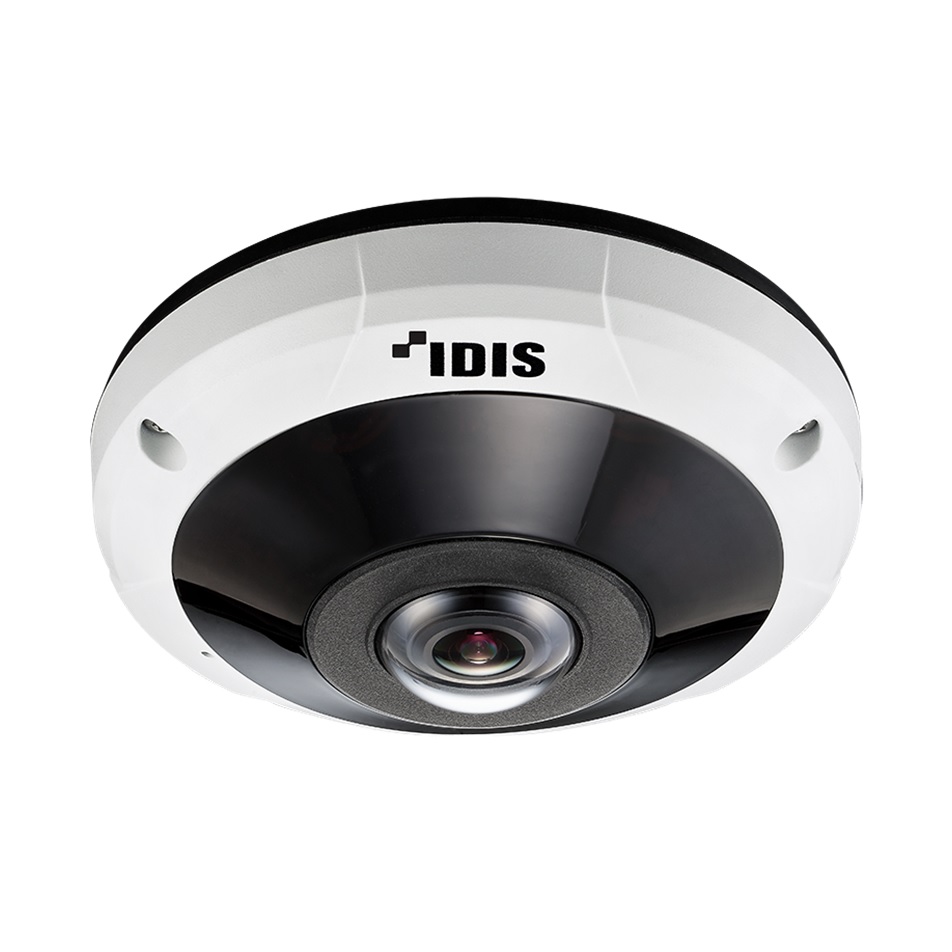

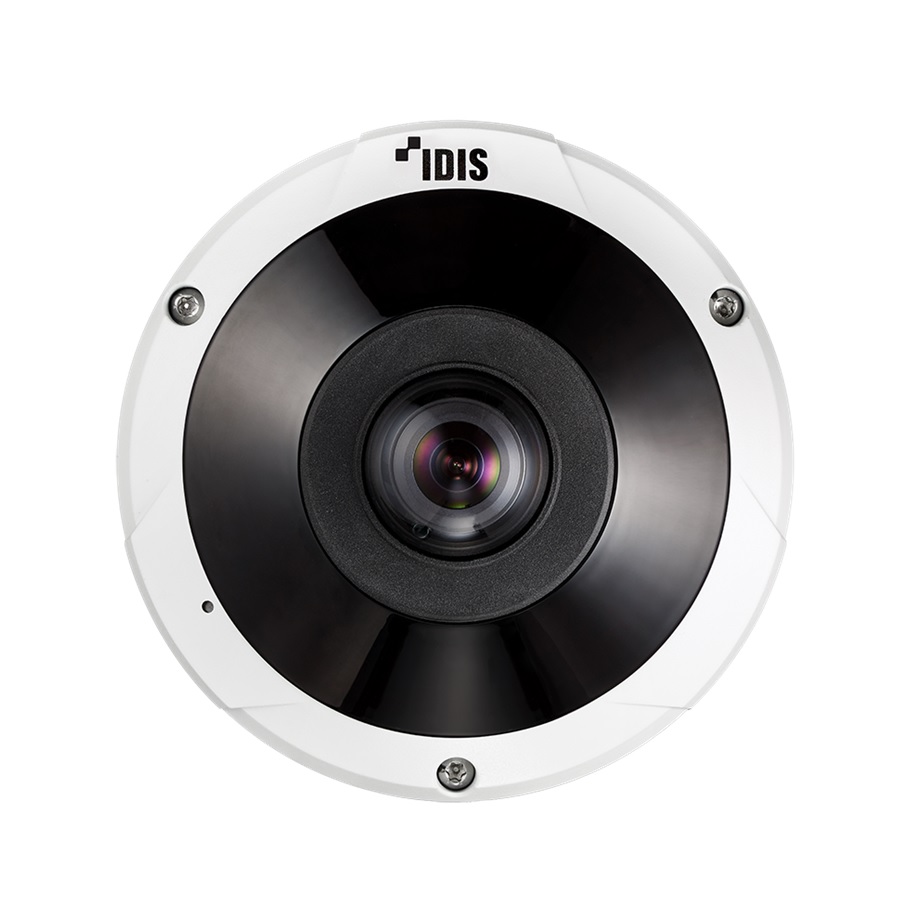

IDIS DC-Y6516WRX 5MP Vandal-Resistant IR Fisheye Camera, NDAA Compliant


The IDIS DC-Y6516WRX 5MP Vandal-Resistant IR Fisheye Camera offers exceptional panoramic surveillance with its 180-degree fisheye lens, capturing a broad view with minimal blind spots. It features a 5MP resolution, ensuring high-quality images and video, making it ideal for monitoring large areas such as lobbies, parking lots, or retail spaces. The camera’s built-in IR LEDs allow for clear visibility even in complete darkness, extending up to 20 meters. Its vandal-resistant IK10-rated housing ensures durability against impact, making it suitable for high-risk environments. This model supports H.265 compression, reducing bandwidth and storage requirements while maintaining high image quality. With its true wide dynamic range (WDR) of 120dB, the camera excels in challenging lighting conditions by balancing bright and dark areas in a scene. The camera is IP67-rated, offering protection from dust and water, making it ideal for both indoor and outdoor installations. It also features advanced motion detection and tampering alarms for enhanced security. The DC-Y6516WRX integrates seamlessly with the IDIS VMS (Video Management Software), providing users with comprehensive management and monitoring capabilities. Additionally, it supports two-way audio, allowing real-time communication through the camera.

Key Features

  • Easy installation with DirectIP NVR
  • 5MP (2560 x 2048) resolution
  • Fixed-focal lens (f=1.5mm)
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 supports
  • PoE (IEEE 802.3af Class 3), 12V DC
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (20m / 65.6ft, 4 units)
  • Various viewing composition, 6 dewarping view modes
  • Supports ONVIF

DC-Y6516WRX Datasheet

$922.00 inc GST +3 Year Warranty & Support


         5MP

   Fixed Lens

  Weather Proof

       IR LED

   True WDR

Easy Installation

  Two-way audio

         IP67

         PoE

       ONVIF

NDAA Compliant

    IR Cut Filter Removable



The IDIS DC-Y6516WRX is a 5MP vandal-resistant IR fisheye camera designed to deliver high-quality surveillance with a 180° field of view, making it ideal for monitoring wide areas without blind spots. Equipped with a 1.4mm fixed lens, this camera captures crystal-clear images at 5 megapixels, ensuring detailed video output even in challenging lighting conditions. The built-in IR LEDs provide effective night vision up to 20 meters, allowing for reliable round-the-clock monitoring in low-light environments. With IK10 and IP66 ratings, the DC-Y6516WRX is engineered for robust protection against vandalism and harsh weather, ensuring longevity and durability in both indoor and outdoor installations. It also supports H.265 video compression, significantly reducing bandwidth and storage requirements while maintaining superior video quality. The camera is equipped with advanced analytics, including motion detection, tampering alarms, and heat mapping, enhancing its security capabilities. Its fisheye dewarping function allows users to navigate and zoom into specific areas of the scene for detailed viewing, eliminating distortions typically associated with fisheye lenses. PoE (Power over Ethernet) support simplifies installation by reducing the need for additional power cables, making the setup process more efficient. This versatile camera is an excellent choice for various security applications, such as retail stores, schools, offices, and large public spaces, where comprehensive surveillance is critical. Designed for seamless integration with the IDIS Total Solution, the DC-Y6516WRX ensures optimal performance and reliability within a cohesive security ecosystem.

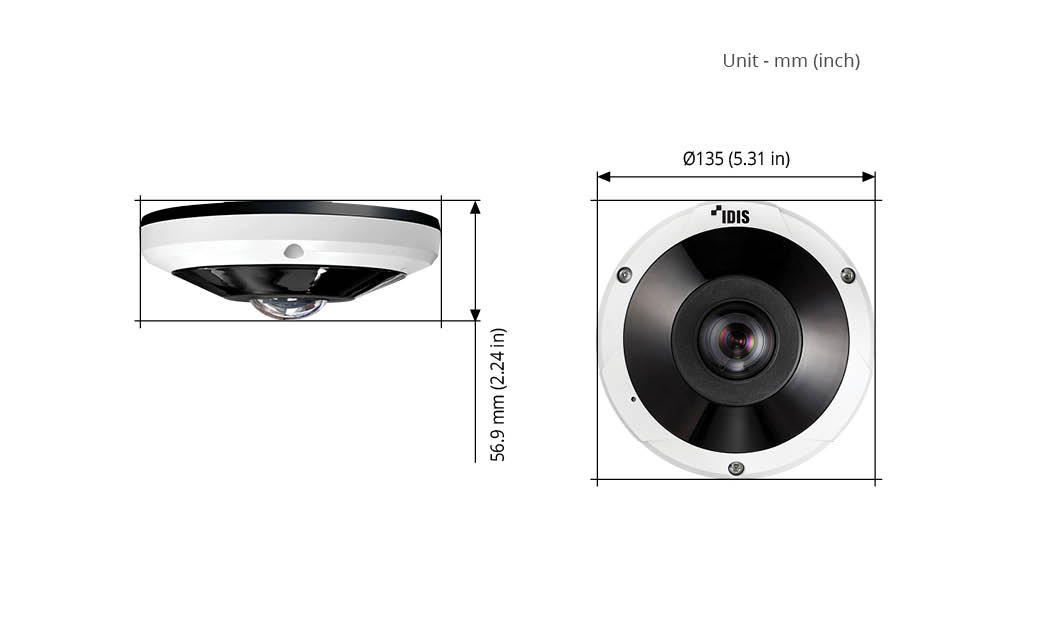

Dimension

Technical Specifications

Video
Image Sensor 1/1.8” CMOS
Max. Resolution 2560 x 2048
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length 1.5mm
Aperture F1.8
Iris Control Fixed Iris
Angular Field of View 180º(H), 180º(V), 180º(D)
Min. Illumination Color : 0.15 lux @ F1.8
B/W : 0 lux @ (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 20m / 65.6ft (4ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control), 3DNR Level, WDR Level
Backlight Compensation
Mirroring / Pivot Horizontal / Vertical
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap
Viewing Composition 1O, 1P, 1P2R, 2P, 4R, 1O7R
Video Out
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bitrate Control H.264 – CBR / VBR, H.265 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate 30ips : 2560 x 2048 (WDR)
Supported Resolution 2560×2048, 1920×1536, 2560×1024, 1280×1024, 640×512, 640×256
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec) Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone, Heatmap
Event Notification Remote S/W, Email (with Image)
Audio Alarm Yes
Audio In / Out 1(Built In MIC)+1 / 1
Alarm In / Out 1 / 1
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP67
Operating Temperature -30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source 12VDC, PoE (IEEE 802.3af Class 3)
Power Consumption 12V=, 0.92A, 11W
PoE (IEEE 802.3af Class 3), 10.3W
Approval FCC, CE, KC
Mechanical
Dimensions Ø135 x 56.9mm(Ø5.31″ x 2.24″)
Weight 0.670kg (1.47 lb)

Video

Accessory Configuration

Installation environment Accessory configuration

Wall

Tilt Mount

Model:DA-TM4200

or

MOUNT ADAPTER

Model:DA-MA4200

+

WALL MOUNT

Model:DA-WM2050

or

JUNCTION BOX

Model:DA-JB4600

Celling

Tilt Mount

Model:DA-TM4200

or

MOUNT ADAPTER

Model:DA-MA4200

+

CEILING MOUNT

Model:DA-CM2050

or

JUNCTION BOX

Model:DA-JB4600

Pole

MOUNT ADAPTER

Model:DA-MA4200

+

WALL MOUNT

Model:DA-WM2050

+

Pole Mount

Model:DA-LM2000

or

JUNCTION BOX

Model:DA-JB4600

+

Pole Mount

Model:DA-LM2000

or

Tilt Mount

Model:DA-TM4200

+

Pole Mount

Model:DA-LM2000

Corner

MOUNT ADAPTER

Model: DA-MA4200

+

WALL MOUNT

Model: DA-WM2050

+

Corner Mount

Model: DA-RM2000

or

JUNCTION BOX

Model: DA-JB4600

+

Corner Mount

Model: DA-RM2000

or

Tilt Mount

Model: DA-TM4200

+

Corner Mount

Model: DA-RM2000
