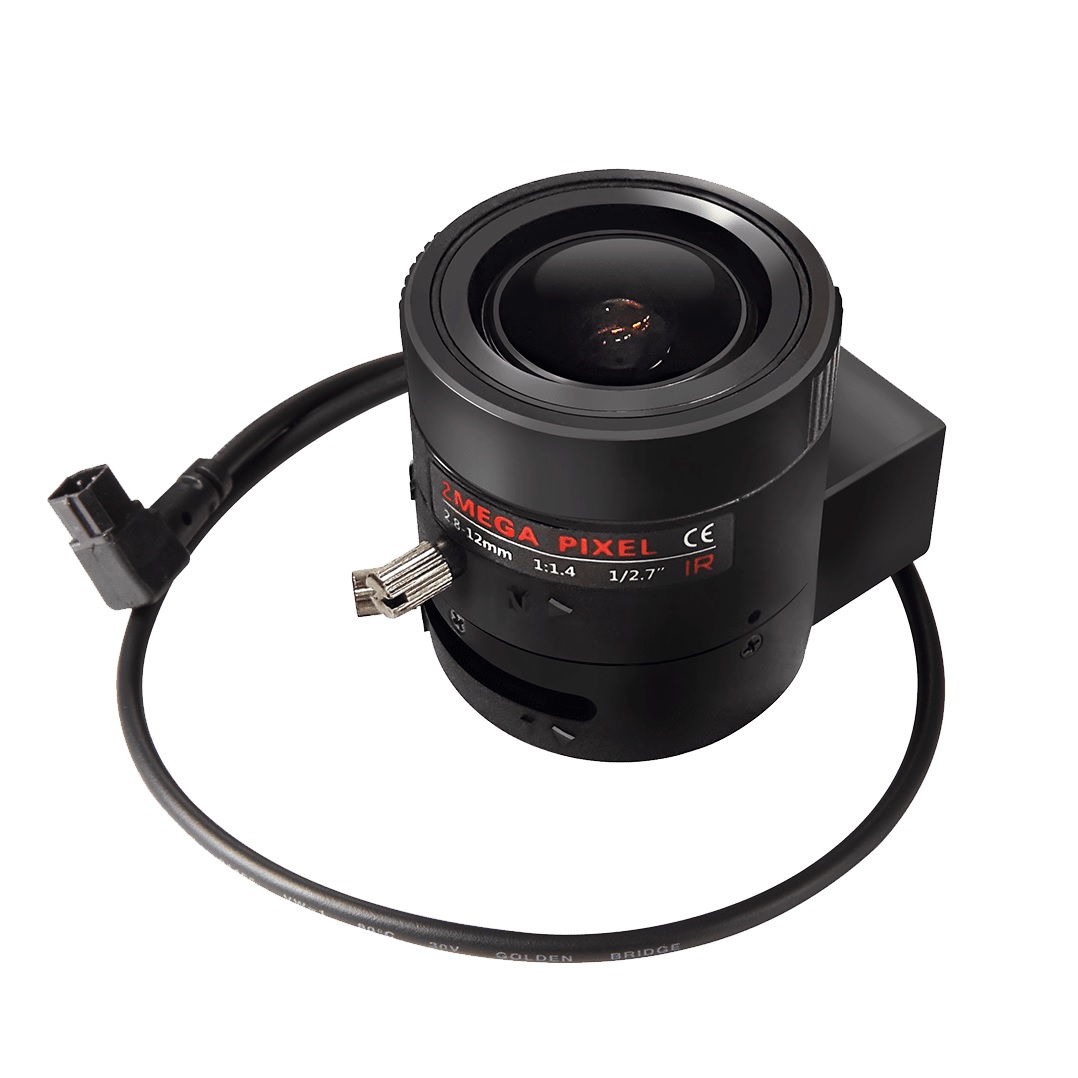

IDIS DCL-M2812D Vari-focal 2MP 2.8-12mm Lens


The IDIS DCL-M2812D is a 2MP vari-focal lens designed for high-performance security cameras. With a focal length range of 2.8mm to 12mm, it provides flexible viewing angles for various surveillance applications, allowing precise focus adjustments from wide to narrow fields of view. This lens is optimized for Full HD resolution, ensuring crisp and clear image quality even in challenging lighting conditions. Its robust construction enhances durability, making it suitable for both indoor and outdoor environments. Additionally, the DCL-M2812D lens is compatible with IDIS cameras, ensuring seamless integration and maximizing the overall system performance.

Key Features

  • Vari-focal DC-Iris 2MP IR
  • 1/2.7

DCL-M2812D Datasheet

$67.00 inc GST +3 Year Warranty & Support

The IDIS DCL-M2812D is a versatile 2MP vari-focal lens that offers an adjustable focal length ranging from 2.8mm to 12mm, allowing users to tailor their surveillance setup to specific monitoring needs. Designed to deliver exceptional image clarity and detail, this lens supports Full HD resolution, making it ideal for a wide range of security applications. Its advanced optical design minimizes distortion and ensures high performance in varying lighting conditions, contributing to reliable surveillance day or night. Built to withstand the rigors of outdoor environments, the lens features a robust construction that ensures longevity and resilience against the elements. Furthermore, the DCL-M2812D is compatible with a variety of IDIS cameras, providing an integrated solution that enhances overall system efficacy.

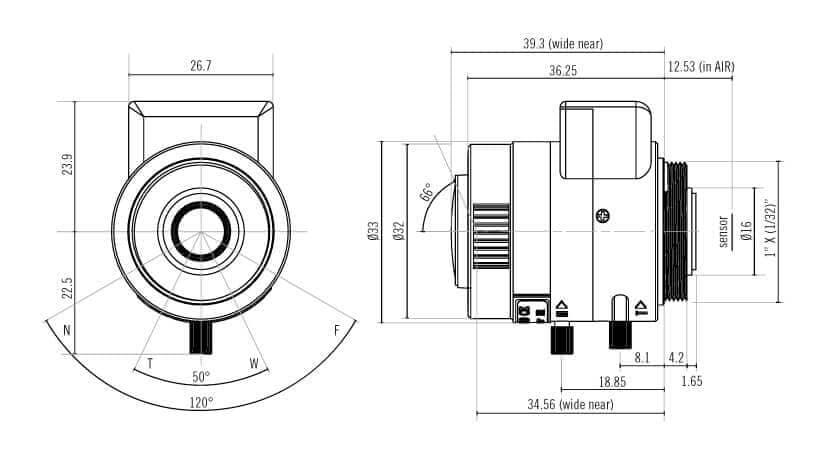

Dimension

Technical Specifications

Imager Size 1/2.7
Mount Type CS
Focal Length 2.8 ~ 12mm
Aperture Range F/1.4 ~ Close
Field of View Wide 106°(H)
Tele 32°(H)
M.O.D. 0.3m
IRIS Control DC IRIS
Dimension Φ33 x 40.45
Flange Back Length 12.5mm
Weight 40g
Operating Temerature -20°C ~ 60°C
SKU: DCL-M2812D Categories: , Tags: , ,
