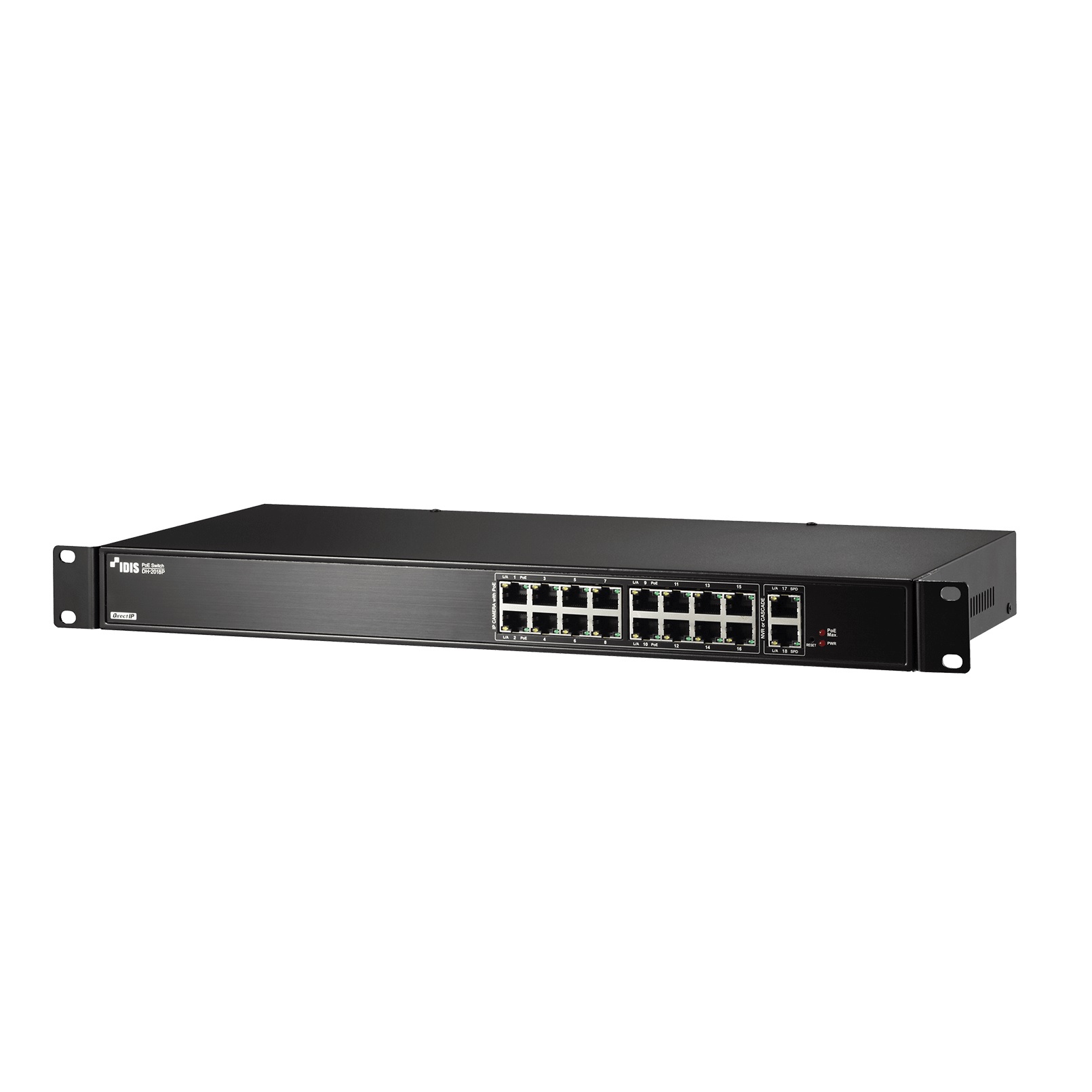

IDIS DH-2018P DirectIP® 16Port Unmanaged PoE Switch


The DH-2018P DirectIP® PoE Switch is designed to facilitate seamless connectivity for IP-based surveillance systems, supporting both power and data transmission over a single cable. With 16 ports that provide Power over Ethernet (PoE), this switch ensures reliable energy delivery to various devices, such as cameras and access points, simplifying installation and reducing cabling costs. It supports a comprehensive bandwidth of up to 7.2 Gbps, enabling efficient data transfer and enhancing overall system performance. The switch is equipped with advanced features like IEEE 802.3at/af PoE support, ensuring compatibility with a wide range of PoE devices. Additionally, its robust design, along with built-in surge protection and cooling mechanisms, ensures reliable operation in various environments, making it an ideal solution for demanding surveillance applications.

Key Features

  • Individual port data transmission to DirectIP® NVR
  • PoE (IEEE 802.3af, IEEE 802.3at) compliant
  • Maximum per-device PoE delivery of 140W available for 1~16 RJ45 ports
  • Central power control for greater network utility
  • Supports 16 RJ45 ports

DH-2018P Datasheet

$879.00 inc GST +3 Year Warranty & Support

The DH-2018P DirectIP® PoE Switch is designed to provide seamless connectivity for IP cameras and other network devices, offering a total of 16 PoE ports to efficiently power and transmit data simultaneously. With a power budget of 140W, this switch ensures reliable operation even with high-power devices, making it ideal for extensive surveillance systems. The unit features advanced network management capabilities, including VLAN support and QoS, which optimize bandwidth usage and enhance video streaming quality. Its compact and robust design ensures easy installation in various environments, while the fanless operation allows for silent performance, making it suitable for noise-sensitive locations. Additionally, the DH-2018P supports IEEE 802.3af/at standards, ensuring compatibility with a wide range of PoE-enabled devices, providing a reliable solution for expanding your surveillance infrastructure.

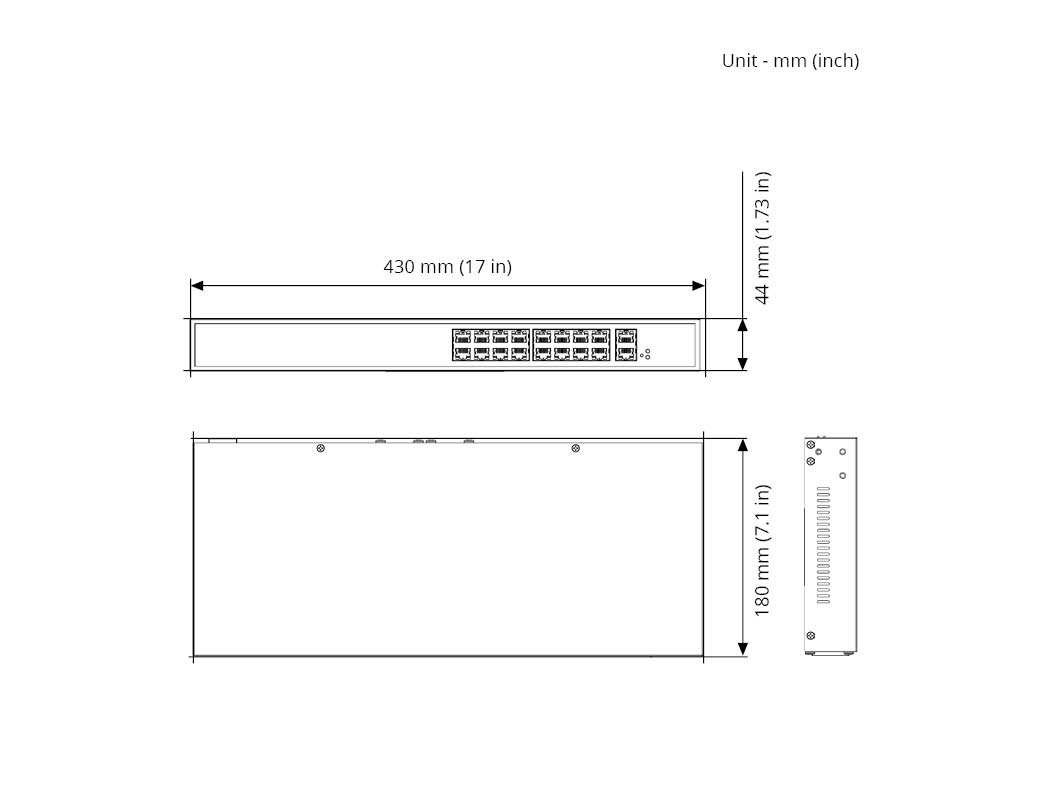

Dimension

Technical Specifications

Network
Service Port 16 RJ45 Connectors
(10/100BASE-T)
Uplink Port 2 RJ45 Connectors
(10/100/1000BASE-T)
Supported Standards IEEE 802.3af-2003 / IEEE 802.3at-2009
PD Connection Up to 16 IEEE 802.3af PDs
or up to 4 IEEE 802.3at PDs
PSE Power 140W
General
Switching Capacity 7.2Gbps
Memory 256MB SDRAM, 32MB Flash
Environmental
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Electrical
Power Input 100-240V~, 50/60Hz, 2.0-1.0A, 160W
Power Consumption 160W
Approval FCC, CE, KC, UL, CB
Mechanical
Dimensions (W x H x D) 430mm x 44mm x 180mm (17.0″ x 1.7″ x 7.1″)
Weight 2.05Kg (4.52lb)

Video
