Reliability
Easy Installation
Scalability
NDAA Compliant
Powerful Performance

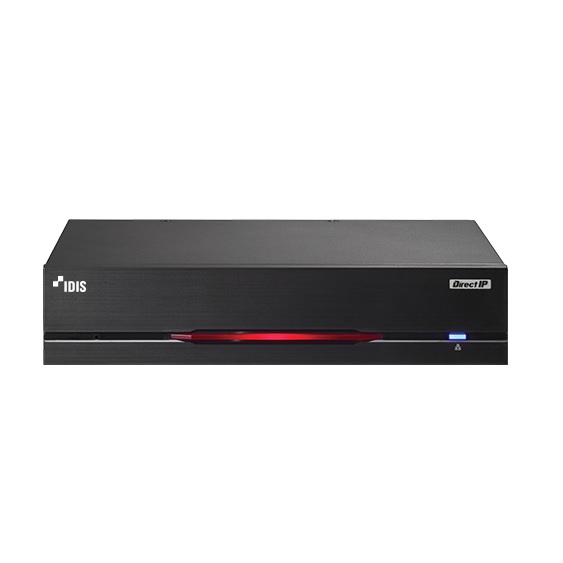

The DP-DD1316 DirectIP™ 16-channel Decoder is an advanced video decoding solution designed to efficiently manage multiple high-definition video streams. Featuring real-time decoding capabilities, it supports up to 16 channels of 1080p video simultaneously, ensuring smooth playback without lag. Its user-friendly interface allows for easy navigation and control, making it suitable for a variety of surveillance applications, from small businesses to large-scale security installations. The decoder is also equipped with advanced features such as multi-display options, enabling users to customize their viewing layouts for optimal surveillance coverage. With its robust build and reliable performance, the DP-DD1316 is an essential component for any comprehensive security system, providing seamless integration with IDIS’s DirectIP™ technology.

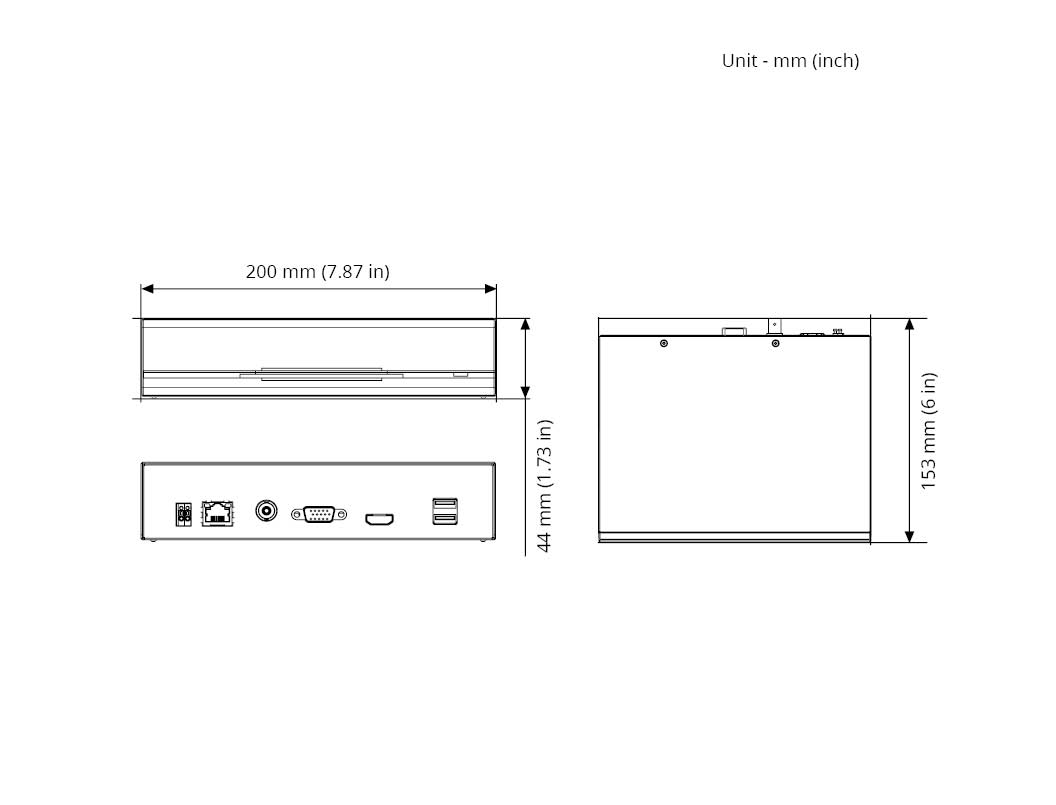

Dimension
Technical Specifications
Video | |
Video Inputs | 16 IP Channels |
Max. Resolution | Up to 12MP (Depending on IP Camera) |
Supported Device | IDIS IP Camera |
Video Outputs | 1 HDMI, 1 VGA, 1 CVBS |
Display Resolution | HDMI : 3840×2160, 1920×1200, 1920×1080, 1680×1050, 1600×1200 VGA : 1920×1200, 1920×1080, 1680×1050, 1600×1200 CVBS : 720×480(NTSC) , 720×576(PAL) |
Display Speed | Up to 480ips |
Network | |
Video Compression | H.265, H.264 |
Max. Incoming Throughput | 90Mbps |
Ethernet | Gigabit Ethernet x1 |
Environmental | |
Operating Temperature | 0°C ~ +40°C (32℉ ~ 104℉) |
Operating Humidity | 0% ~ 90% |
Electrical | |
Power Source | 12VDC, PoE |
Power Consumption | 12V=, 1.4A, 16.8W PoE, IEEE 802.3at(Class 4) |
Approval | FCC, CE, KC |
Mechanical | |
Dimensions | 200mm x 44mm x 153mm (7.9″ x 1.7″ x 6.0″) |
Weight | 0.78kg (1.72lb) |
