Reliability
Easy Installation
Scalability
NDAA Compliant
Powerful Performance

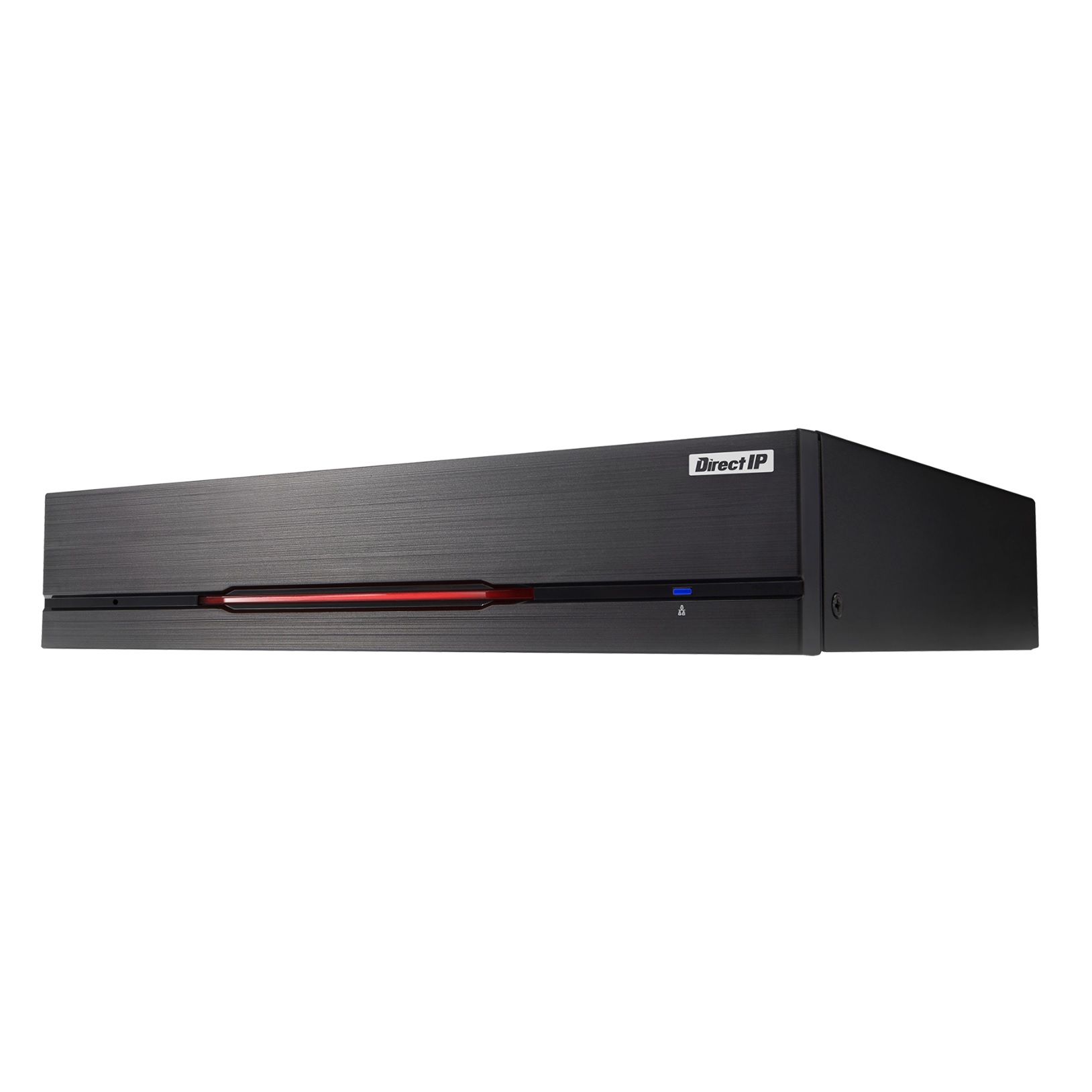

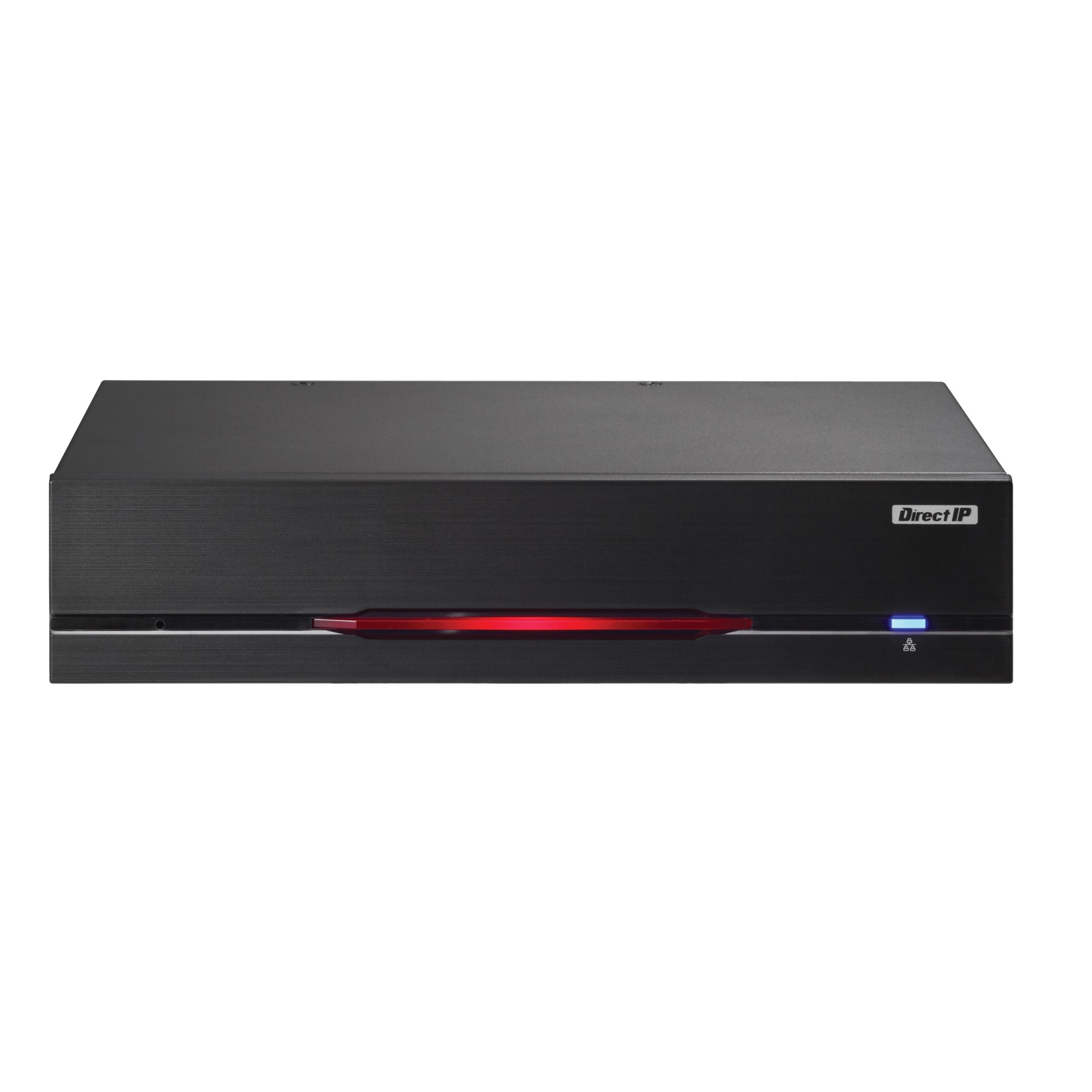

The IDIS DP-HE1201 HDMI/VGA Video Encoder is a versatile device designed to convert HDMI and VGA signals into IP streams for network-based transmission and recording. It supports resolutions up to 1080p, ensuring high-definition video quality. The encoder is equipped with both HDMI and VGA input ports, allowing flexibility in connecting different types of video sources, such as cameras, computers, or other display devices. It is highly compatible with IDIS’s own DirectIP solutions, enhancing integration with existing surveillance systems. The device offers H.264 and MJPEG compression formats, providing efficient video storage and streaming. It supports real-time video encoding at up to 30 frames per second, ensuring smooth video playback without lag. With its compact and lightweight design, the DP-HE1201 is easy to install and can be used in various settings, including commercial and industrial applications. It includes user-friendly configuration options, accessible through a web interface, making it simple to operate and maintain. The encoder also offers advanced security features like password protection to prevent unauthorized access. The IDIS DP-HE1201 is a reliable and efficient solution for converting HDMI and VGA signals into IP-based video streams for professional surveillance systems.

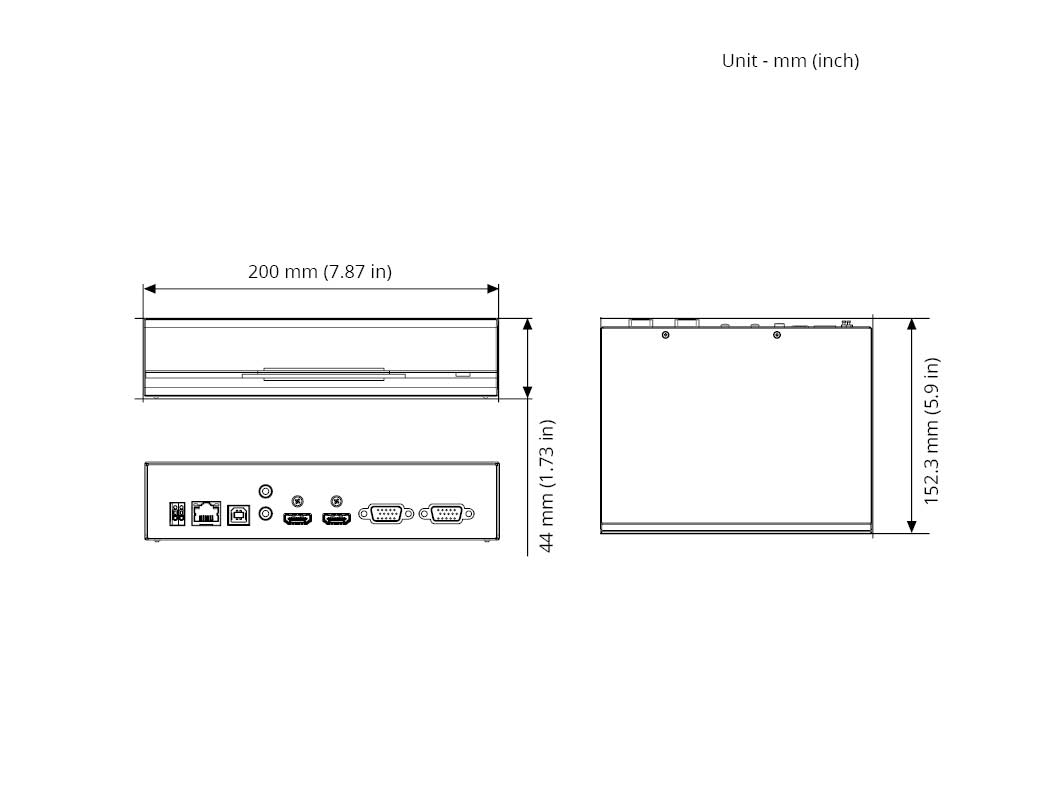

Dimension
Technical Specifications
Video | |

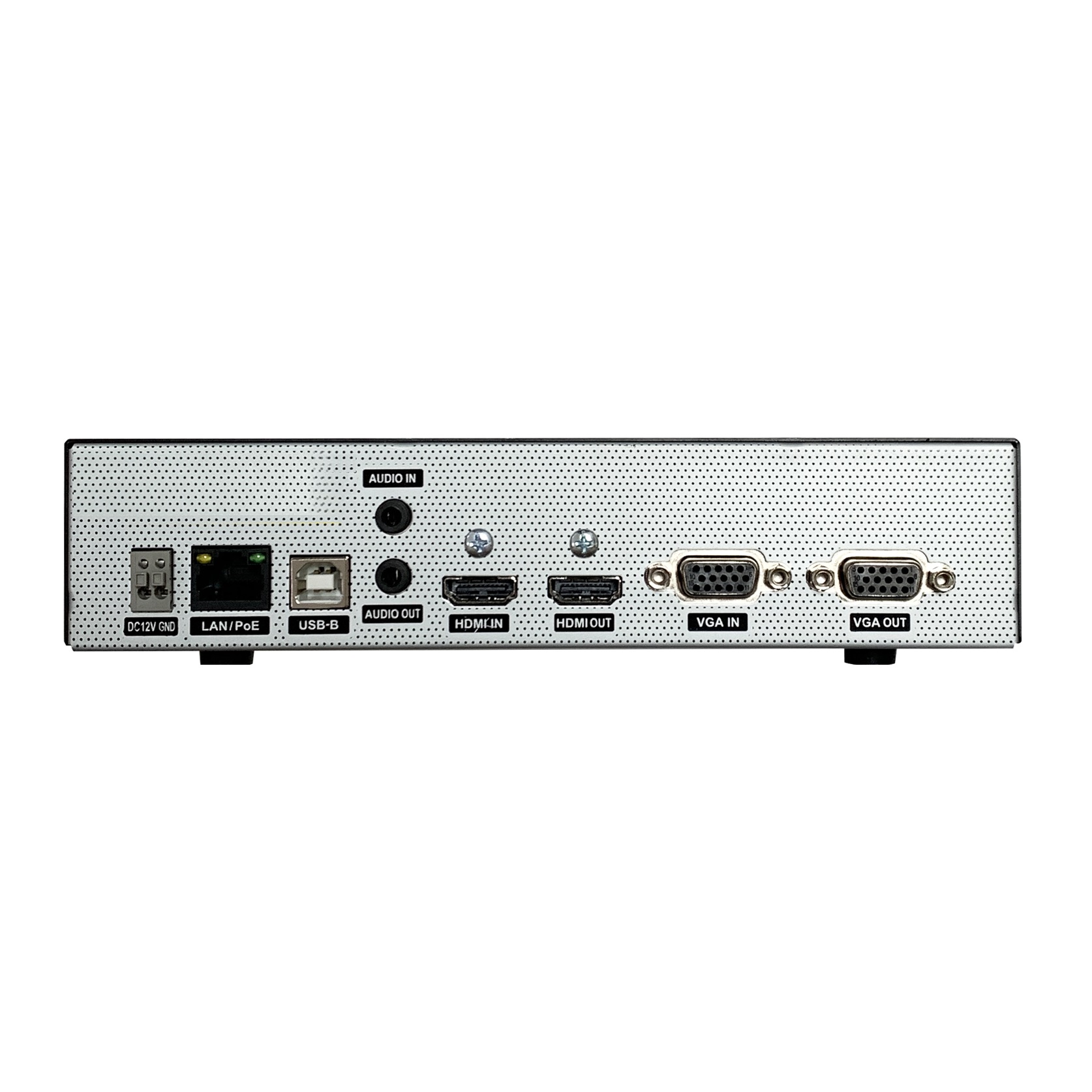

Video Inputs | 1 HDMI, 1 VGA |
Max. Resolution | 3840 x 2160 |
Network | |
Video Compression | H.265, H.264 (MP), M-JPEG |
Max. Frame Rate | 30ips : 3840 x 2160 |
Supported Resolution | 3840×2160, 1920×1080, 1280×720, 704×480, 640×360 |
Multi-video Streaming | Quadruple Streaming |
Ethernet | RJ45 (10/100BASE-T) |
Edge Storage | – |
Alarm and Event | |
Trigger Event | Motion Detection, Audio detection, Tampering, Trip Zone |
Event Notification | Remote S/W, Email (with Image) |
Interface | |
Audio In / Out | 1 / 1 |
USB | 1 USB type B (Remote mouse and keyboard control) |
Environmental | |
Operating Temperature | 0°C ~ +40°C (32°F ~ +104°F) |
Operating Humidity | 0% ~ 90% |
Electrical | |
Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
Power Consumption | 12V= 0.95A, 11.4W PoE, IEEE 802.3af(Class 3) |
Approval | FCC, CE, KC |
Mechanical | |
Dimensions | 200mm x 44mm x 152.3mm (7.9″ x 1.7″ x 6.0″) |
Weight | 0.8kg (1.76lb) |
